Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | Made in china |
| Brand Name: | SCXK |
| Certification: | CE,ROHS, FCC.UL.CUL |
| Model Number: | SCXK-P6 |
| Minimum Order Quantity: | one cabinet sand one module can be avaiable. |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, flight case, paper box can be available( All kinds of the box will guarantee the safety of the led display |
| Delivery Time: | within 7-10days, the led disdplay can be sent to you after your payment |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Iron And Steel Cabinet | Module Size: | 576MM*576MM |
|---|---|---|---|
| Led Light: | SMD2727 | Led Chip: | Epistar |
| Color: | Full Color | Dot Density: | 43222dots/sqm |
| Highlight: | full color outdoor led display,outdoor full color led screen |
||
High quality chip SMD2727 Shopping Mall Stadium outdoor Full Color LED video billboard fashion Train station LED Displays
We utilize advanced production lines and employ 180-200 skilled workers. They are well versed in all kinds of LED display products. With DIP and SMD production facilities, the delivery time is very fast. Each production line has its own quality control personnel. We can guarantee that every production will meet your requirements.
Our engineers are involved in the design of all projects and take care of all the details. When the LED display products are finished, they will check the quality and test them directly. As a result, the quality will meet all standards.
We still have the finish workshop, the workers just be responsible for all assemble question.
Specification as follows
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 6mm | |||||||
| Module Size | 192mm x192mm | ||||||||
| Module Resolution | 64*32dots | ||||||||
| LED Cabinet | Cabinet Size | 512mmx512mm | |||||||
| Cabinet Resolution | 128dotsx128dots | ||||||||
| Cabinets Material | iron and steel cabinet | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >2000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 4m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 22kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃-60℃ | ||||||||
| Drive Mode | 1/32 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) Led studio | ||||||||
| Software | LED studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Led module we have
| Indoor outdoor full color SMD 3 in 1 led display | |||||||
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order | |||||||
After-sales service. We can show you how to use, adjust the screen and replace Boken modules with spare parts. For asynchronous control we use Onbon or Xixun control systems.

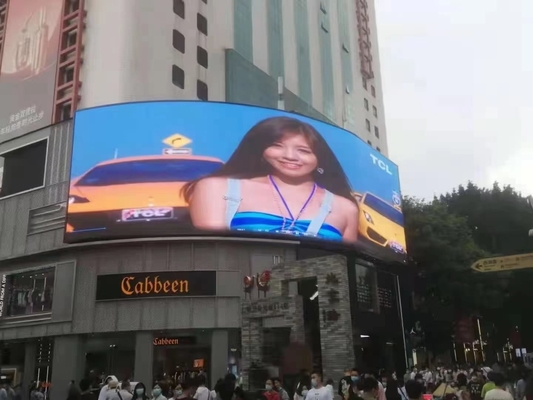

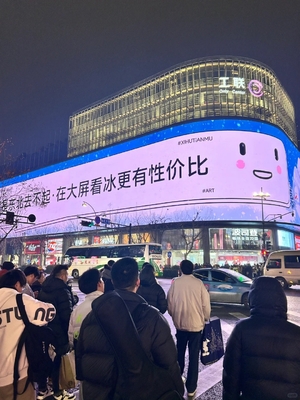

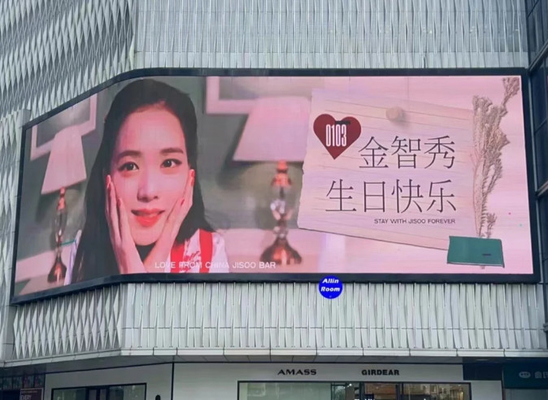

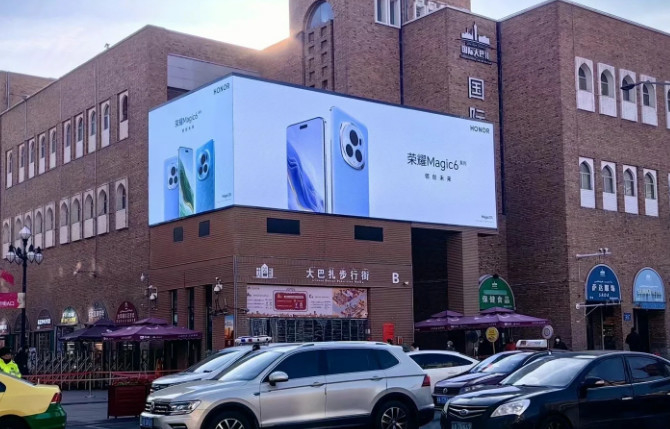

Project cas
We have prepared many different programs for overseas markets. If you have any questions or confusions, please feel free to contact us and we will provide you with all kinds of help and support.
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
FAQ
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and after-sales service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can provide a complete set of complete solutions for your project!
After-sales service. We can guide you on how to use, adjust the screen, replace Boken modules and spare parts.
In addition, we can send technicians to your country to solve problems. In general, our LED displays will not have major problems during the warranty period!
Q3. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
Q4. What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
For asynchronous control We use Onbon, or Xixun control system.
