Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P10 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 3-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Outdoor, Semi-outdoor, Outdoor Fixed, Outdoor Rental | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 320*160mm | Media Available:: | Datasheet, Photo, Other |
| Use: | Advertising Publish, Retail Store | Specification: | Video Wall, Led Display |
| Product Name:: | P10 Large LED Advertising Billboard LED Display | LED Chip:: | Epistar |
| Port Type:: | HUB-75D/B | Life Span:: | 100000hours |
| Scan Method:: | 1/4scan | ||
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
SCX LED Full Color SMD3535 Outdoor P10 LED Advertising Billboard Signs Digital Outdoor LED Signage
Our Advantages
1. 24 Hours after sales support, professional support, manual book, and remote control if customer need it, not only sell display to you,but more service.
2. Surely screens from factory are 100% tested and no any quality problem, we will be responsibile for it if have any quality problem.
3. We offer 2 years warranty to our product.
4. Customized design is available.
5. The BEST PRICE. You are welcome to contact us for a free project evaluation. Thank you
♦ Technical specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 16x16 | |||||||||||||
| Module size/mm | 160x160 | |||||||||||||
| View distance | 4-250m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

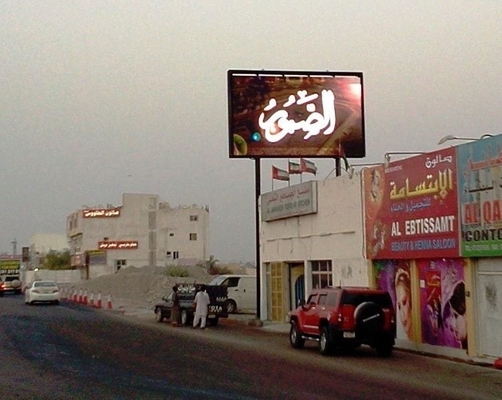

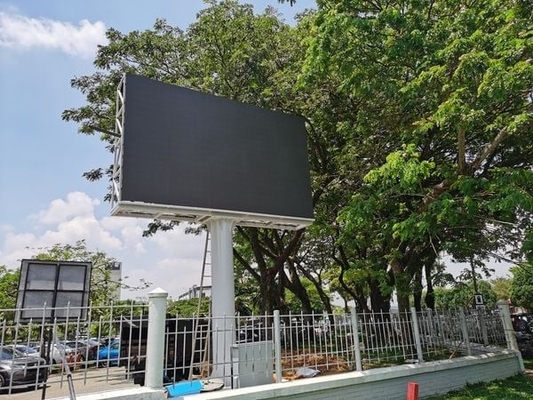

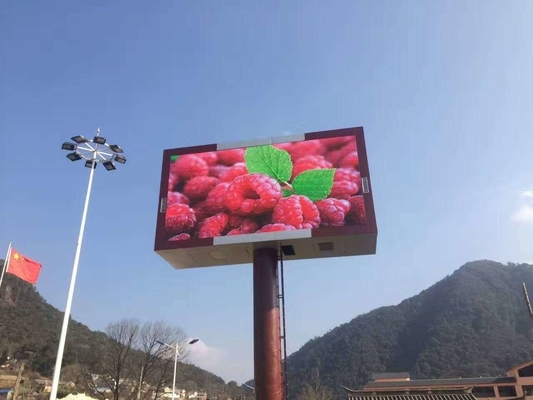

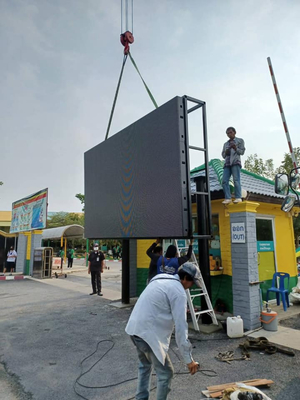

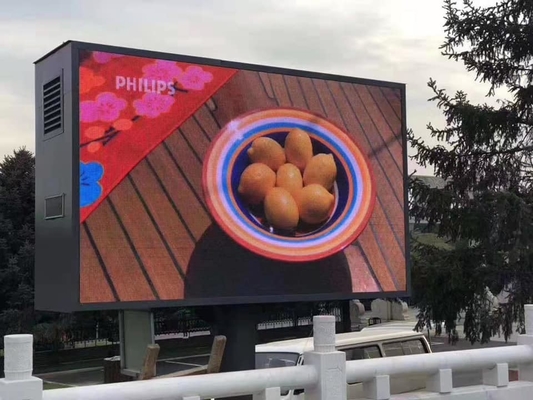

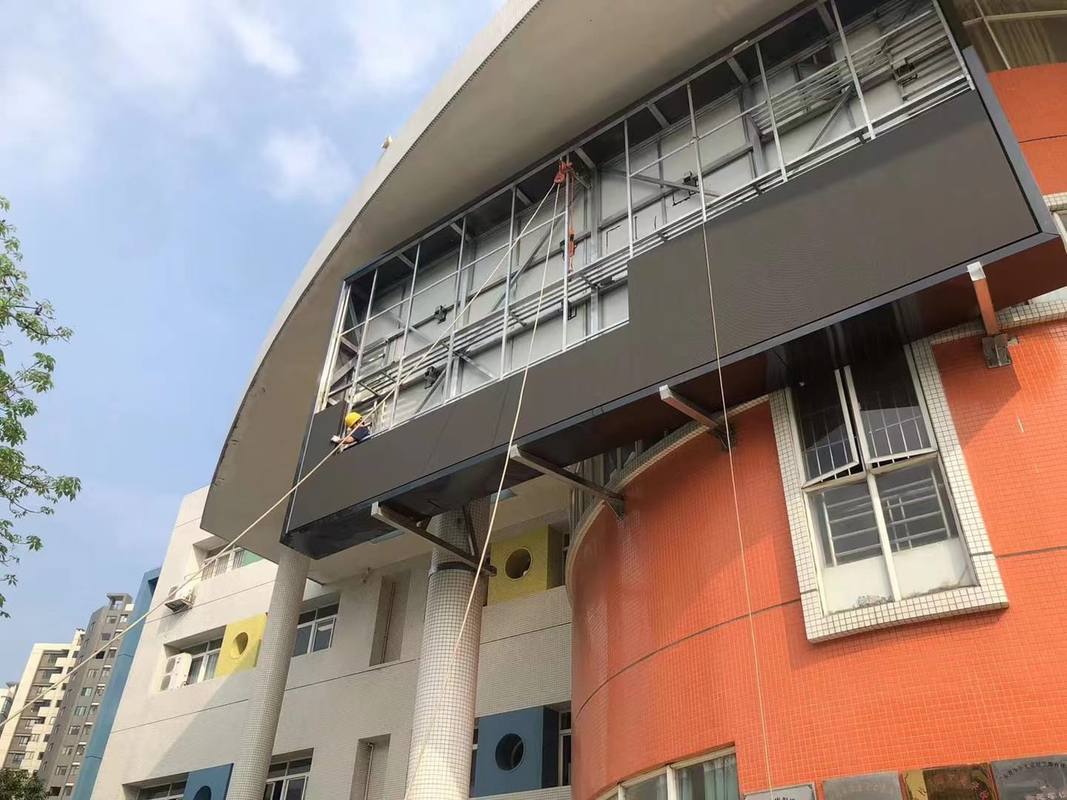

Our Case
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Pre-sale service:
1) Reply enquiries in 24 hours.
2) Provide unique and professional solutions based on customer's requirement.
3) Data sheet and samples offer.
4) Other services, such as special packing design, factory visiting and so on.
In-sale service:
1) Tracking report in producing.
2) Photos and videos as per customer's requirement.
After-sale service:
1) Warranty period: 1 years after shipment.
2) Customer satisfaction tracking report.
3) Free technician training.
4) Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
1 Q: Are you a factory or trading company?
A: We are a OEM/ODM factory.
2 Q:What pixel pitch can you provide? And what product do you have?
A :Indoor Series from P0.9 to P10, outdoor from P2.5 to 100. Vision mainly sell, indoor and outdoor rental led display, LED Sphere, LED cube,LED transparent and customized led etc.
3 Q;What kind of sending/receiving cards are used in this system
A: Nova/Colorlight/Linsn
4 Q:What is the operating power of the system
A:110 /220V
5 Q:What is the frame update frequency
A:60HZ
6 Q:What is the refresh rate?
A:1920HZ and 3840HZ, depend on client’s need
7 Q:What is your current lead time?
A: generally is 15 to 20 days, if customized product, need to confirm before order.
8 Q: What’s your warranty of your products
A: Economic series product is 3 years, high quality is 5 years.
