Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD P8 |
| Minimum Order Quantity: | 18 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case ,flight case,it is up to you. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4300 sqm month |
| Application: | Outdoor, Airport, Station, Highway, Roadside, Plaza, | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 960mm X 960mm, 960 X 960mm | Pixel Pitch:: | 8mm |
| Supplier Type:: | Original Manufacturer, ODM, Retailer, OEM | Use:: | Advertising Publish, Retail Store, Shopping Mal |
| Specification: | Video Wall | Module Size:: | 320 X 160 Mm |
| Brightness: | 6000 Nits | Certificate:: | CE, RoHS, FCC |
| Warranty:: | 3 Years | ||
| High Light: | full color led signs outdoor,full color outdoor led display |
||
SCX LED Large Outdoor Fixed P8 Led Panel Advertising Display Screen Ip65 Waterproof Commercial Led Video Wall
Outdoor led display module Special Features
1.High brightness and stable performance lead long lifespan and low power consumption.
2.Accurate color uniformity and smoother, flicker-free video displaying.
3.Wide viewing angle, high contrast, high brightness (adjustable), high intensity (14bit gradation processing), high refresh, softer image, display life like images to meet the high-speed motion picture display.
4.LED display production capacity per day: 50,000 pcs/day.
5.Strong R&D strength, 38000 square meter standard workshop.
Outdoor module Life is long, Stable, Save, High brightness
1.High protective dust waterproof and leakage.
2.Protection grade IP65 cabinets guidance before and after the glue tank panel cover circuit module to ensure worry-free.
3.Lamp bead reverse polarity, higher brightness, face to face with fierce can clear display screen.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
♦ Product specification
| outdoor P8 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | ≥6m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | constant driving static | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <650W | |||||||||||||
| Average power:/㎡ | <260W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

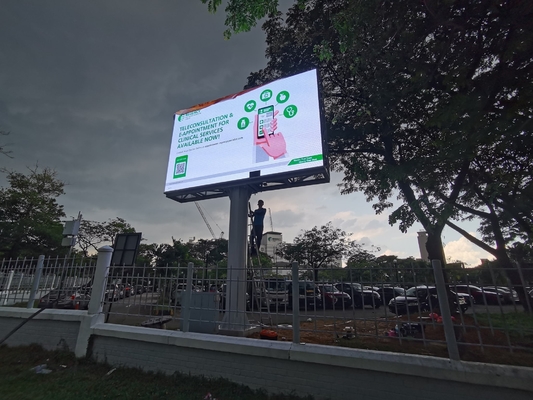

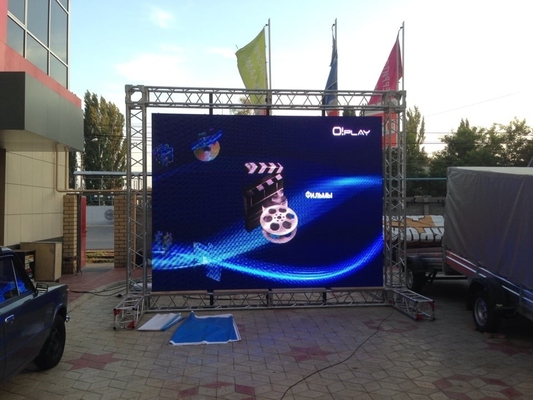

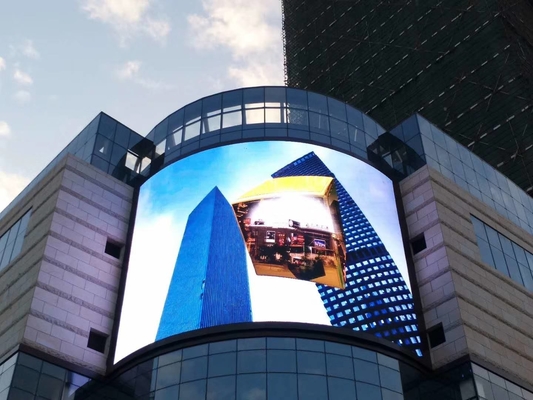

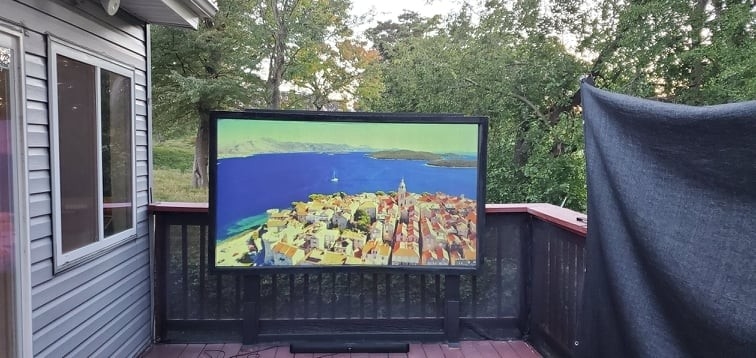

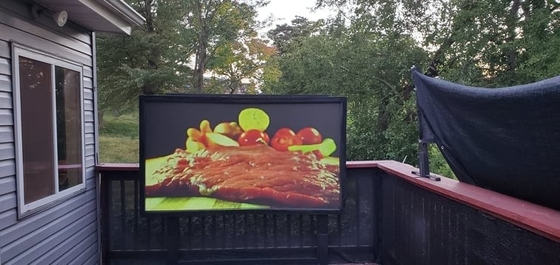

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q. How long time is needed to produce?
A. Our production time is 3-15 working days.
Q. How long does shipping take?
A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support?
A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do.
A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. Do I need to buy other equipment to install LED screen?
A. You just need to prepare structure and installation tools.
Contact Person: BOSCO
Tel: +8615177780539
