Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system

Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system

Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system
Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system
Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 15sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Product Name: Full Color LED Display P3.91 Stage LED Screen With Die-casting Aluminum Cabinet Material: Die Casting Aluminum
IP Rating: IP43 Pixel Configuration: RGB 3 In 1
Pixel Density/pixels/m²: 64510/m² Module Size/mm: 250x250
Scanning Mode: 1/8 Warranty: 3 Years
Cabinet Size: 500x500 Mm Or 500x1000mm Brightness: 5000 Nit
Led Chip: Nationstar
High Light:

led stage display

,

stage led display

High Brightness Full Colorstage Led Screens P3.91 With Die Casting Aluminum



Product Features



1, Outdoor high resolution and high brightness, smallest pixel in the world 3.91mm, unequalled image quality in outdoor environment.
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%)
4, Super thin and light with die-casting aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules
8, Quick installation and removal with facile connection lock


Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Product Overviews

Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

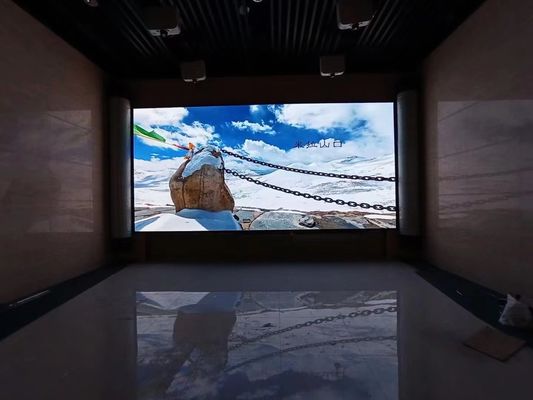

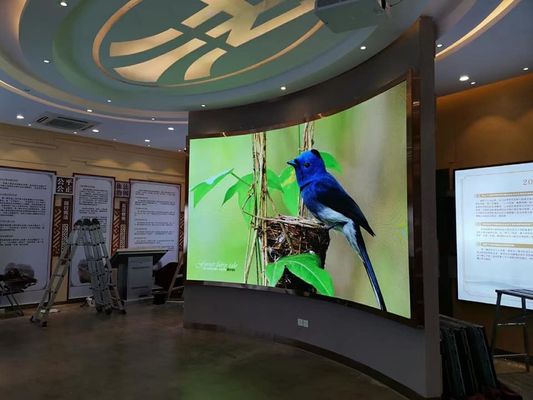

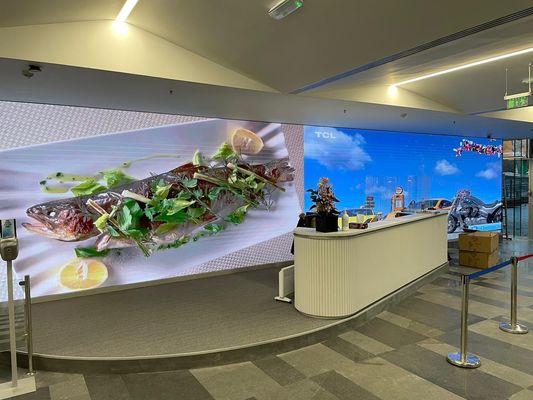

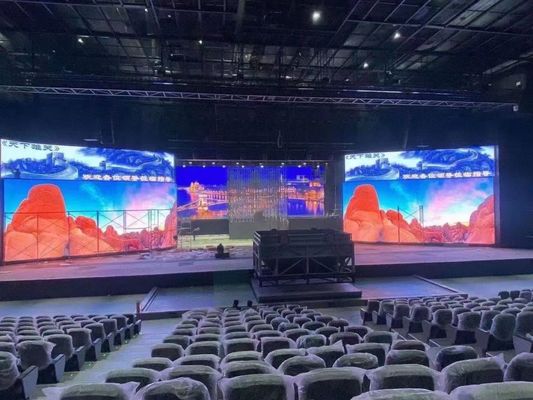

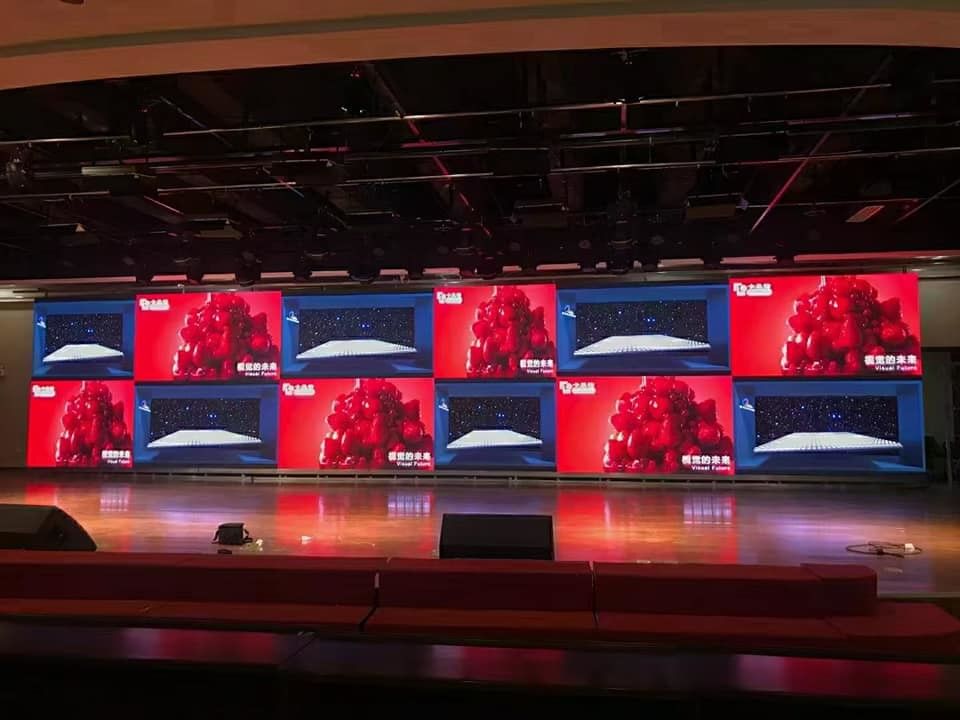

Our case

Led Stage Background Curtain , High Brightness Stage Led Video Wall I500X500MM cabinet ,5500 brightness ,Nova system 0


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.


FAQ



1.How can i place an order?

Please provide the details of your requirement for Led screen, like:

A.Indoor or outdoor Led screen you prefer?

B.What’s the width and height ?

C.Fixed or rental installation?

Once receive your requirement ,will send you quotation, for further discussion, had better to contact with us in the e-mail , WhatsApp or skype.



2.What kind of led display we provide?

We can provide many types of led screen: for example: indoor Led screen,outdoor Led screen, fixed led screen, rental led screen, led poster, irregular Led screen ect.



3.What about delivery time for the order?

7~25 days, depends on the detailed requirements.



4.How about the warranty?

We have 2 years warranty and lifelong maintenance



5.What is your terms of delivery?

We accept EXW, FOB, CIF, CFR ,DDU. You can choose the one which is the most convenient or cost effective for you.
