Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO,CB |
| Model Number: | SMD -P3.91 |
| Minimum Order Quantity: | 12 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 5-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4300 sqm month |
| Application: | Indoor | Color:: | Black |
|---|---|---|---|
| Panel Size:: | 250*250mm | Pixel Pitch:: | P3.91mm |
| Module Size::: | 250*250mm | Cabinet Size::: | 1000*500mm |
| Brightness::: | 800-1000cd/sqm | Refresh Rate::: | 3840Hz |
| Cabinet Material::: | Die-casting Aluminum | Certification::: | CE RoHS FCC |
| High Light: | led full color screen,indoor led display screen |
||
SCX LED Indoor Rental Led Display P3.91 500x500mm Indoor LED digital music display high quality video projector screen
Product Features
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
Product specification
| SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 64510/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Product Overviews
| Items | Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

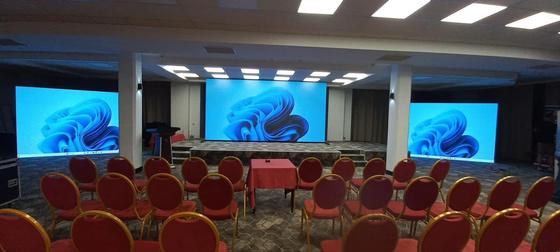

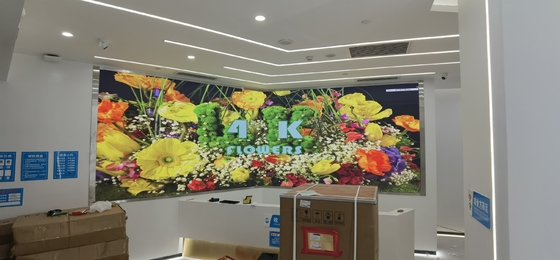

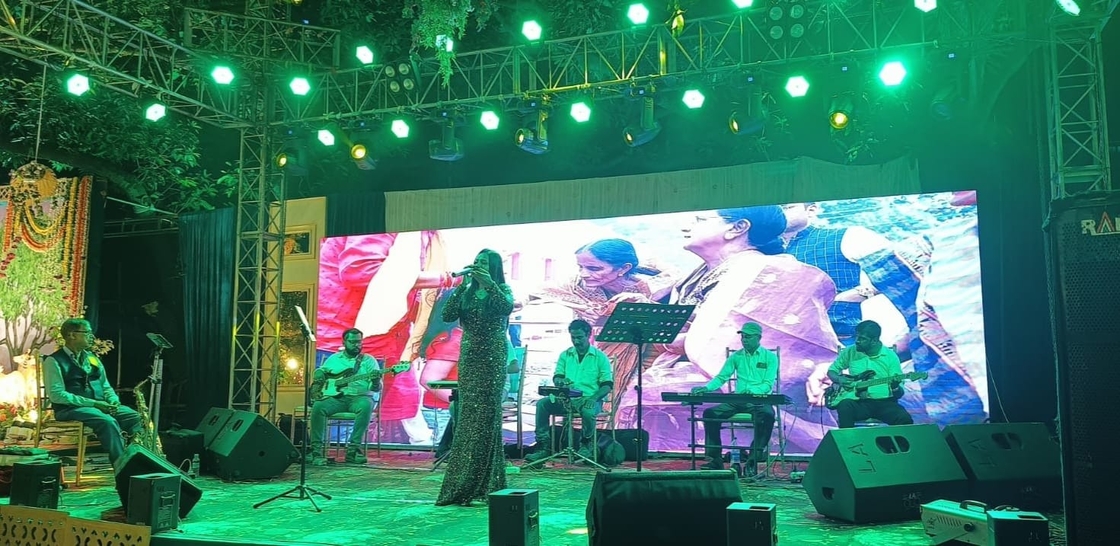

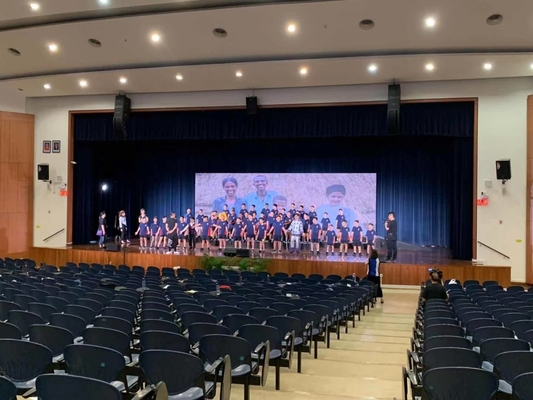

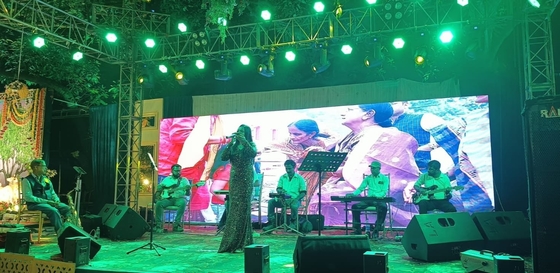

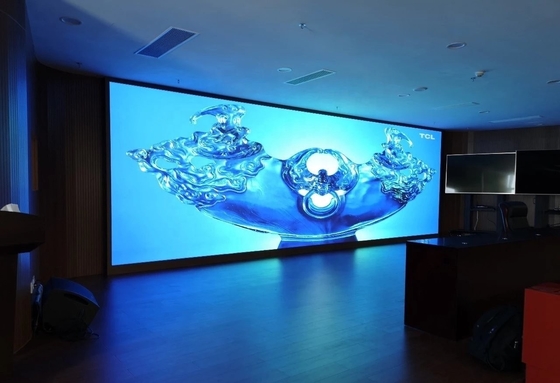

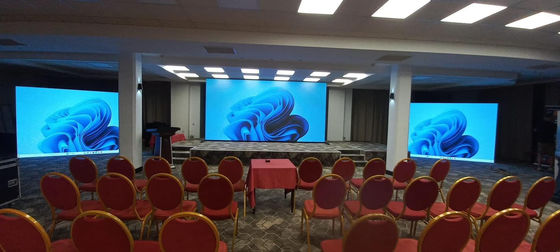

Our case
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
FAQ
Q1. The display will come to me in panel? How to instal them to be one whole led screen?
Yes, but it's very easy. We will provide structure drawing, installation diagram and the data connect diagram. and, we also can arrange engineer to your site if you need.
Q2. Can we make any size we want? And What's the best size of led screen?
Q3. What's the function of video processor?
