Indoor p3.9 Full Color LED Display with Seamless Splicing High Refresh Rate and Wide Viewing Angle for Commercial Rental and Event

Brand Name:	SCXK
Model Number:	SCXK-SMD3.91
MOQ:	10 sqm
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2300 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,FCC,SASO,CB

Panel Size::

500X500mm

Model Number::

P3.91 Indoor 500X500mm LED Display

Cabinet::

500*500 Mm

Brightness::

≥800 Cd/m2

Pixel Density::

65410 Pixels/m2

LED Shape::

SMD 3in1/SMD1921

Module Size::

250*250 Mm

Drive Method::

1/16 Constant Current Drive

Cabinet Resoltuion::

128*128

Refresh Rate:

3840hz

Led Chip:

Epistar

Led Standard:

SMD2121

Packaging Details:

wooden case ，flight case，it is up to you.

Highlight:

led full color screen

indoor led display screen

Product Description

Stage P2.6 2.6mm P3 P3.91 500X500mm Commercial Panel Rental Led Screen Display For Concert Wedding VideoBackground

Features:

1.Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency

2.It delivers an image which is super subtle and without getting tired after a longtime watching

3.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear

4.Front Serviceable Module allows easy Maintenance, Saving Time & Space

5.16 Bit Grey Grade Processing, the color transition will be more natural

Specifications

Parameter	Value
Pixel Configuration	SMD2020
Pixel pitch (mm)	3.91
Pixel matrix per panel	64*64
Pixel density (pixelsm)	65410
Cabinet Dimensions(L*W) mm	500*500mm
Module Dimensions(L*W) mm	250*250
Panel material	Aluminum profile&iron&die-casting aluminum
Cabinet weight (kg/panel)	7
Colour grayscale (bit)	12-16bit
Gray scale per colour (level)	16384
Refresh rate (hz)	1920
Driving type	1/16
Signal transmission distance (m)	cats cable:<100m single mode fiber:<10km
Brightness (nit)	1200
Optimal horizontal viewing angle (degree)	160
Optimal vertical viewing angle (degree	160
Ac input voltage (v)	Ac100-240v
Ac input frequency (hz)	50/60
Ac input power maximum value (wm)	625
Ac input power typical value (wm)	150
Storage temperature (℃)	-40-60
Work temperature (℃)	0-45
IP rating (front/rear)	IP40/IP21
Storage humidity (rh)	10%-90% non -condensing

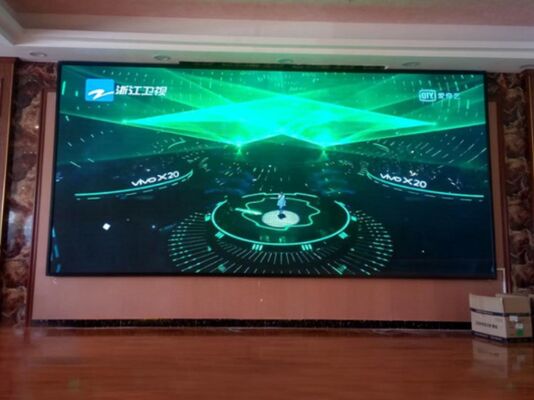

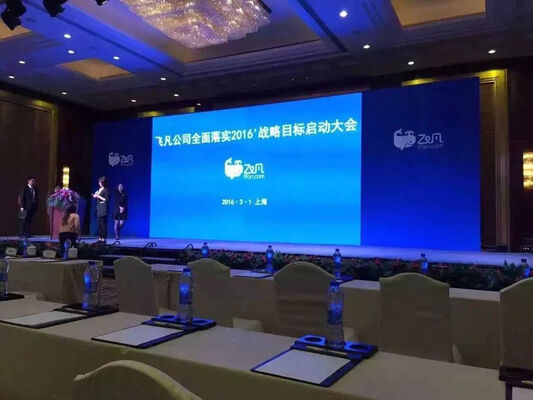

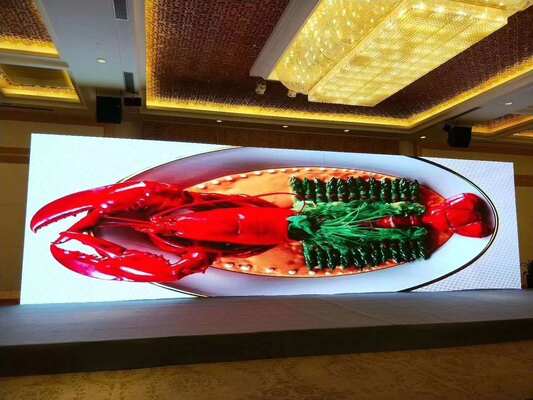

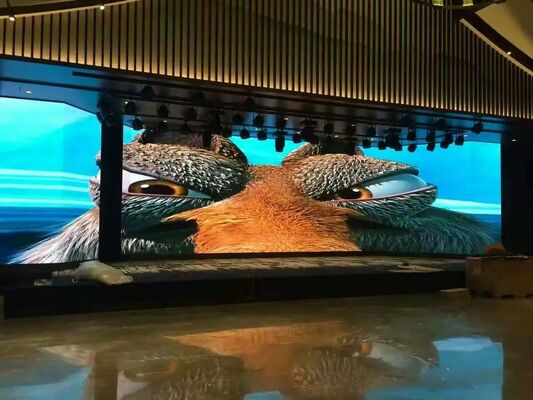

our case

Indoor p3.9 Full Color LED Display with Seamless Splicing High Refresh Rate and Wide Viewing Angle for Commercial Rental and Event 0

Our Service

1. Warranty

1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2) We will send our engineers to your place if we are expected after our negotiation.

FAQ

Q1. What is the MOQ? A: 1pc panel.

Q2: Do you provide video processor? A: Yes, we configure video processor from Novastar.

Q3: How to install the rental LED display? A: The rental LED display is usually installed by hanging or stacking.

Q4: Can you provide installation structures? A: Yes, we can provide hanging beams for hanging installation, or back bracket for stacking installation.

Q5. Do you test all your goods before delivery? A: Yes, we have 100% test for 72hrs before delivery.

Q6: How long is your warranty? A: 5 years, we will be responsible for free repairment or replacement for defective parts.

Q7: What will you do if we have problems related to installation, configuration and use? A: Our after-sale service team will solve all the problems, until the screen can work normally.

Q8. What is your terms of payment? A: 50% as deposit, 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q9. What is your terms of delivery? A: EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.

Q10. What is your delivery time? A: Generally 15-20 days after receiving the deposit. The specific delivery time depends on the quantity of the order.
