Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE,ROHS,FCC,SASO |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | USD 1000-10000 |
| Packaging Details: | Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sqm per month |
| Led Module: | 320*160mm | Pixel Pitch: | 5mm |
|---|---|---|---|
| LED Shape & Size: | 2mm SMD 2121 | Driving Mode: | 1/16 |
| Color Temperature Condition: | 3500K～9500K,(can Be Adjustable) | Number Of Colors: | 16.7 Trillion |
| Usage: | Indoor | Display Function: | Video |
| Warranty: | 3~5 Years | Brightness: | 1000 Cd/m2 |
| Cabinet Size: | 480*480mm*68mm | ||
| Highlight: | indoor led display screen,indoor led billboard |
||
Indoor P5 SMD2121 LED Display, 5mm Indoor advertising P2 P2.5 P3 P3.91 P4 P5 church led video wall screen LED panel
Features
1. Gorgeous picture: non-reflective screen for better viewing experience.
2. Perfect image: Our products use LED-specific IC with high refresh rate and no shadow
3. Light weight: The body is spliced with aluminum profiles, weighing 5-8kg, which is light and corrosion-free.
4. Elegant appearance: We use CNC processing technology to produce standard modules and cabinets, which can be easily assembled seamlessly.
5. Standard size: We use professional fasteners and standard modular panels that can be easily snapped together.
6. Easy to install: The back module is easier to connect.
7. Energy saving: Our products have low energy consumption and high efficiency.
Specification
| Pixel Pitch | 5 |
| Physical Density | 40,000 |
| LED Configuration | 1RGB |
| LED type | SMD3528 |
| Module Size | 320×160 |
| Module Resolution | 64×32 |
| Module Power Consumption | 20 |
| Driving Mode | Constant Current Drive |
| Scanning Mode | 1/16 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | ≥2200 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3480 |
| Cabinet Resolution | 128×128 |
| Cabinet Max Consumption | 160 |
| Cabinet Average Power Consumption | 50 |
| Cabinet Size | 640×640 |
| Cabinet Weight | 18 |
| Cabinet Thickness | 75 |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Refresh Frame Frequency | ≥60 |
| Protection Level | IP43 |
| Working Environment | Indoor |
| Working Temperature | -40° -+65° |
| Storage Humidity Range | 10%~90% |
| Life Span | 100,000 hours |
Detailed Picture

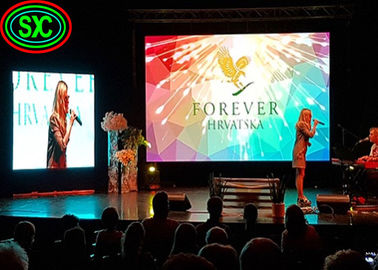

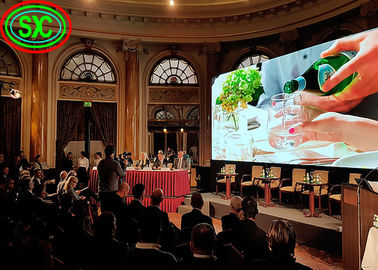

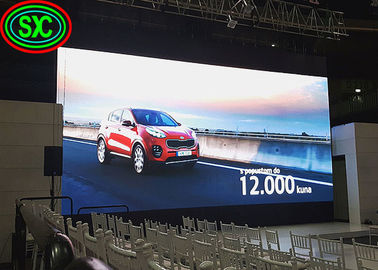

Successful Case
Hot Sale Model
Our Service
F&Q
Why so many clients choose SCXLED?
Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SCXLED, you choose the cost-effective , high quality and good service.
