Billboard Outdoor LED Video Wall P3.91 High Brightness Die-Cast Aluminum full color led display

Brand Name:	SCX
Model Number:	P8
MOQ:	1 sqm or more
Price:	USD 1000-10000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,FCC,SASO

Led Module:

256*128mm

Pixel Density:

15625 Dots/sqm

Brightness:

≥5500cd/㎡

Drivig Mode:

1/4

Cabinet Size:

1024*1024mm

Usage:

Outdoor

Life Span:

100000hours

Color:

Full Color

Working Voltage:

Packaging Details:

Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm

Highlight:

full color outdoor led display

outdoor full color led screen

Product Description

High brightness outdoor led display P8 outdoor led video wall P8 advertising billboard

Features

1. High refresh rate: Over 1920Hz/s, no scan lines when taking video and pictures.

2. IP65 standard, dustproof and waterproof. No problem to work for a long time outside.

3. High brightness, over 5500 nits, can work well in day time even under direct sunshine

Specification

Parameter	Value
Pixel Configuration	SMD3528
Pixel pitch (mm)	8
Pixel matrix per panel	96*96
Pixel density (pixelsm)	15625
Cabinet Dimensions(L*W) mm	768*768
Module Dimensions(L*W) mm	256*128
Panel material	die-casting aluminum or iron
Cabinet weight (kg/panel)	15
Colour grayscale (bit)	12-16bit
Gray scale per colour (level)	40096-65536
Refresh rate (hz)	1920
Driving type	1/4
Signal transmission distance (m)	cats cable:<100m single mode fiber:<10km
Brightness (nit)	>5500
Optimal horizontal viewing angle (degree)	160
Optimal vertical viewing angle (degree	140
Ac input voltage (v)	Ac100-240v
Ac input frequency (hz)	50/60
Ac input power maximum value (wm)	800
Ac input power typical value (wm)	400
Storage temperature (℃)	-40-60
Work temperature (℃)	-15-45
IP rating (front/rear)	IP65
Storage humidity (rh)	10%-90% non -condensing
Working humidity (rh)	10%-90% non-condersing
Lifetime Typical value (hrs)	100000

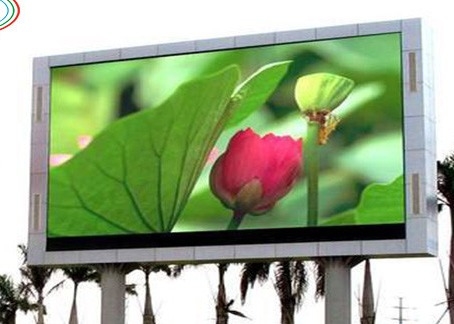

Detailed Image

Billboard Outdoor LED Video Wall P3.91 High Brightness Die-Cast Aluminum full color led display 0

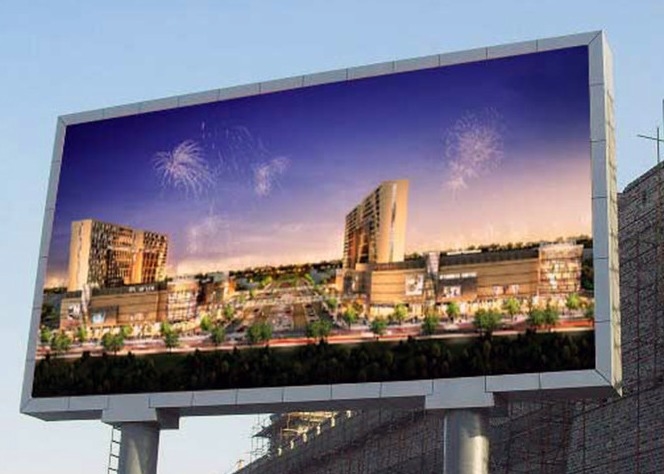

Product Application

Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.

Which is widely used as outdoor advertising and information media at station, square and shopping mall.

Outdoor led screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.

Billboard Outdoor LED Video Wall P3.91 High Brightness Die-Cast Aluminum full color led display 1

WorkShop

Billboard Outdoor LED Video Wall P3.91 High Brightness Die-Cast Aluminum full color led display 2

Our Service

1. Warranty

1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service

1) We provide you the forwarding information, and some other information such as flight box, structure
