P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen

P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen

  • P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen
  • P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen
  • P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen
  • P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen
P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: SMD-P4
Payment & Shipping Terms:
Minimum Order Quantity: 15 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Screen Dimension:: 512x512mm LED Panel Pixels:: 4mm
Pixel Resolution:: 62500pixels/sqm LED Chip:: TaiWan Epistar
Brightness:: >2000cd LED Cabinet:: Die-casting Aluminum
LED Cabinet Size:: 512x512mm Protection Level:: IP43
Life-span:: 100,000Hours Certification:: CE,FCC,RoHs,ISO
Warranty: 2 Years
High Light:

full color outdoor led display

,

outdoor full color led screen

Indoor/outdoor P4 portable P4mm SMD 512*512mm Die-casting Aluminum Panel Video Wall Pantallas LED P4 Indoor LED Rental Screen

1. SMD 3-in-1 (high quality SMD2121 LEDs), wide viewing angle, nice video performance.



2. 512x512mm Die-casting aluminum LED cabinets, nice appearance and good quality



3. super thin, light weight, with handles and fast locks, easy to install



4. seamless and flatness to ensure high quality video effect



5. support VGA,DVI,HDMI,TV programs,VCD,DVD,live show,etc.



6. flightcase package, easy to take the LED display to different places according to your need.



7. suitable for stage rental, event show, concert, mobile advertising, etc

♦ Product specification

indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥3m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

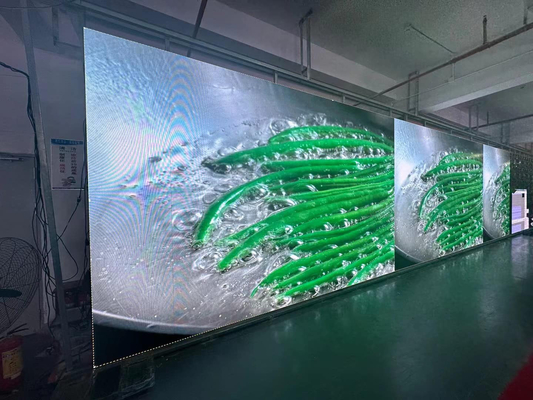

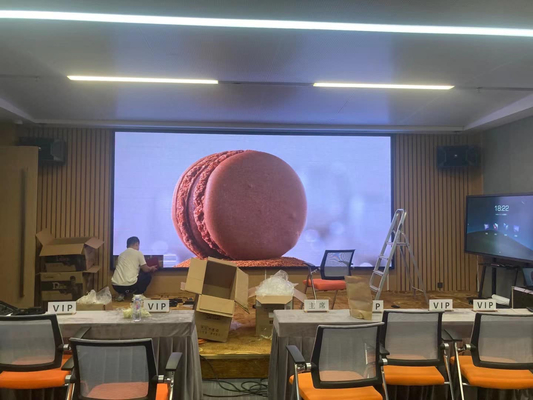

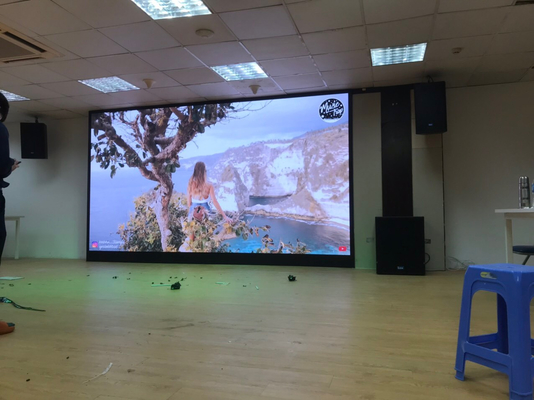

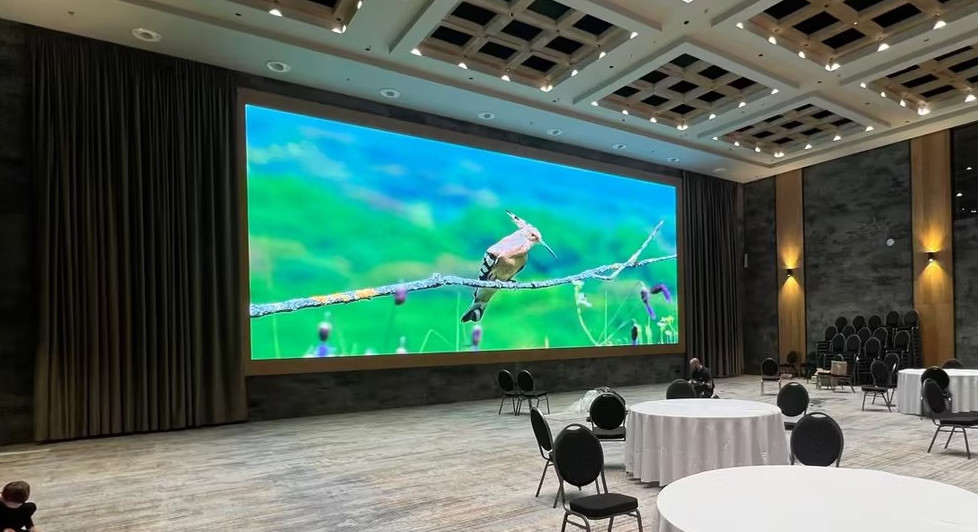

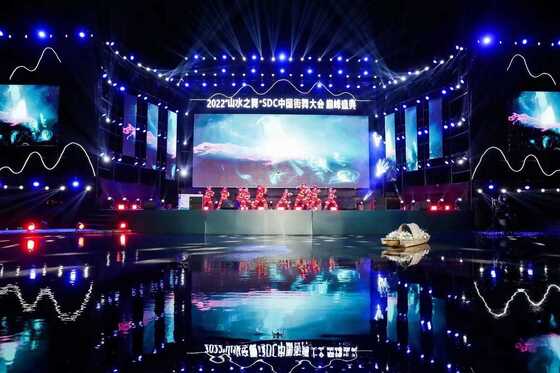

Our case

P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen 0P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen 1

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping



1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.



2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.



3.Package:(1)carton (2) anti-shaking wooden case (3) flight case



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





FAQ

Q1: How to choose the LED screen suitable for my needs?
A1: When you choose a led screen, you only need to consider three simple questions.
1. Will you use it indoors or outdoors?
2. Is it for rental purpose (need to move from one place to another often) or for fixed installation (to be installed in one place forever)?
3. What is the length and width of the LED screen you want to buy?

Q2: Which pixel pitch should I choose?
A2: There are many differences from 1.25--16mm pixel pitch, in principle it is so-usually indoor LED screens use smaller pixels (1.25mm-10mm), outdoor LED use larger pixels (2.5mm-16mm) screens ( For example, huge highway ads).

Q3: Which control system should I choose?
A3: There are synchronous and asynchronous control systems on the market. For large-size LED screens (usually more than 20 square meters), you need to use a synchronous control system; when it is less than 20 square meters, you can use synchronous or asynchronous. For asynchronous control systems, you can choose to use wifi, 3G, 4G and other wireless control.

Q4: How to order from your factory?
A4: You can place an order with RGX through Alibaba online or offline transactions, please contact us to confirm before placing an order.

Q5: How to pay?
A5: We accept payment online via Alibaba, or offline to our company account via T / T, Paypal or Westerunion.

Q6: How to ship?
A6: This is optional, and we respect our customers choices. You can choose to ship by air, DHL (FedEx, UPS, TNT, EMS, etc.) international express company, or by sea according to the weight, volume and required delivery time of the goods.

Q7: How to install after receiving?
A7: We will provide you with drawings to guide you through the installation. We can also provide drawings of steel structures, software settings drawings or photos, or send our engineers to help you when needed.
