Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD-P10 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4200 sqm month |
| Color:: | Full Color | Panel Size:: | 960*960mm |
|---|---|---|---|
| Pixel Pitch:: | 10mm | High Brightness:: | 5500cd/m2 |
| Protection Grade:: | IP65 | LED Chip:: | Kinglight |
| Refresh Rate:: | 1920HZ | Product Name:: | Led Advertising Display |
| Pixel Density:: | 10000dots/m2 | Transmiiting Distance: | Internet Cable <100m |
| Driving Ic: | Driving IC: ICN 2037 / 2153 | Driver Brand: | MBI |
| Application Place: | Outdoor | Delivery Term: | Ex-work/FOB/CIF/DDU |
| Highlight: | full color outdoor led display,outdoor full color led screen |
||
SCX LED P10 Fixed HD Outdoor LED Display Screen Waterproof High Brightness for Street Advertising
1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Backside maintenance. Exterior exposed module screws, easy dismantling.
4, Waterproof connectors, safe and steady.
5, Energy saving, each square meter average power consumption is only 250W.
This is 1/2 scan P10 SMD led display, its brightness is around 5000cd/sqm. If you need higher brightness, we also have 1/4 scan P10 SMD led display and P10 DIP Led display.
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | 5-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/8) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

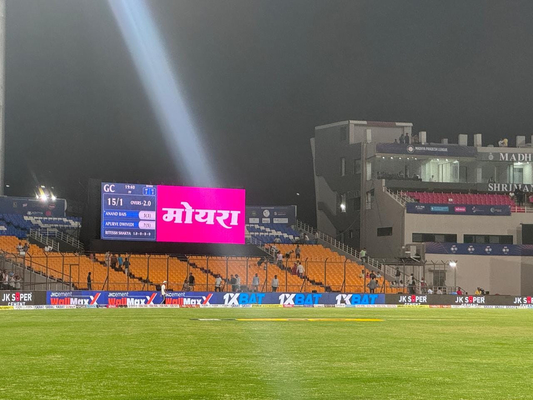

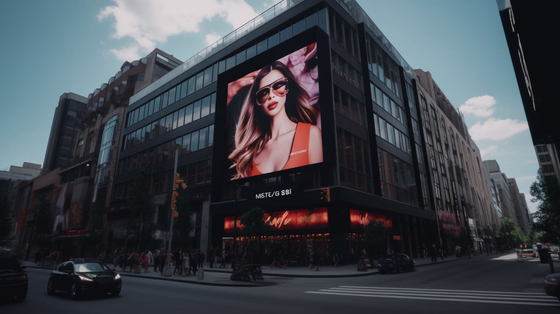

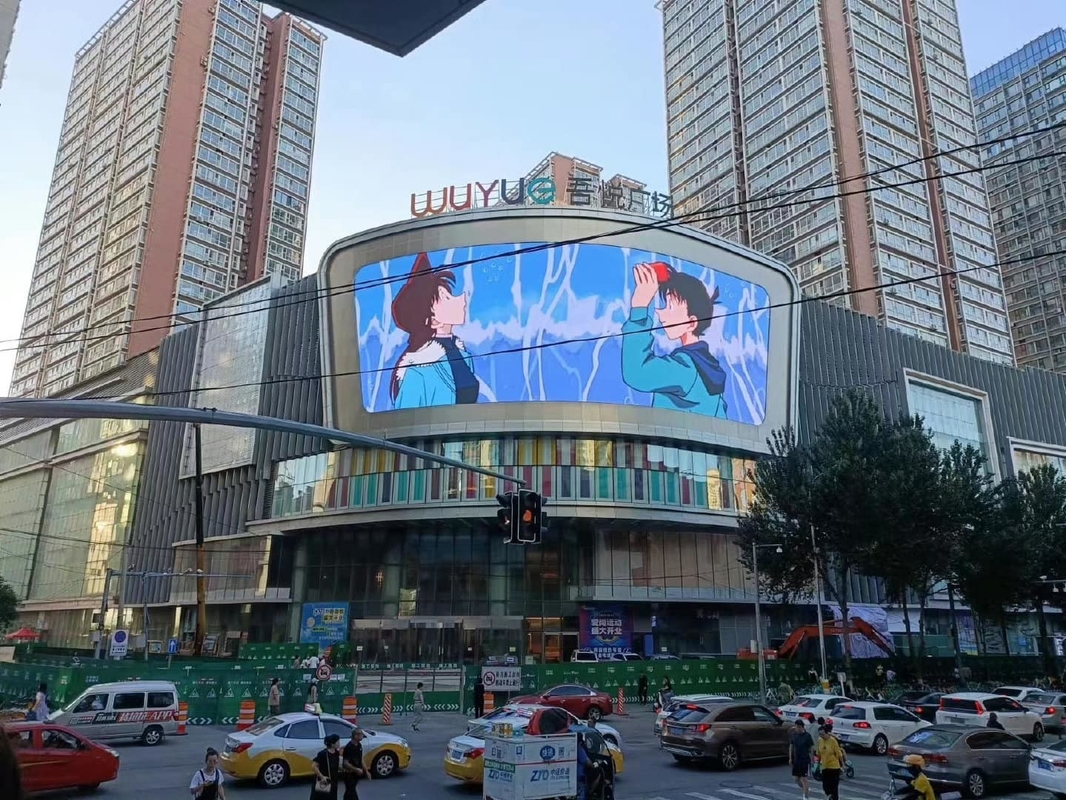

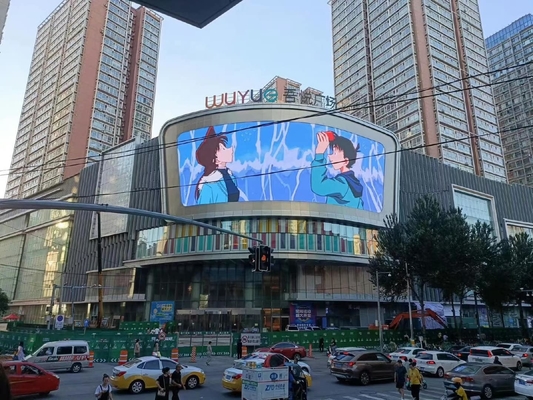

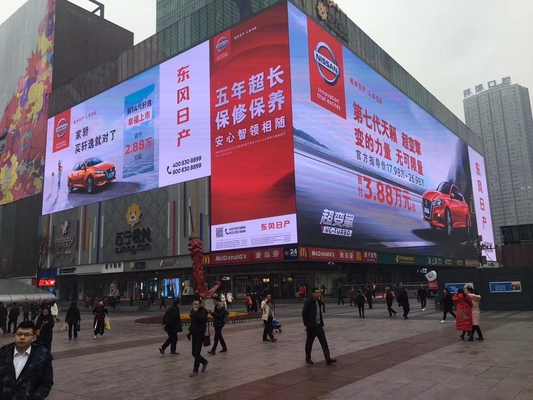

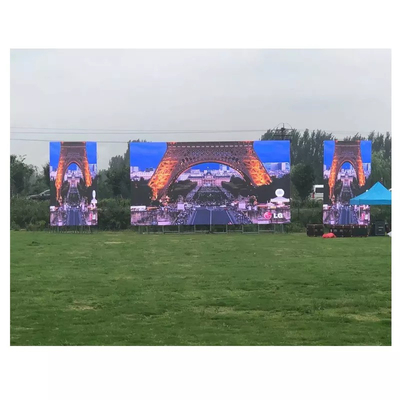

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: What's the warranty of your LED Display ?
A1: We provide 1 year warranty.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team.We are willing to answer your question
within 24 hours online.
For After-sale service: We can guide you how to use, debugge the screens, and common maintenance with spare parts.
Apart from this,we can send engineers to your country if you need.
Q3: What’s your payment term? How long does it takes to delivery?
A3: We accept T/T and western union.30% deposit before production in advance, and the remaining 70% for balance before delivery.
Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Novastar or Mooncell control system.
For asynchronous control system: We use Novastar or Huidu control system.
Q5: How can you ensure the led display product quality?
A5: We have 5 years experience in producing LED Display with good reputation in this industry.
We will test for 72 hours to ensure 100% non-dead LED lamps before shipment.
