Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD-P3 |
| Minimum Order Quantity: | 16 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Application: | Indoor Advertising | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192*192mm | Module Resolution:: | 64*64dots |
| Scan Mode:: | 1/32scan | Viewing Angle:: | H120 V120 |
| Certificate:: | CE CCC Rohs ISO9001 BIS | Refresh Rate:: | 1920-3840Hz/s |
| Cabinet Size:: | 576x576mm | Life Span:: | 100000hours |
| High Light: | indoor led display screen,indoor led billboard |
||
SCX LED Indoor P3 Full Color Large LED Screen Display/ LED Rental Screen/ 576x576mm Cabinet For Advertising
Specifications
Advantages:
1. Gap free
Rental led display frame made by CNC machine, no gap after assembling, and ensures a flatness screen.
2. Fast and easy set up
Fast locking system and modular cabinets for easy set up, saves labor cost.
3. Neutrik data and power connectors, stable and reliable.
4. Noiseless power supply, quiet operation.
5. High contrast ratio with true black SMD, better color uniformity.
6. Test button on each cabinet, indicates the working condition before installation, time saving.
7. High refresh rate
Up to 6000HZ refresh rate, no scan line through TV camera, could be used for TV studio, control room, show room etc.
8. High gray scale
High gray scale ensures the display have good performance.
9. Wide viewing angle
With wide viewing angle led lamps, could reach to 140 degree in horizontal and vertical way.
10. High color uniformity
All the masks spray same color printing ensures the whole display with best color uniformity.
Same batch LED lamps, same color and same brightness.
11. Low power consumption and long life span
Choose Nichia or Cree or Epistar led chip, save 25% or more power cost, life span more than 100,000 hours.
12. Die-casting aluminum cabinets for better heat dissipation, light weight, saving transportation cost.
13. Hanging and stacking possible, used for different circumstances.
| Model | SCX-P3 |
| Pixel Pitch(mm) | 3 |
| Physical Density(dot/m²) | 111,111 |
| LED Configuration | 1R1G1B |
| LED Type | SMD2121 |
| Model Size(mm*mm) | 192 x 192 |
| Module Resolution( W*H) | 64 x 64 |
| Drive Mode | 1/32 scan |
| Brightness(cd/m²) | ≥1800 |
| Max Power Consumption(W/ m²) | 480 |
| Average Power Consumption( W/m²) | 220 |
| Cabinet Size(mm*mm) | 576*576 |
| Cabinet Resolution(W*H) | 192*192 |
| Mini. View Distance (m) | 3 |
| View Angle(deg.) | Horizontal≥110℃,Vertical≥70℃ |
| Grey Scale | ≥16 bits |
| Refresh Rate( Hz) | ≥1920 |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Working Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Module Display Brightness Uniformity | <2% |
| Earth Leakage Current | <3mA |
| Temperature-operating | -25℃~45℃ |
| Humidity-operating | 10%~95% |
| Operating System | Windows98/me/2000/NT/XP/W8/Vista/W7 |

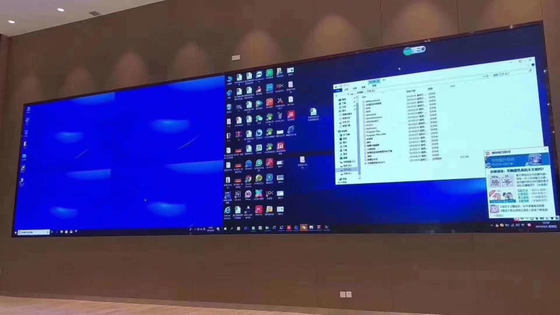

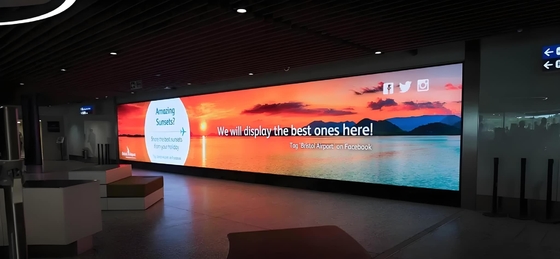

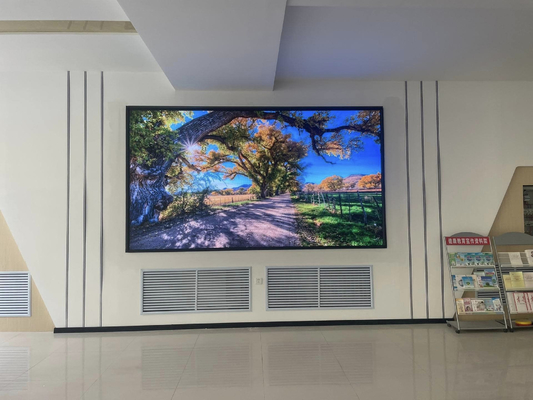

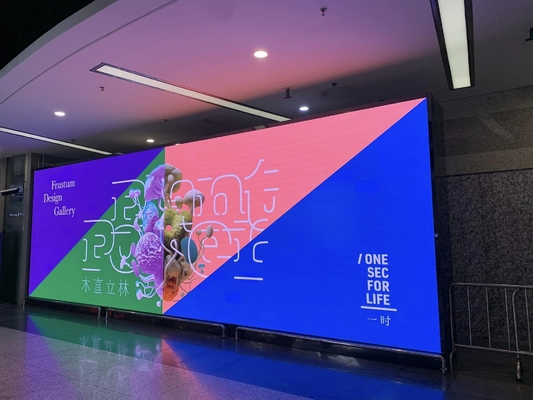

Our case
FAQ
| order to avoid mistake, when bring out a solution, Evershine sales will discuss with you on the related key factors. Please read below articles which will be useful to you: |
| Q: What are the differences between the outdoor ,indoor, semi-outdoor LED display ? |
| A1: Brightness: the brightness of indoor LED displays are much less than the outdoor and the semi-outdoor LED display. The brightness Of outdoor LED display and the semi-outdoor LED display are closed. |
| A2: Waterproof level: indoor and semi-outdoor LED display are not waterproof. |
| Q: What's the controlling system? |
| A1: Our standard controlling system for this model is Linsn. Also support other controlling system, |
| like Xixun,TF, Colorlight, Novastar etc. |
| Q: What is a pixel and pixel pitch? |
| A: The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.Pixel pitch refers to the center of the distance between two adjacent pixels. |
| Q: What is viewing angle? |
| A: Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle. |
| Q: What about the lead time for order? |
| A: Always: 20 days, as your order quantity, sometimes we have stock, can delivery within 3 days |
| Q: How to select stage led display screen? |
| A: In usually for indoor stage will be select indoor diecasting P2.5 P3 P4 P5 P6,P3.91 P4.81,P6.25 For outdoor stage will be select P4.81, P6.25 P6 P8 P10 |
| Q: How long will you take to produce the led screen ? |
| A: Usually, it takes 20 days. |
| Q: How to select led type? |
| In usually, |
| For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25 |
| For outdoor stage will be select P4.81 P6.25 P6 P8 P10 |
| For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10 |
| For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12 |
| For big size led screen can select DIP P10 P12 P16 or P20 |
| Q: How to maintence led screen? |
| In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules |
| Q: How to ship the goods to my country ? |
| A: The led screen is heavy, usually it is ship by air or sea. |
| Q: Where is your nearest Sea Port? |
| A: Our nearest sea port is at Shenzhen,Guangdong Provice |
