High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen

High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen

High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen
High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen
High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P6
Payment & Shipping Terms:
Minimum Order Quantity: 11 SQM
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Application:: Video/Advertising/Picture Color:: RGB
Panel Size:: 192mm*192mm Pixel Pitch:: 6mm, P6
Pixels Density:: 27777 Dots/ Square Meter Pixel Configuration:: 1R1G1B
Brightniess Of White Balance:: 5800-6500mcd/square Meter LED Cabinets Size:: 960mm*960mm/576mm*576mm
Certificate:: CE/Rohs
High Light:

full color led signs outdoor

,

outdoor full color led screen



SCX LED High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen



♦ Quick Detail

1. Super lighter and thinner;


2. Easy to connection and uninstall;


3. It can display,words,texts,graphics and videos.

4. High resolution and high frequency dynamic image.



P6 outdoor LED Display Module

1. High refresh rate, 1920HZ. High contrast ratio, 5000:1. High gray cale, 16bit.
2. Clear picture without flicker and distortion. The display features a wide viewing angle of 140 degree horizontal and 120 degree in vertical. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
3. Fast assembling: Cabinet locking system can connect cabinet without any tools, quick installation and make seamless installation available.



♦ Product specification

Outdoor SMD P6
Lamp size 2020
Resolution/mm 6
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

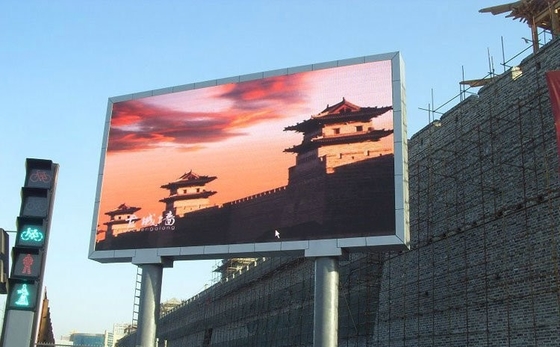

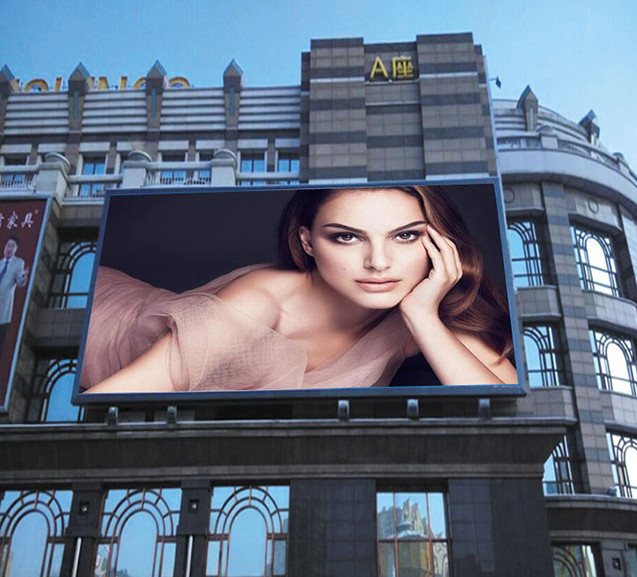

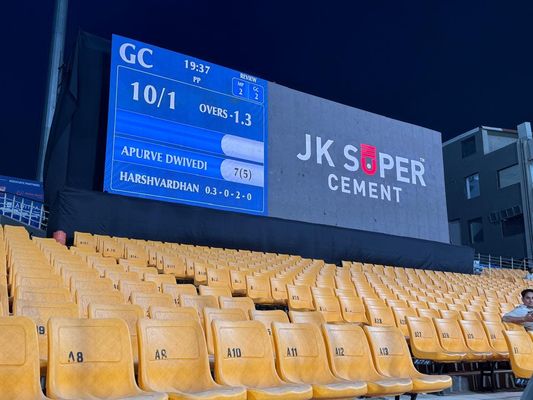

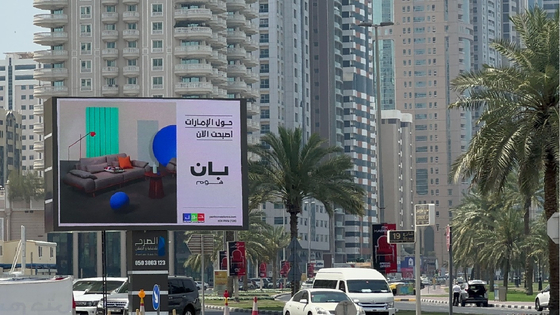

Our case



High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen 0

High quality Outdoor p6 192*192mm full color fixed installation HD led display waterproof cabinet advertising led screen 1



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



FAQ

1.Except this model, are there any other models?

yes, For indoor led screen we have p2 p2.5 p3 p3.91 p4 p4.81 p5 p6 p10

For outdoor led screen we have p3.91 p4 p4.81 p5 p6 p8 p10

2.Are you factory? and your warranty?

yes we are 8 years factory, 2 years warranty and lifetime maintenance

3.What's the function of your led screen?

It supports videos, flash, WAV/MIDI, PPT, images and so on

4.What's your delivery time?

Wthin 10-15 days after receiving deposit

5.What's your package and shipping way?

Goods are packed with wooden case or flight case; delivered by air or sea
