Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB/CE/ROHS/FCC/ISO/UL |
Model Number: | SMD 15.6 |
Minimum Order Quantity: | 12 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case,it is up to you. |
Delivery Time: | 3-12 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 4500 sqm month |
Application:: | LED Video Advertising Display | Color:: | Full Color |
---|---|---|---|
Panel Size:: | 500*1000mm | Pixel Pitch:: | 15.625mm |
LED Chip:: | DIP346/SMD3535 | Brightness:: | 6000cd/sqm |
Cabinet Size:: | 500x1000mm | Refresh Rate:: | 1920-3840Hz |
Product Name:: | Outdoor Building Facade LED Mesh Screen | Pixels:: | 15.625mm |
High Light: | transparent led panel,led transparent screen |
SCX LED Transparent p7.8 p15.625 p25 p31.25 outdoor mesh led screen /transparent led curtain display led video screens
p15.625 outdoor power saving transparent led display for glass building installation
Screen dimension: above 100sqm
Refresh rate: 3840Hz whithout moire effect
Brightness: 8000 to 12000cd/sqm
Single installation frame: 2x1M included, no need preapre for your side
Power box: optional
Control computer: optional
It is turnkey solution for your specific project, and engineers can arranged to local to guide the installation, you just wait to receive items and lighting up with beautiful performance in local!
♦ Product specification
Model | SCXK-P15.625 |
Transparency rate(%) | 70 |
LED arrangement | RGB |
LED driving method | dynamic scanning |
Brightness | ≥5000cd/m2 |
Pixel Density (dot/M2) | 12544 |
Viewing angle (W*H) | 140° C Horizontal & 60°C Vertical |
Refresh Rate(Hz) | 16bit ≥2880; 14bit ≥4800; 10bit ≥9600 |
Signal Input | DVI/HDMI/DP |
Gray Scale | 16bit |
LED Encapsulation | Self-development Side view LED lamp |
Lifetime | 100,000 hours |
Warranty | 5 years |
Eliminate Ghost Line | Yes |
Items | Indoor Led display: |
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 | |
Outdoor Led display: | |
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 LED dance floor DJ LED display Glass led display |
|
Material | steel,aluminum ,die casting aluminum |
Payment | 30% deposit for production start, 70% balance before shipping |
terms | T/T |
Western Union | |
Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
Flight case; | |
Anti-shaking wooden case | |
Shipping: | 5 to 7 working days upon receiving deposit payment |
After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem | |
( not by man-made damage) |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

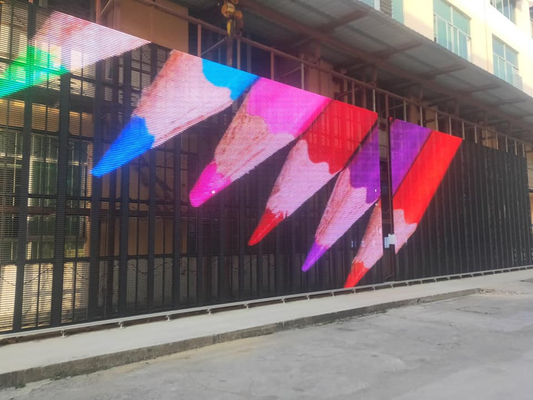

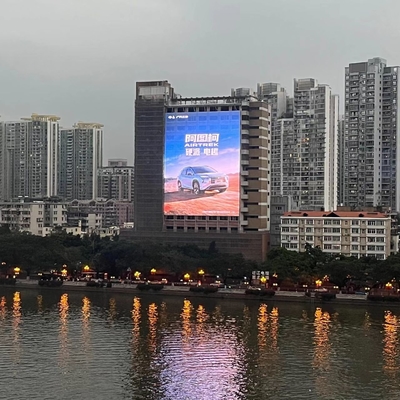

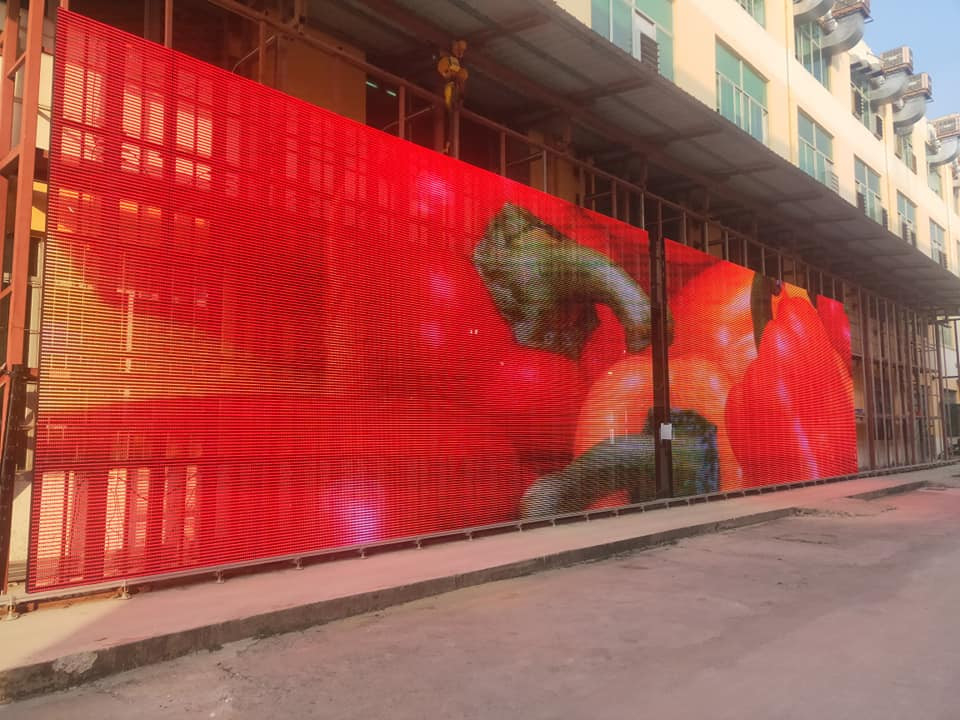

Our case
1. Light and Slim Weight with Integrated Design
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
1.
Q: Do I need a technical person to assist installation and debuging the systemto the mesh screen?
A: Normally the competitors request to send one ot two technical person to the installation site for assit, which will bring much extra costs. However, if you take mesh screen from Sunrise, installation site guiding support and remote control also support to you at the same time!
2.
Q: How can I do if I want to put the mesh screen on the surface of the glass surface building?
A:The mesh screen is designed mostly for glass surface building, but it's some difficult to find the support position for the frame. Sunrise can provide OEM size for the frame to hold the cabinet. You just need to send us the concerning building draw, and other jobs will be done for Sunrise!
3.
Q: Is there any MOQ if I want to put one order?
A: Yes, you are right there is MOQ coz normally the mesh screen size will over 50sqm, so we kindly request the MOQ will be 50sqm, if you have any diffficult, pls let us know without hesitation as well.
4.
Q: What's your leading time?
A: The leading time usually will be 5-6 weeks, which depends on the total quantity and if there has special requirement or not.
5.
Q: What's max brightness since the pixel pitch is some bigger?
A: The Brightness for P31.25/P31.25 is 6500nits, P31.25/P15.625 is 8000nits, and P15.625/P15.625 is 10000nits. Coz all leds from Sunrise is super high brightness to get the best view performance.
6.
Q: Is it easier to change the mesh strip by me?
A:Sunrise has to control the quality extremely to avoid such situation. In case the situation occurs, you just need to change one panel, or if you have any skilled engineer. Sunrise can also guide him to repair the strip. It is very fast for whole progress, about 5mins.
