Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P4 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T or western Union |
Supply Ability: | 5000sqm per month |
Product Name: | P4 Stairs LED Display Screen | Module Size(W * H): | 256mm*128mm |
---|---|---|---|
Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
Pixel Pitch: | 4mm | Type: | Free Standing |
Resolution(W*H): | 64dots*32dots | Usage: | Indoor |
High Light: | indoor led billboard,indoor led display screen |

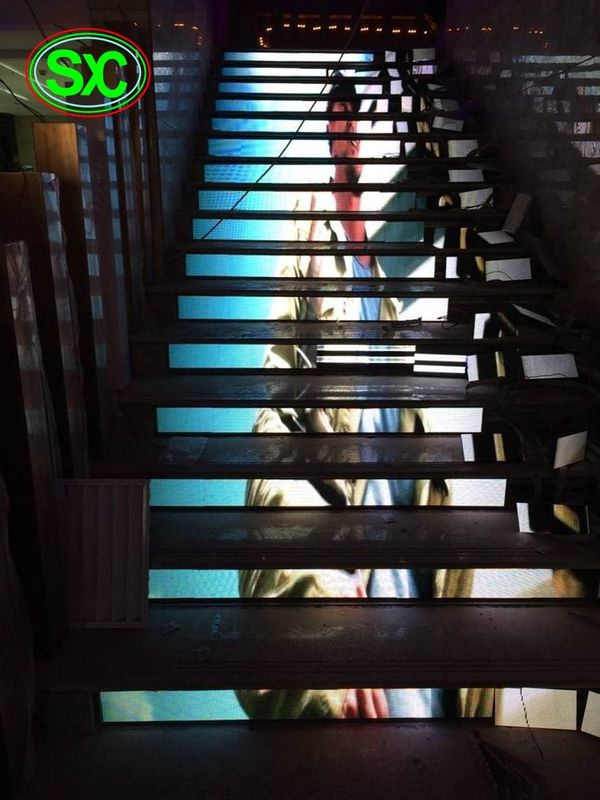

P4 floor display screen customized size for indoor shopping mall stairs LED display screen
Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.
Feature and Advantage
1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Numbers | Technical indexes | Specification |
1 | Pixel pitch | 4mm |
2 | Module size | 256mmx128mm |
3 | Module resolution | 64 x 32 |
4 | Module density | 62500dots/sqm |
5 | Pixel configuration | Full color |
6 | Red wavelength | 625±2nm |
7 | Green wavelength | 525±2nm |
8 | Blue wavelength | 470±2nm |
9 | Colors | 16777216 |
10 | Best viewing distance | more than 4m |
11 | Horizontal viewing angle | 120° |
12 | Vertical viewing angle | 90° |
13 | Maximum power consumption | ≤400W/2 |
14 | Brightness | ≥1200cd/m2 |
15 | Gray scale | 16bits of per color |
16 | Color temperature | 6500K |
17 | Control method | Synchronization or Asynchronization |
18 | Driving method | 16scanning |
19 | Frame frequency | 480Hz |
20 | Refresh frequency | ≥1000 Hz |
21 | Working voltage | AC220V/110V±10% |
22 | IP grade | IP30 |
23 | Working temperature | -20°C~80°C |
24 | MTBF | More than 10,000 hours |
25 | life span | more than 100,000 hours |
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Business Developer.
Contact Person: joe
Tel: +8613922107240
