Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE,ROHS,FCC,SASO,CB |
| Model Number: | P4 |
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sqm per month |
| Led Module: | 256*128mm | Module Resolution: | 64*32 |
|---|---|---|---|
| Refresh Rate: | ≥3840hz | Pixel Density: | 62500 |
| Number Of Colors: | 16.7 Trillion | Brightness Adjustment: | 0-100% 8 Levels |
| Highlight: | indoor led billboard,led full color screen |
||
Resolution Indoor Full Color LED Display Video Wall P2 P3 P4 P5 with Brightness Adjustable
Indoor Full Color Led Display Product Advantage
1.High contrast
LED professional lamp bead USES high quality 2121 black lamp, raise luminescence brightness, reduce screen black time brightness at the same time.
Unique black mask processing technology, the screen contrast is greatly improved.
2.High gray level
The display of the screen is almost perfect with low brightness, and the appearance of the screen is higher than the traditional display.
That can show more image details, no information loss.
3.High refresh rate
The screen intake five black screen picture stability without ripples, dealing with the dynamic display screen, the image edge is clear, the screen has good dynamic performance, the image information accurately real reduction, make the video screen clear fluid, bring good visual enjoyment.
4.Wall installation to streamline space
Pasted wall, Mosaic, landing multiple installation methods, simple and beautiful, the maintenance of post-maintenance is more simple and convenient.
Indoor Full Color Led Display Specification
| Model | P4 | P6 | P8 (SMD) | P10 | |
| Module | Pixel Pitch (mm) | 4 | 6 | 8 | 10 |
| LED Lamp Model | SMD 2727 | SMD 3535 | SMD 3535 | DIP 346 | |
| Model Size (mm) | 256*128 | 192*192 | 32*16 (W*H) | 16*16 (W*H) | |
| Model Pixel (dot) | 64*32 | 32*32 | 256*128*25 | 160*160mm | |
| PCB Board Type | Separate Design | ||||
| Driving Mode | Constant current | ||||
| Scaning | 1/16 | 1/4 | 1/4 | 1/4 | |
| HUB Board | HUB75 | HUB08/HUB75 | HUB75 | HUB75 | |
| Cabinet | Standard Cabinet Size (mm) |
512*512*120 | 960*960*120 | 1024*1024*120 | 960*960*120 |
| Cabinet Pixel | 128*128 | 160*160 | 128*128 | 96*96 | |
| Cabinet Module Number | 4*8 | 5*5 | 4*8 | 6*6 | |
| Power Supply Specification |
5V 40A/5V 60A/5V 100A | ||||
| IP Grade | IP65-67 | ||||
| Display | Pixel Density (dot/m2) | 62500 | 27777 | 15625 | 10000 |
| Brightness (cd/m2) | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | |
| Max Consumption | 1000 | 1200 | 1000 | 1000 | |
| Average Consumption | 500 | 600 | 480 | 480 | |
| Best Viewing Distance (m) |
4-150 | 6-150 | 8-150 | 10-150 | |
| The Horizontal and Vertical Perspective |
120/100 | ||||
| System Specification |
Drive IC Model | MBI5124 | |||
| Control Mode | Synchronization or Asynchronization | ||||
| Max Refresh Rate | 2800 | ||||
| Max Gray Level | 8192 (13bit) - 65536 (16bit) | ||||
| Repetition Frequency (HZ/s) |
60 | ||||
| Brightness Adjustment | 256 Grade | ||||
| Signal Input (with video processor) |
HDMI, DVI, VGA, RF, S-Video, RGB, RGBH, YUV, YC&Conposition, etc | ||||
| Communication Way | Net cable/SMF(signle mode fiber)/MMF(multi mode fiber) | ||||
| Communication Distance (m) |
100/500/1000 | ||||
| Operation Parameter |
Working Voltage | AC110V/220V±10% 50HZ | |||
| Working Temperature | -20~+80 | ||||
| MTBF (MON) | 38 Months | ||||
| Life Span Time (Y) | 11 Years High lightness waterproof full color P10 outdoor advertising led display screen | ||||

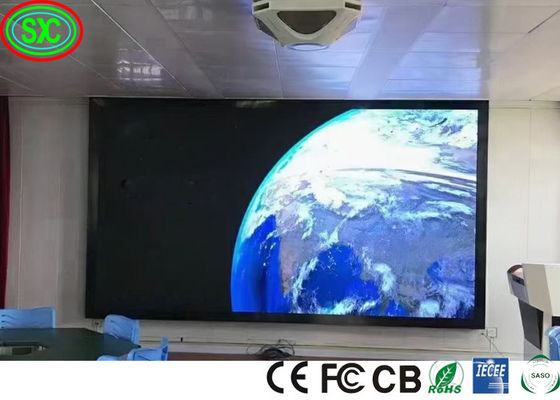

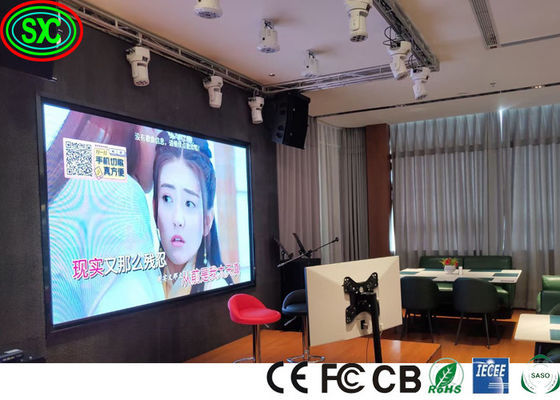

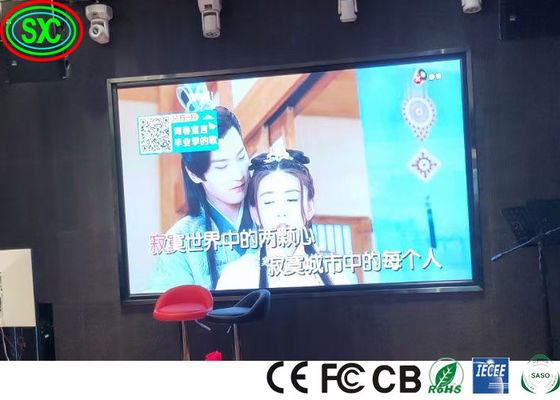

Indoor Full Color Led Display Picture
Testing
| Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |
