Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Woodend and flight case,it's up to you. |
| Delivery Time: | 10 working days after payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 5000sqs/month |
| Brand Name: | Car LED Sign Display | Pitch: | 8mm |
|---|---|---|---|
| Pixel Density: | 15625dots/sq | Brightness: | ≥7500cd/sq |
| Working Voltage: | DC5V | Control System: | LSN,NOVA |
| LED Type: | SMD3535 | Module Size: | 256*128mm |
| Cabinet Size: | 512*512mm | Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... |
| Certificate: | CE RoHS FCC CCC UL | ||
| Highlight: | car led message board,car led message display |
||

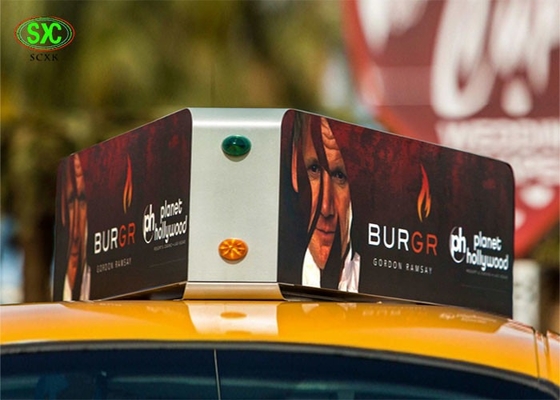

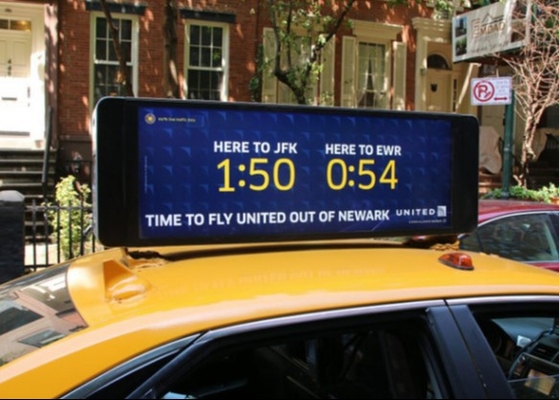

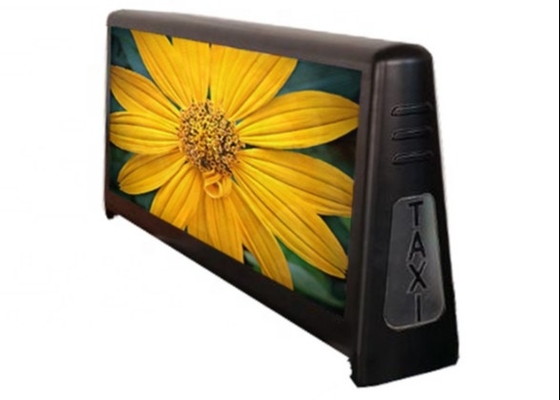

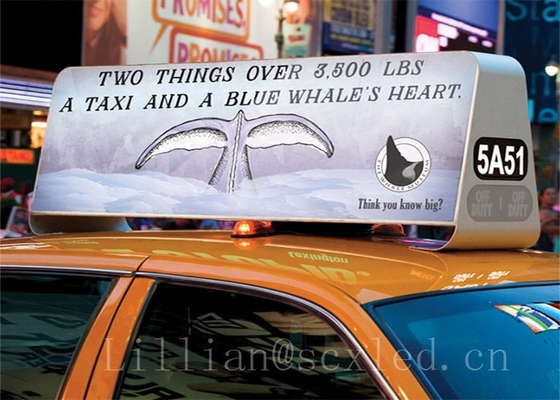

RGB Full Color Car LED Sign Display P8 Outdoor HD Waterproof High Resolution
Quick Detail:
(1) Self contained whisper-quiet generator.
(2) High resolution and good best view distance
(3) Show images, videos, texts, messages......
(4) 2-5 years warranty
Features:
(1) Brightness higher than 6000cd/m² and adjustable
(2) High refresh rate, 3000Hz or higher
(3) Can be divided into single-sided LED display, double-sided LED display and triple-sided LED display
(4) Consists of LED display, truck/trailer, generator, speaker and amplifier, computer and air conditioner (optional)
(5) High anti-shake
(6) Can be moved freely, becoming a beautiful scenery in the city
(7) The truck is equipped with a generator and can be moved to any location as needed without worrying about power shortage
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 40x20 | ||||
| Module size/mm | 256x128MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Welcome to visit our website and inquire more info!!!
