Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB/CE/ROHS/FCC/ISO/UL |
Model Number: | smd -p3.91 |
Minimum Order Quantity: | 12sqm |
---|---|
Price: | 430usd per sqm |
Packaging Details: | wooden case,flight case,it is up to you. |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5600 sqm month |
Application:: | Video | Panel Size:: | 500mm*500mm |
---|---|---|---|
Pixel Pitch:: | 3.91mm | Light Source:: | Waterproof LED Modules |
Product Name:: | P3.91 Indoor Led Dispaly Rental Led Video Wall Screen Panel | Power Voltage:: | 110V-240V |
Refresh Rate:: | 3840HZ | ||
Highlight: | led full color screen,indoor led billboard |
SCX LED portable aluminum panel high definition SMD 2021 full color P3.91 indoor church wedding stage led screen
Product Advantage
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon
under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
♦ Product specification
indoor SMD P3.91 | ||||||||||||||
Lamp size | 2121 | |||||||||||||
Resolution/mm | 3.91 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 65410/m² | |||||||||||||
Module resolution | 64x64 | |||||||||||||
Module size/mm | 250*250 | |||||||||||||
View distance | ≥0.5m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2500cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/32 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >4200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1000W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
Specifications
Item | Parameter | |||
Module specifications | Mode | p2.604 | p3.91(have stock) | p3.91 |
Module size | 250*250 | 250*250 | 250*250 | |
Module pixel | 96*96 | 64*64 | 64*64 | |
scan | 1/32 | 1/16 | 1/16 | |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | |
LEDs | SMD1515 | SMD2121 | SMD2121 | |
Max power consumption (W/piece) | 40W | 40W | 40W | |
Mask | have | have | have | |
Main Specifications | Cabinet size | 500*500 | 500*500 | 500*1000 |
Cabinet pixel | 192*192 | 128*128 | 128*256 | |
Density (dot/m2) | 147456 | 65536 | 65536 | |
Brightness(cd/m2) | 700-1000 | 700-1000 | 700-1000 | |
Max power consumption (W/piece) | 160W | 160W | 320W | |
Avg power consumption (W/piece) | 50W | 50W | 10W | |
Cabinet weight(KG) | 6KG | 6KG | 11KG | |
Cabinet material | Die-cast magnesium aluminum box | |||
IP grade | IP45 | IP45 | IP45 | |
Gray level | 16 bit | 16 bit | 16 bit | |
Fresh rate | 3840HZ | 3840HZ | 3840HZ | |
Best viewing distance | 2.6M | 4M | 4M | |
Power(V) | AC110-220V | |||
Working temperature | -20℃-50℃ |

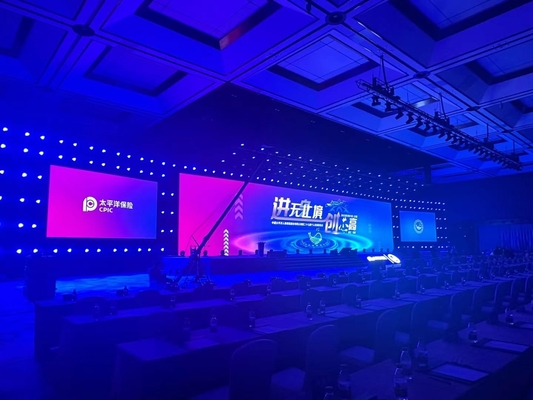

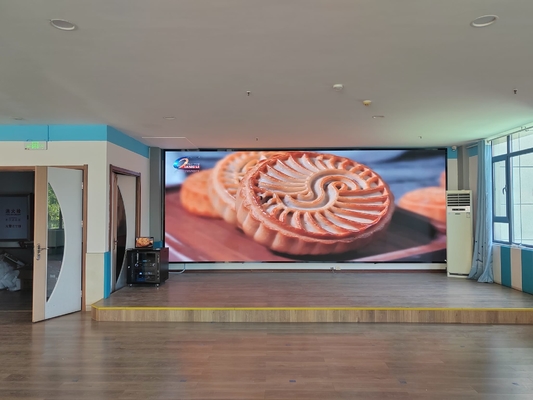

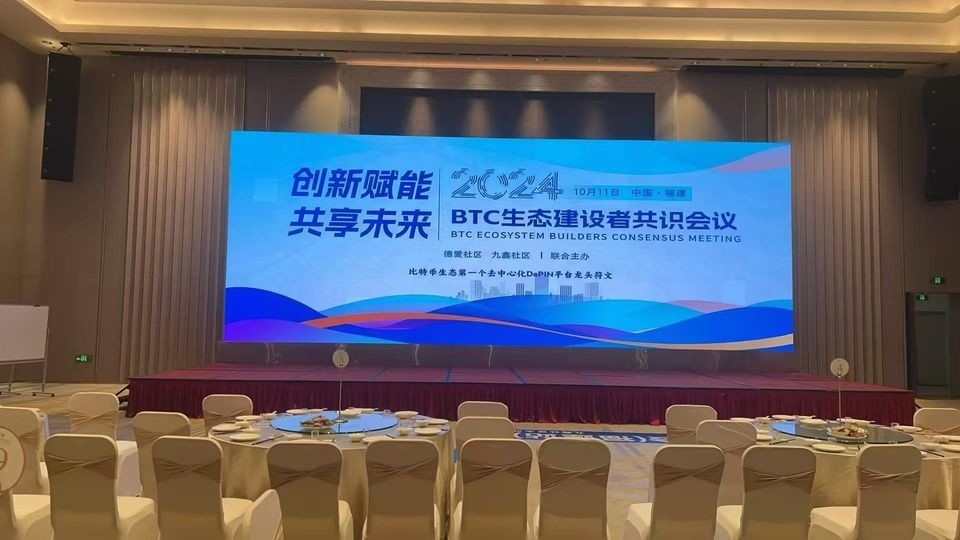

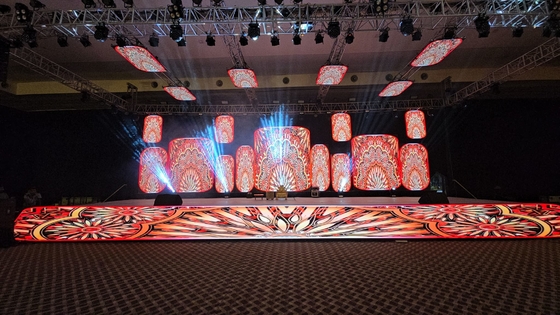

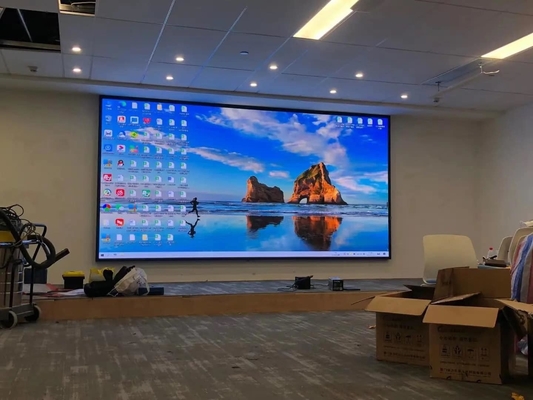

Our case
New rental screen in the design
1, Pluggable power box
2, High Precision Aluminum Cabinet
3, Signal Operation Design
4, High Strength Corner Protector
5, Two Size Supporting Mix Splicing
6, Creative Internal Curved Design
7, TUV Certificated Hanging Bar
8, High Stength Flightcase
Our Service
FAQ
1.How can i place an order?
Please provide the details of your requirement for Led screen, like:
A.Indoor or outdoor Led screen you prefer?
B.What’s the width and height ?
C.Fixed or rental installation?
Once receive your requirement ,will send you quotation, for further discussion, had better to contact with us in the e-mail , WhatsApp or skype.
2.What kind of led display we provide?
We can provide many types of led screen: for example: indoor Led screen,outdoor Led screen, fixed led screen, rental led screen, led poster, irregular Led screen ect.
3.What about delivery time for the order?
7~25 days, depends on the detailed requirements.
4.How about the warranty?
We have 2 years warranty and lifelong maintenance
5.What is your terms of delivery?
We accept EXW, FOB, CIF, CFR ,DDU. You can choose the one which is the most convenient or cost effective for you.
