Full color P3 led screen indoor led display rental 576x576mm led advertisement billboard for exhibition，3840hz refresh rate，1000nit brightness

Brand Name:	SCXK
Model Number:	smd -p3
MOQ:	12 sqm
Price:	460usd per sqm
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5930 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CB/CE/ROHS/FCC/ISO/UL

Application::

Disco, Party, Club, Bar,ktv, Wedding,Stage

Panel Size::

576X576MM

Brightness::

1000cd/sqm

Module Size::

192mm*192mm

Cabinet Material::

Die-casting Aluminum

LED Chip::

NationstarSMD2121

Refresh Rate:

3840hz

Curved:

Yes

Packaging Details:

wooden case，flight case，it is up to you.

Highlight:

led full color screen

indoor led billboard

Product Description

Product Description

			Project Name

			Parameters

			Unit Size

			(W)576 mm × (H)576mm

			Unit Pixel

			192×192

			Product Packaging

			Table-mounted (high stability)

			Luminous spot color

			RGB (National Star Tube Core)

			Single lamp color temperature

			Red: 1600 mcd, green: 3500 mcd, blue: 550 MCD

			Single lamp wavelength

			Red: 620-625 nm, green: 522-525 nm, blue 468-471 NM

			Driver chip

			CHPONE,ICN2026F,H.CEAAOH.1

			Unit Weight

			1 kg

			Arrangement way

			Vertical to ground, vertical installation

			Protection level

			(IP68 can be customized)

			Box material

			Iron Box

			Structural material

			Corrosion Resistant and High Strength Lightweight Aeronautical Alloys

			Screen thickness

			60mm

			Light emitting device

			SMD2121 1R1G1B

			Pixel spacing

			3 mm

			Perspective (Horizontal/Vertical °)

			160, 160

			Optimum sight distance

			3m~7m

			Suitable broadcast content

			HD Video, Image, Text

			Control mode

			On-line synchronous mapping/offline

			Driving mode

			Constant current /4 sweep

			Actuator

			16 bit serial

			Contrast degree

			116.6673611

			Resolving power

			110889 dots/㎡

			Peak luminance

			800 cd/㎡ (White equilibrium state)

			White point

			3200-9300k

			Intensity control

			5%~100%(Lossless gray level)

			Peak power consumption

			600 w/㎡

			Grayscale

			16384 (14 Bit)

			Frame rate change

			60 Hz

			Refresh frequency

			3840Hz

			Data interface

			DVI/HDMI

			Display mode

			1920*1080

			Operation mode

			7X24 hours continuous operation

			Electromagnetic compatibility

			Conduction Emission EN55022 CLASS-A,Harmonic Current IEC61000-3-2 Class-A

			Seismic capacity

			10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

			Working temperature

			-20 ~+65 ℃

			Working humidity

			10%~90%

			Storage temperature

			-55 ~ +120℃

			Scope of work

			Altitude 0-5000m

			MTBF

			>=5000H

			Device level

			Solid, Wide Temperature, Industrial Grade

			Cooling mode

			Structurally Enhanced Natural Convection

			Maintenance mode

			Patent technology, positive and negative two-way

			Service life

			≥100thousand hours(10years)

			Power supply voltage

			AC85~250V 50Hz~60Hz

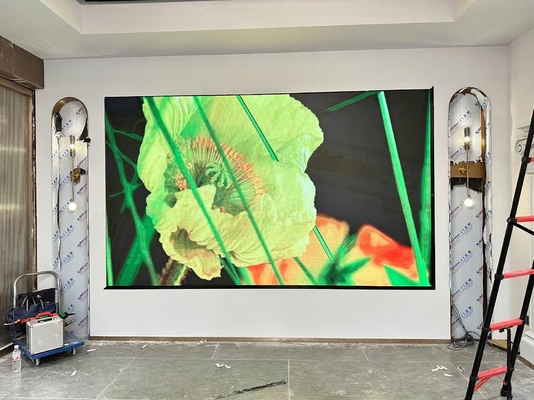

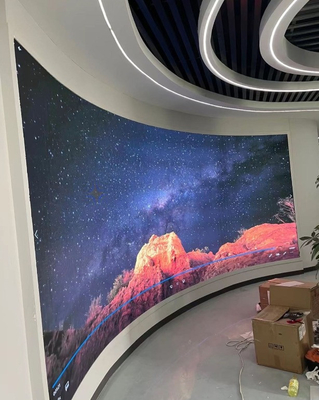

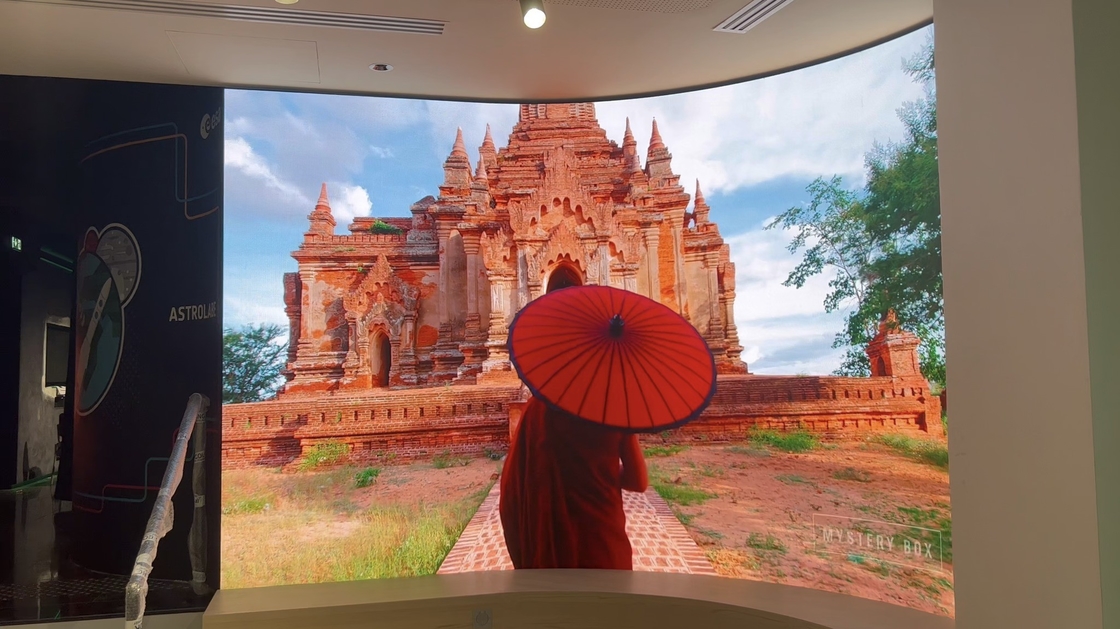

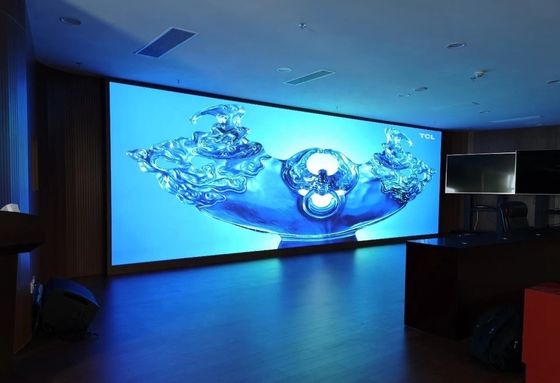

Our case

Recommend Products

Package&Delivery

Full color P3 led screen indoor led display rental 576x576mm led advertisement billboard for exhibition，3840hz refresh rate，1000nit brightness 2

Company Informaiton

Shenzhen ShiChuangXinke Electronics Co.,Ltd (SCX LED) was located in Shenzhen,We are the high technology enterprise Company,and specialized in research,development,production and sales the Rental LED display screen,Fix Install LED display sreen and Poster LED etc.

SCX LED is a full color LED display, LED screen and LED should products as the main business, scientific research, development, manufacturing, and engineering for the integration of high-tech enterprises. The company is located in shenzhen baoan district shajing, has a modern research and development base, equipped with the world advanced level of scientific research, production, analysis, testing equipment, has a high-quality scientific research team, committed to the development of the industry application in the field of photoelectric photoelectric products and services. Company strictly abide by the "honesty, keep promise" of the enterprise purpose, to build the company into a cross industry step by step, cross-regional, across the international large enterprises with comprehensive operation ability.

We warmly welcome clients from all over the world to contact us for more information,and we are looking forward to establishing long-term business relationship with you.

Full color P3 led screen indoor led display rental 576x576mm led advertisement billboard for exhibition，3840hz refresh rate，1000nit brightness 3

Our Certificate

Our Service

Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:

1. We provide detailed CAD drawing to customer for preparing metal structure.

2. We could dispatch our engineer to your place , guide installation and free training.

3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements

FAQ

Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
