Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 8 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning | Module Size: | 256x128mm |
| HS Code: | 8528591090 | Application: | Conference Room,stage Background,plaza,store |
| Driver IC: | MB5024/MB5124 | Warranty: | 2-3 Years |
| Cabinet Size: | 1024x768mm/512x512mm | Certificate: | CE RoHS FCC CCC TUV UL |
| Highlight: | advertising led display board,outdoor advertising led display |
||
Commercial Outdoor LED Display SMD P5/P6/P8 panel ,full color Screen
Advantage:
1. Use high quality LED chips with good anti-static properties.
2. Wide viewing angle, soft display image, you can see the video from any angle.
3. Built-in driver, multi-layer circuit structure design, even current distribution, low power consumption, fast heat dissipation.
4. ultra-high brightness, low light decay, high reliability.
5. Use anti-UV mask to protect the LED light.
6. Waterproof, moisture-proof, anti-corrosion. The display surface is encapsulated with epoxy resin.
7. high grayscale, high refresh rate, using fading technology, energy saving, low EMI, anti-leakage, support system multi-channel redundancy backup and chromaticity correction.
Product Series:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen.
Introduction:
The P8 outdoor LED screen utilizes both physical and virtual pixel technology for a clearer, more lifelike image without flickering or blind spots. The screen is designed to be waterproof and dustproof, and works well in both rainy and sunny days. It can be assembled and disassembled very easily, making it ideal for all kinds of advertisements.
It features perfect and realistic images, ultra-high brightness, high refresh rate, long service life, stable work, waterproof and so on.

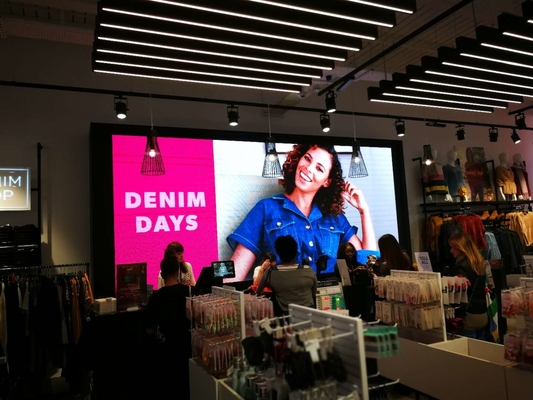

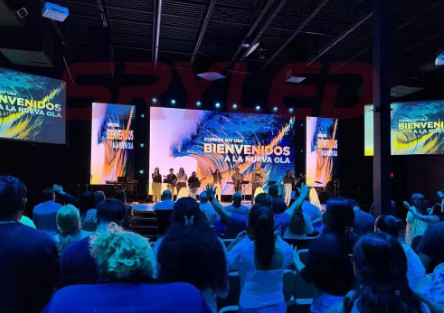

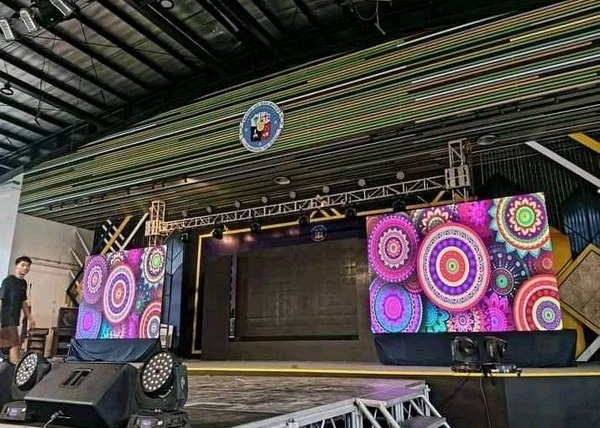

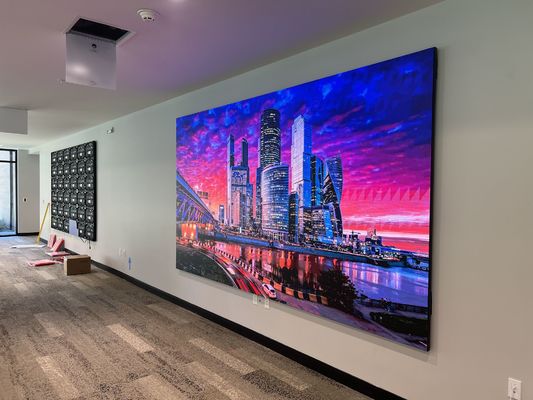

It is widely used in advertising, sports, industrial enterprises, transportation, stations, docks, airports, buildings, education systems and other public places.
Specifications :
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/m² | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) |
storing:10-95% |
||||
Our Services
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
