Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P5 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 8-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000 sqm month |
| Resolution/mm: | 5 | Pixel Configuration: | RGB 3 In 1 |
|---|---|---|---|
| Pixel Density/pixels/m²: | 40000 | Module Size/mm: | 320*160MM |
| View Distance: | ≥3m | Warranty: | 3years |
| Refresh Frequency: | >3840Hz | Waterproof: | IP65 |
| High Light: | car led message board,car led message display |
||

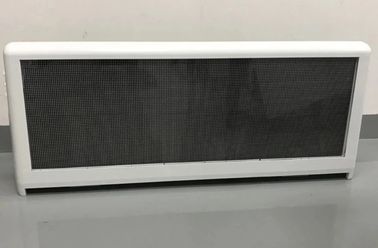

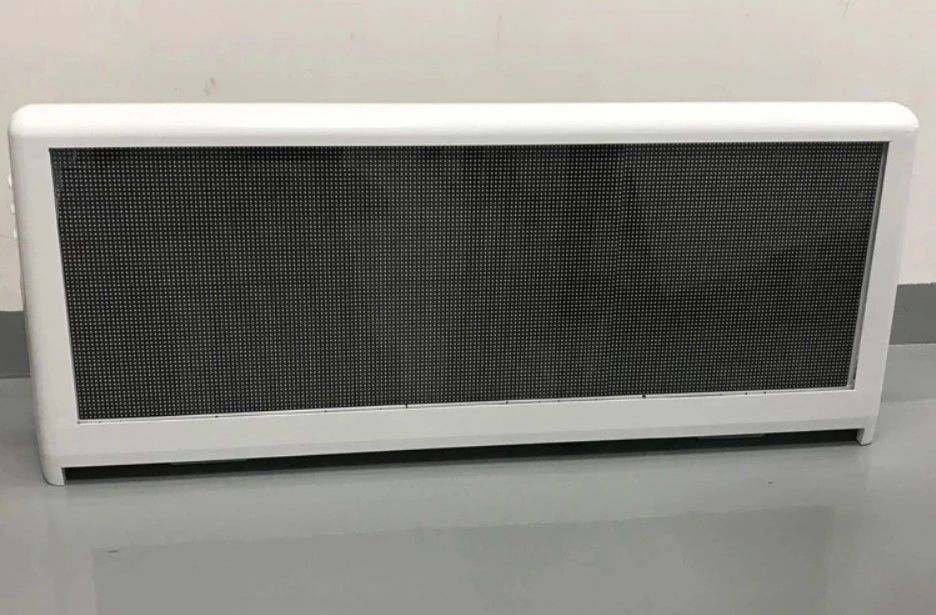

♦ Taxi LED Display
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Low power consumption.9-36V DC input.Vehicle battery is enough to make the taxi top LED sign work.
♦ Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.
♦ Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
Specifications
| Model Type: | P2.5 | P3 | P5 | ||
| Pixel Pitch | 2.5 mm | 3mm | 5mm | ||
| LED Type | SMD 2121 | SMD1921 | SMD 2727 | ||
| Pixel Density | 160,000 dot/ m2 | 111,111 dots | 40000 dot/ m2 | ||
| Module Size | 160*160mm | 192*96 | 160*160mm | ||
| Frame Size | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) | 820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) | ||
| Frame Materials | Aluminum | Aluminum | Aluminum | ||
| Screen Size | 960mm*320mm | 768mm*288mm | 960mm*320mm | ||
| Screen Resolution | 384*128 dot | 256*96 dots | 192*64 dot | ||
| Brightness | >=5000 nit | >=3500 nit | >=5500 nit | ||
| Contrast | >8000:1 | >8000:1 | >8000:1 | ||
| View Angle | 150°(H)/150°(V) | 150°(H)/150°(V) | 150°(H)/150°(V) | ||
| Scan Mode | 1/32 scan | 1/32 scan | 1/8 scan | ||
| Power Supply Input | DC9--24V | DC9--24V | DC9--24V | ||
| Max Consumption | 420w | 270w | 450w | ||
| Average Consumption | 130w | 90w | 150w | ||
| Optimal Viewing Distance | 1--20M | 3--20M | 5--50M | ||
| Driving ICs: | ICN2038 | ICN2038 | ICN2038 | ||
| MTBF | 10,000 Hours | 10,000 Hours | 10,000 Hours | ||
| Frame Frequency | 60-85HZ | 60-85HZ | 60-85HZ | ||
| Fresh Frequency | >1920HZ | >1920HZ | >1920HZ | ||
| Control Method | Asynchronous | Asynchronous | Asynchronous | ||
| Control Mode | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB | ||
| Temperature Operating | -40°~+70° | -40°~+75° | -40°~+75° | ||
| Working Humidity | 10%-90%RH | ||||
| Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew | ||||
| Power Protection | over-temperature/over-current/ over-voltage protection | ||||
| Package | Honeybox | ||||
| Package Dimension | 1100mm(L) X 500mm(H) X 270mm(W) | ||||
| Screen Weight: | 24 kg | 15kg | 23kg | ||
| Gross Weight: | 31 kg | 22Kg | 30kg | ||
| Certificates | CE. ROHS | CE. ROHS | CE. ROHS | ||
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Our team will be forever here to offer you full supports
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project!
For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.
Also, we can send engineers to your country if you need.
Q3: What’s your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Nova, Linsn or Colorlight control system.
For asynchronous control system: We use Onbon or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have nearly 10-year experience in producing Led Display with good reputation in this industry.
We would do 24 hours ageing to promise 100% non-dead chips before shipment.
