Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P1.667 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 3000sqs/month |
| Brand Name: | RGB LED Display | LED Chip: | Epistar |
|---|---|---|---|
| Waterproof: | IP34 | Operation Power: | 220V 60HZ |
| Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... | Module Size: | 200*150mm |
| Control System: | LSN | Scan Mode: | 1/30 |
| Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL | LED Type: | SMD2121 |
| Highlight: | rgb led screen,full color outdoor led display |
||

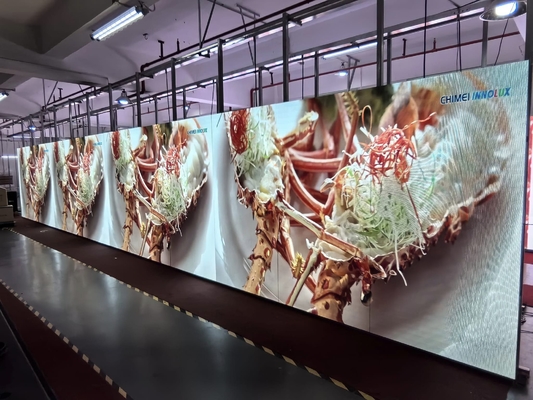

LSN System Epistar LED Chip P1.667 RGB LED Display High Brigthness 220V 60HZ for commercial rental advertising
Our service:
1.Before sales:
According to your demands, we will provide a set of LED display project solutions for you to choose,and discuss the best solution,then start the technology making.
2.In sales:
We will offer installaiton steps and guidance based on the
detailed installation environment including temp. humidity, installation venue, etc. If it is a big event, we can stay there with you to ensure everything goes well. Romote control will help us build communications and debug the control software for you no matter where you are.
3.After sales:
2 years of free maintenance since the delivery of LED display; we will provide free technology support through phone and email in time.Also,we can send our technicians to your side and help solving the problems if you pay the expense through the trip.
Short Description:
| Specifictions | |||||||||
| LED Lamps | Type | 3mm smd2121 | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 520-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 1.667mm | |||||||
| Module Size | 200mmx150mm | ||||||||
| Module Resolution | 120*90dots | ||||||||
| LED Cabinet | Cabinet Size | 400mmX300mm | |||||||
| Cabinet Resolution | 240pixels * 180pixels | ||||||||
| Cabinets Material | Die-cast Aluminum Cabinet | ||||||||
| LED Display | Pixel Density | 360000pixels/sq.m | |||||||
| Drive IC | ET6024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | ≥1200cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 120°(Horizontal),60°(Vertical) | ||||||||
| Best Viewing Distance | 2m~150m | ||||||||
| Max Power Consumption | 800 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 28Kgs/sq.m | ||||||||
| Refresh Rate | 480hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 10bits/1024levels | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 5,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP34 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -20℃~60℃ | ||||||||
| Drive Mode | 1/30 scan | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System |
LINSN Control System (sender,receiver,HUB with 75 interface,software) |
||||||||
| Software | LED Studio (LINSN) | ||||||||
| Input Signal |
MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/AS |
||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Feature:
1. Lightweight, easy to transport and install, saves labor costs, suitable for mobile display.
2. Beautiful appearance and simple structure.
3. With correct splicing, one person can install and disassemble without tools.
4. Humanized operation interface, fault indicator light, easy maintenance.
5. High debugging brightness, no damage to grayscale, and high-quality image debugging technology.
Application Places:

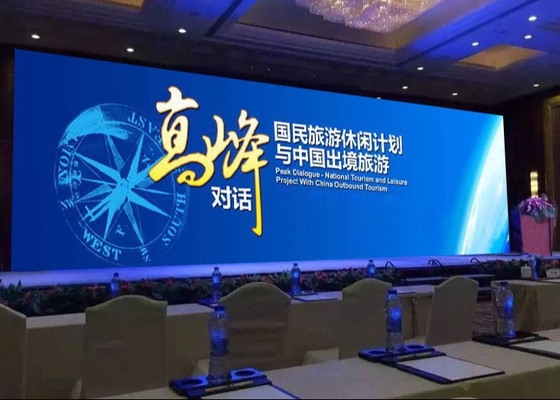

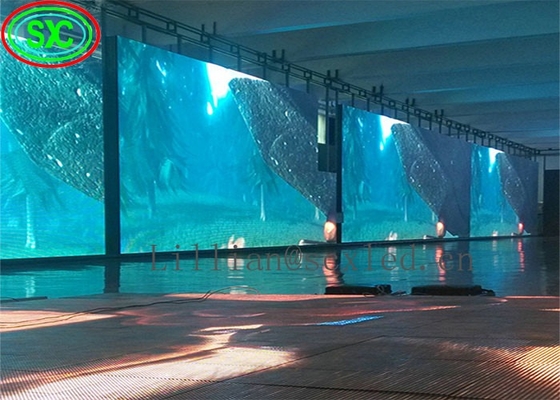

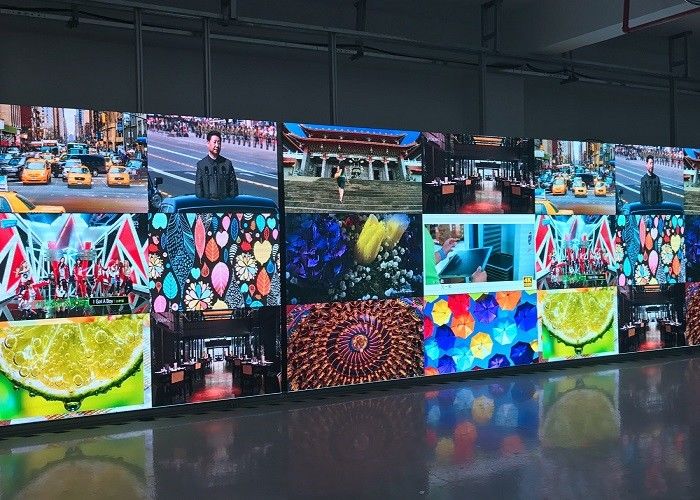

Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.
|
Q1: What's the warranty of your LED Display Screen ? |
|
Q2: What about your pre-sale service and post-sale service? |
|
Q3: Whats your payment term? How long it takes to delivery? |
|
Q4: What's the control system? |
|
Q5: How can you ensure the led display product quality? |
If you have interest,please contact us!!!
