Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | ISO,FCC,CE,UL |
| Model Number: | SCXK-P10 |
| Minimum Order Quantity: | 3 sqms |
|---|---|
| Price: | 490-520USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqms/month |
| Picth: | 10MM | Color: | Full Color |
|---|---|---|---|
| Module Size: | 320*160MM | Cabinet Size: | 960*960MM |
| Waterproof: | IP65 | Application Place: | Outdoor |
| Resolution: | 16*16 | Brightness: | 7500cd/sqm |
| Certificate: | ISO,FCC,CE,UL | ||
| Highlight: | full color led signs outdoor,outdoor full color led screen |
||
Nova p10 led sign display board screens module screen p5 p6 p8 outdoor fixed install
Product Description
Full Color HD Waterproof Wall mounted Fixed Outdoor Advertising Screen LED Display Panels
1. RGB dark gray processing, can display any color.
2. Support point correction function to ensure the consistency of color and brightness during use.
3. internal fixed reinforcement plate, tensile and anti-vibration, automatic heat dissipation, so that the operating life of up to 2 years. 4.
4. IP65 protection class, can face any bad weather.
5. Adopting professional aviation plugs as connectors to ensure quality and safety.
6. Adopting high quality raw materials, mature technology and large-scale production to ensure the quality.
Specification :
| outdoor P10 DIP LED screen Display | |||||
| Resolution/mm | 10 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 10000/square meter | ||||
| Module resolution | 16*16mm | ||||
| Module size/mm | 320*160mm | ||||
| View distance | 10-150m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 120(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP65 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) |
storing:10-95% |
||||

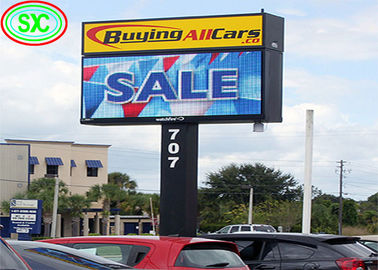

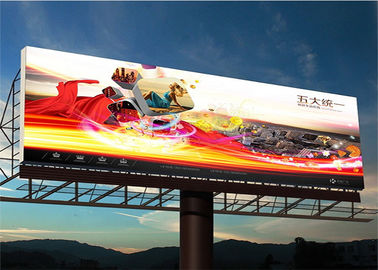

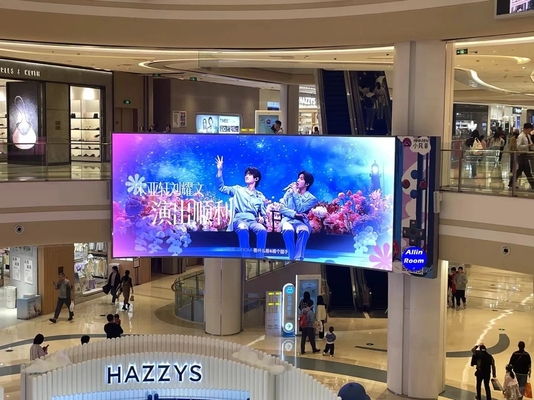

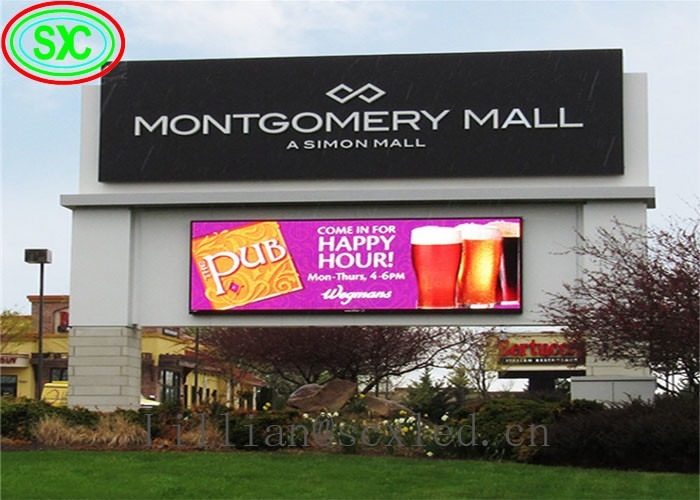

Detailed Images
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
