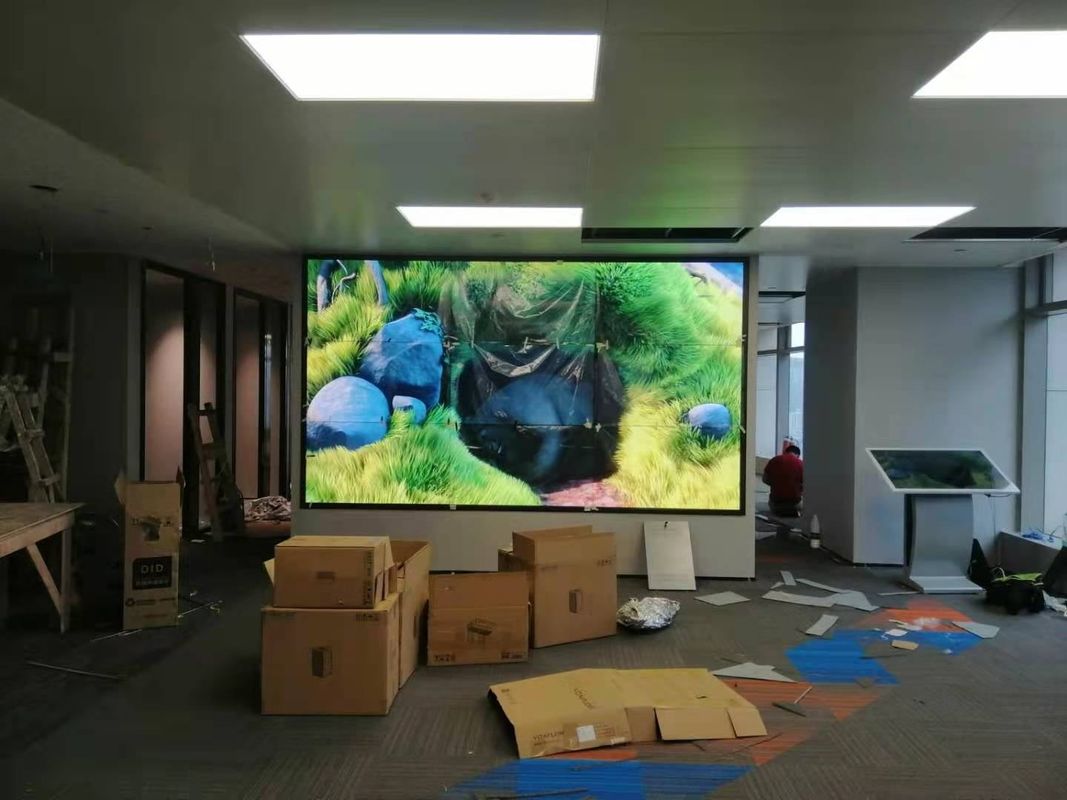

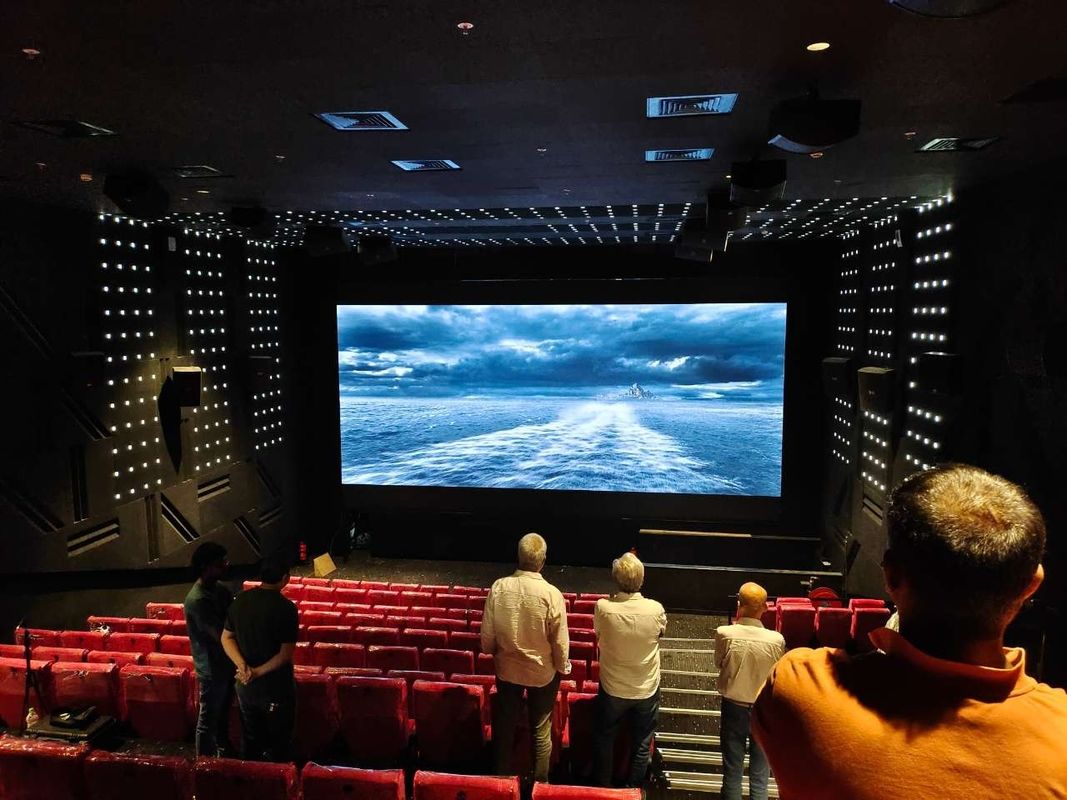

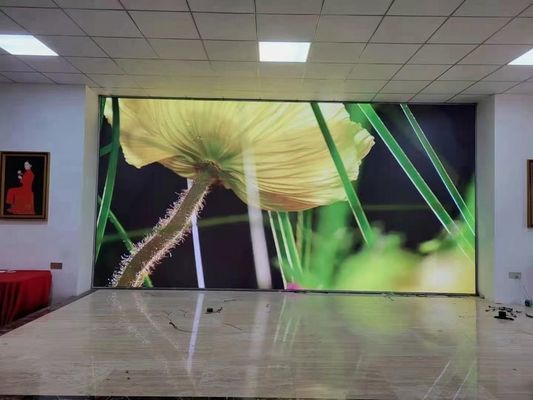

Indoor Full Color LED Display Panel P3 High Definition LED Video Wall for Church with Error Detection and Dual Back-up

Indoor Full Color LED Display Panel P3 High Definition LED Video Wall for Church with Error Detection and Dual Back-up

Brand Name:	SCXK
Model Number:	smd -p3
MOQ:	5 sqm
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CB/CE/ROHS/FCC/ISO/UL

Panel Size::

192x192mm

Cabinet Size::

576x576mm

Warranty::

3 Years

Pixel Density::

111111dots/m2

Module Resolution::

64x64dots

Life Span::

100000 Hours

Brightness:

1500cd/sqm

Packaging Details:

wooden case，flight case，it is up to you.

Highlight:

led full color screen

indoor led display screen

Product Description

SCX LED HD 192x192mm indoor led screen P3 full color led display panel led video wall for church

576x576mm portable aluminum panel high definition P3 SMD 2020 full color indoor stage led concert screens
Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.

Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..

. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

Dual back-up:both power supply and system dual back-up are optional,reliable performance.

High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,

the gray level is still high even under the condition of low brightness

Product Description

			Project Name

			Parameters

			Unit Size

			(W)576 mm × (H)576mm

			Unit Pixel

			192×192

			Product Packaging

			Table-mounted (high stability)

			Luminous spot color

			RGB (National Star Tube Core)

			Single lamp color temperature

			Red: 1600 mcd, green: 3500 mcd, blue: 550 MCD

			Single lamp wavelength

			Red: 620-625 nm, green: 522-525 nm, blue 468-471 NM

			Driver chip

			CHPONE,ICN2026F,H.CEAAOH.1

			Unit Weight

			1 kg

			Arrangement way

			Vertical to ground, vertical installation

			Protection level

			(IP68 can be customized)

			Box material

			Iron Box

			Structural material

			Corrosion Resistant and High Strength Lightweight Aeronautical Alloys

			Screen thickness

			60mm

			Light emitting device

			SMD2121 1R1G1B

			Pixel spacing

			3 mm

			Perspective (Horizontal/Vertical °)

			160, 160

			Optimum sight distance

			3m~7m

			Suitable broadcast content

			HD Video, Image, Text

			Control mode

			On-line synchronous mapping/offline

			Driving mode

			Constant current /4 sweep

			Actuator

			16 bit serial

			Contrast degree

			116.6673611

			Resolving power

			110889 dots/㎡

			Peak luminance

			800 cd/㎡ (White equilibrium state)

			White point

			3200-9300k

			Intensity control

			5%~100%(Lossless gray level)

			Peak power consumption

			600 w/㎡

			Grayscale

			16384 (14 Bit)

			Frame rate change

			60 Hz

			Refresh frequency

			3840Hz

			Data interface

			DVI/HDMI

			Display mode

			1920*1080

			Operation mode

			7X24 hours continuous operation

			Electromagnetic compatibility

			Conduction Emission EN55022 CLASS-A,Harmonic Current IEC61000-3-2 Class-A

			Seismic capacity

			10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

			Working temperature

			-20 ~+65 ℃

			Working humidity

			10%~90%

			Storage temperature

			-55 ~ +120℃

			Scope of work

			Altitude 0-5000m

			MTBF

			>=5000H

			Device level

			Solid, Wide Temperature, Industrial Grade

			Cooling mode

			Structurally Enhanced Natural Convection

			Maintenance mode

			Patent technology, positive and negative two-way

			Service life

			≥100thousand hours(10years)

			Power supply voltage

			AC85~250V 50Hz~60Hz

Our Service

Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:

1. We provide detailed CAD drawing to customer for preparing metal structure.

2. We could dispatch our engineer to your place , guide installation and free training.

3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements

About Payment

* Payment term: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
* Lead time: Normally in 15~18 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
* Sample policy:
1) We can produce by your samples or technical drawings. We can build the molds and fixtures.
2) We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
* Shipping port: Shenzhen, China
* Discounts: We offer discount for big quantity

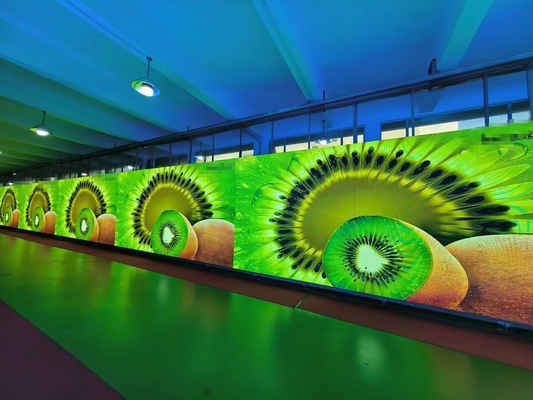

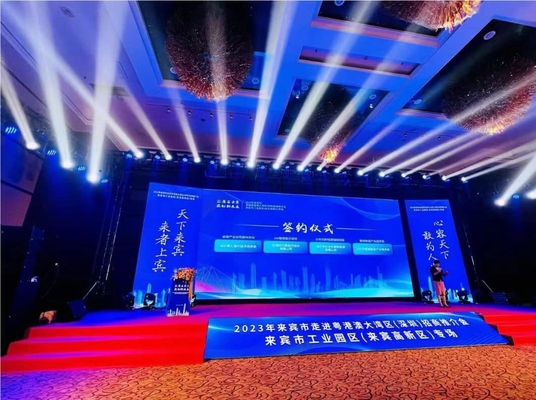

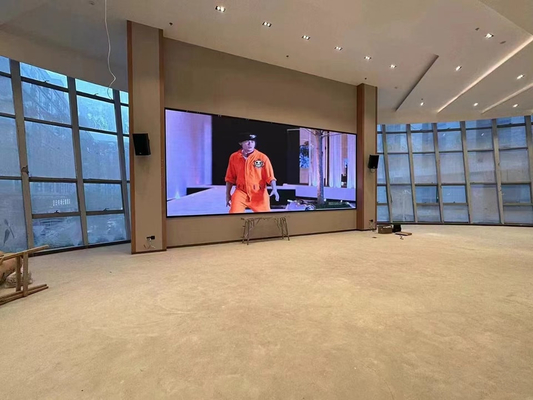

Our case

FAQ

Q1:LED display models are generally expressed in SCX, such as P2 P3 P4.....P8, P10, what does this mean?

A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

Q2:What pixel pitch should I choose on my display?

A:Using the SCX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?

A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4:How to install?

A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5:What about your quality?

A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.

Q6:What about the warranty?

A:Two year warranty

Q7:What about the lead time?

A:Orders less than 50 square meter display, lead time is 15 working days.

Q8:Can I order a sample?

A:Yes,We welcome customers to order samples to check our product quality of our products and service.
