Place of Origin: | China(Mainland) |
Brand Name: | SCXK |
Certification: | CE,ISO,DCC,UL |
Model Number: | SCXK-P10 |
Minimum Order Quantity: | Negotiations |
---|---|
Price: | negotiation |
Packaging Details: | Wooden and flight cases. |
Delivery Time: | 12-15 working days. |
Payment Terms: | T/T, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 5000 sqm/month |
Country Of Origin: | China | Brand: | SCXK |
---|---|---|---|
Brightness: | 5500cd/sqm | Cabinet Size: | 960*960mm |
Pixel Pitch: | 10mm | Module Size: | 320*160mm |
Pixel Density: | 10000dots/sqm | Warranty: | 3-5 Years |
Cabinet: | Iron | Certificate: | CE,ISO,DCC,UL |
Highlight: | perimeter led display,led perimeter advertising boards |

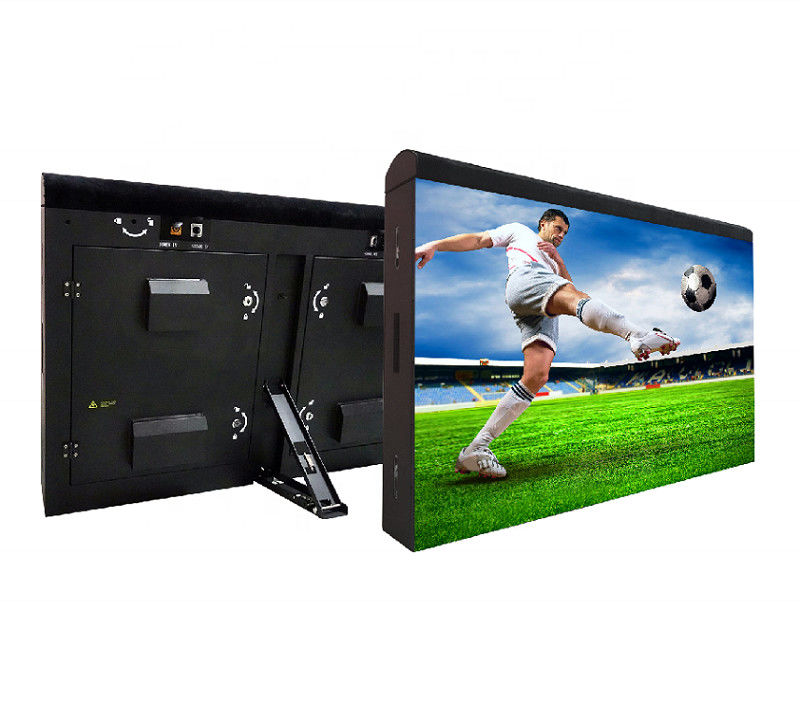

LED Display P10 IP65 Waterproof Basketball Bullfighting Stadium , LED Display P10 Indoor Front Maintenance
Ourdoor Series:
1.Outdoor full color led displays are widely used,especially in today's era of rapid development.
In the era of information explosion, the use of full-color display screen can be said to have reached the acme.
Major supermarkets, offline entities and public relations media will inevitably be used, especially in
big activities, such as award ceremonies, concerts, wedding entertainment and so on.
2.Another major advantage of full-color display is energy saving and environmental protection,
which is very in line with the theme of today's era, and is increasingly favored by the national government;
in general, many government projects are like this. So, to buy a product with good quality and good price
is your way to make money.
3.Our company has been established for more than ten years. We have rich product
experience and sales service. At present, our products have been exported to more than 20 countries overseas
and established long-term cooperation. In the future, I hope you are our next customer!
Our service:
1. Your inquiry about our products or prices will be responded within 24 hours. 2. Well-trained and experienced staff will answer all your inquiries in fluent English. 3. OEM and ODM, any customized screen you want, we can help you design and put into the product. 4. Provide distributors for your unique design and some of our current models. 5. Protect your sales area, design ideas and all private information
Specifications :
Outdoor P10 LED Display Screen | |||||
Resolution/mm | 10 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 10000/square meter | ||||
Module resolution | 32x16 | ||||
Module size/mm | 320x160 | ||||
View distance | 10-80m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | 5500cd/square meter | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/4 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >1200Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
Some customers' concerns:
1.Is it really possible to make money because of the large upfront cost?
-There is an old Chinese saying:won't loathe to give up the child set of wolves.
If you want to make your business,you should have the foresight,patience and investment.
But the most important is that you should choose the right product,like our products,it's suitable in many areas,
after choosing it,you should firmly believe the product cna bring you the profiel.
2.I've never heard your brand,how can i trust you?
-There are many things you've never seen before in the world,and in your home there must be somethings you bought also the small brand,but it is good to use.
We can't guarantee everything is too famous to let everybody know,but we can promise you the high quality and the reasonable price.The only thing you need to do is to give us the chance and try to trust us,we won't let you down!
Our company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.
We are also renowned for building custom LED Display that will meet your unique and specific need. More importantly, we are committed to providing quality products at competitive prices and superior customer services. With the quality management sustem ISO9001, the strong R&D and manufacturing group, SCXK became one of the leading companies or LED display industry in Shenzhen.
RFQ:
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Advantage
1) Displaying video motion pictures in high definition
With 4,096 steps of brightness control for each RED, GREEN and BLUE color,
our system is designed to provide pictures quality similar to that of analog formula, without losing image data.
2) Displaying multi(natural) colors
With 4,096 color grades of each RED, GREEN and BLUE color, our system is designed to
display multi-colors amounting 68.7 billion on the screen.
3) Windows based operating software
Our system is designed to be operated with MS Windows.
4) Providing delicate brightness adjustment
Our system is designed to provide delicate brightness adjustment(by each 0.025% steps)
5) Providing automatic brightness adjustment
Our system is designed to provide automatic brightness adjustment according to
the change of ambiance brightness.
6) Screen size adjustment
Our system is designed to adjust screen size not only to the standard ratio of 4 : 3 or 16 : 9
but also specific size as you want to use
