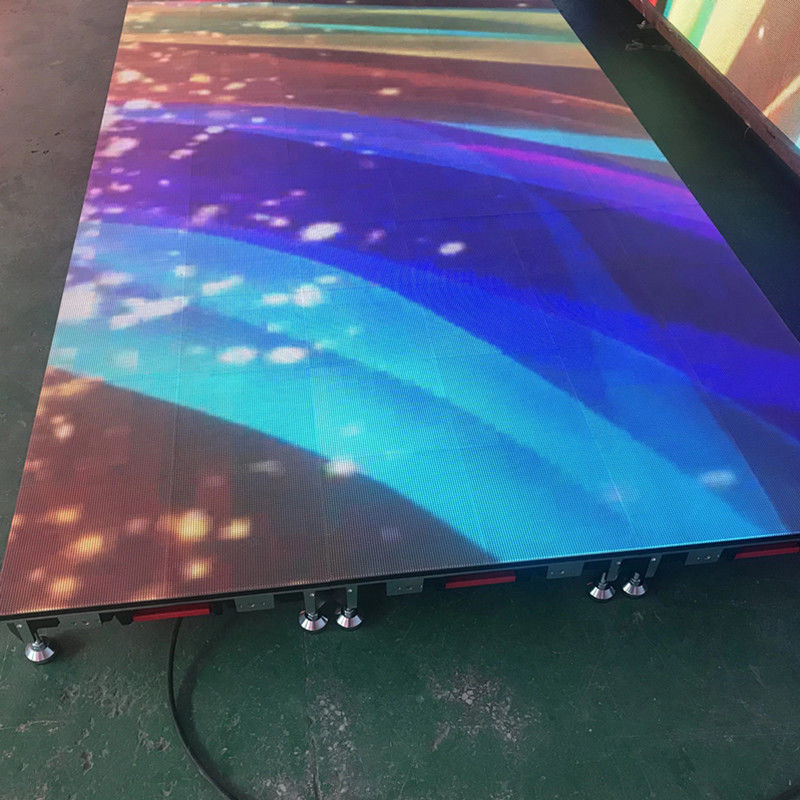

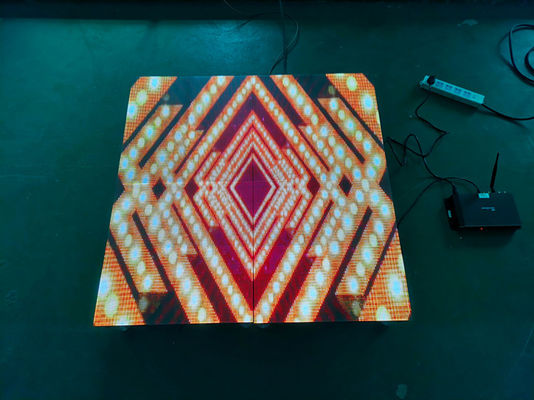

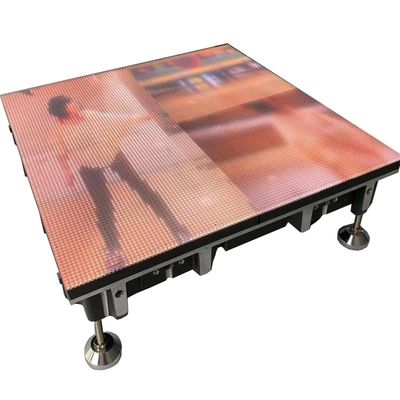

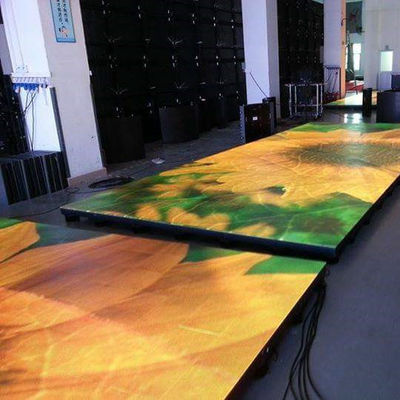

Pressure Sensitive Waterproof IP65 LED Dance Floor

Pressure Sensitive Waterproof IP65 LED Dance Floor

  • Pressure Sensitive Waterproof IP65 LED Dance Floor
  • Pressure Sensitive Waterproof IP65 LED Dance Floor
  • Pressure Sensitive Waterproof IP65 LED Dance Floor
  • Pressure Sensitive Waterproof IP65 LED Dance Floor
Pressure Sensitive Waterproof IP65 LED Dance Floor
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/CB/ROHS/FCC/ISO/UL
Model Number: SMD P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 6-16 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 6000sqm per month
Contact Now
Detailed Product Description
Item Name: P4.81 Outdoor Full Color Floor Led Display Refresh Rate:: 3840hz
Waterproof Level: IP68 LED Chip:: Epistar
Color:: Full Color Cabinet Size:: 500*500mm
Brightness: 5000cd/m2 Weight Bearing: 2000kg
Warranty: 5 Years
High Light:

interactive dance floor

,

light up dance floor

Full color LED Dance Floor Video Screen P4.81 Rental Outdoor LED Display 500mm*500mm



♦ Description

1. Established since 2009. We have 10 years experience in manufacturing, designing & selling LED display and modules.

2. The product pixel pitch series ranges from P1.25 to P16, screen series including indoor&outdoor fix install display, stage rental screen, poster screen, lamp-post screen, football screen, dual-side advertising screen, pharmacy LED sign, flexible screen, dance floor screen,scrolling screen, etc.

3. Scree keeps ranking top 10 in recent 5 years in Shenzhen LED industry.

4. We own 2 plants with production area 38,000 square meters, 100 SMT machines keep running day and night.

5. Number of employees is stable at around 250, and the age is between 20-50.

6. Great production capacity. Monthly 10,000 square meters LED displays, weekly30,000 pcs LED modules.

7. Short lead time. Module delievery time 5-7 days, LED display delievery time 10-20 days.

8. We have passed CCC/CE/FCC/BIS/RoHS/ISO9001 certification. As well, our products have won prizes and praises from our clients domestic and overseas.

9. Free technical consult and support, customized design support, quick response within 24 hours.

10. The company has planned to expand production scale in the next 2 years.

Pressure Sensitive Waterproof IP65 LED Dance Floor 0







♦ Product specification



LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 4.81mm
2 Resolution 52x52dots
3 Module size 250x250mm
Cabinet Specifications
1 Cabinet Size(W*H) 500x500mm
2 Cabinet Resolution 104x104dots
3 Pixel Density 43222dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color /Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 13 scaning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 — 40℃
15 Humidity-Operating 10 - 99%
16 Features anti-slip,anti-collision,big load-bearing capacity
17 Usage led floors, led wall background
18 Display function txt, picture, video

Pressure Sensitive Waterproof IP65 LED Dance Floor 1

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Pressure Sensitive Waterproof IP65 LED Dance Floor 2

♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

Pressure Sensitive Waterproof IP65 LED Dance Floor 3





♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

Pressure Sensitive Waterproof IP65 LED Dance Floor 4
