Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 3SQM |
|---|---|
| Price: | USD 2000-1000 |
| Packaging Details: | Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sqm per month |
| Step Pixels: | 2.5mm | LED Shape & Size: | 2.5mm SMD 2121 |
|---|---|---|---|
| Module Dimension: | 320 Mm X 160 Mm | Module Resolution: | 128 X 64 |
| Screen Dimension: | Customized | Led Chip: | Epistar |
| Highlight: | led stage display,stage led display |
||
Small Pixel Pitch High Resolution GOB waterproof Dustproof Dampproof 4K 8K Stage LED Screens
Product Advantage
1. GOB LED screen is waterproof, moisture-proof, dust-proof and UV-proof
2. Can be used indoors or outdoors.
3. The front of the module is coated with a special material to protect the LED from moisture.
4. The back of the module is coated with a conformal coating to ensure that the LED screen is waterproof.
Features
1. High-speed refresh.
2. Grayscale control.
3. Non-linear correction.
4. Fast moving image compensation.
5. Color coordinate transformation and space control.
6. Improve clarity.
7. Unique brightness and contrast adjustment method.
8. White balance color temperature selection and white field.
9. Single module board structure.
10. LED discrete control.
Pamameter
| Module Parameters | |||||
| Pixel Pitch | 2.5mm | ||||
| Pixel Configuration | 1R1G1B | ||||
| Density | 160000 pixels/sqm | ||||
| LED Lamp | SMD2121 | ||||
| Module Size | 320*160mm | ||||
| Module Resolution | (W)128Pixels * (H)64Pixels | ||||
| Working Voltage | DC5V | ||||
| Scan Mode | 1/32 Scan | ||||
| Drive IC | MBI 5124(Can be customized) | ||||
| Port Type | HUB75 | ||||
| Screen Parameters | |||||
| Cabinet Size | (W)640*(H)640mm | ||||
| Cabinet Material | Die-casting aluminum | ||||
| Cabinet Weight | 5.76KG | ||||
| Cabinet Resolution | 256*192 Pixels | ||||
| Module Qty | 8 pcs | ||||
| Power Supply | 200W | ||||
| Working Voltage | AC220V±10% | ||||
| Max Power Consumption | 600W/sqm | ||||
| Ave Power Consumption | 200W/sqm | ||||
| Brightness | 800 Nits | ||||
| Refresh Rate | 1920Hz/ 3840Hz | ||||
| Frame Frequency | 60Hz | ||||
| Grey Scale | 14 bit | ||||
| Brightness Level | 256 levels | ||||
| Best View Distance | 2.5M-50M | ||||
| View Angle | 120°(Horizontal); 120°(Vertical) | ||||
| Protection Degree | IP30 | ||||
| Working Temperature | -20℃ ~ +60℃ | ||||
| Relative Humidity | 10%-95% | ||||
| Operation system | WIN7/WIN8 | ||||
| Control Method | Synchronous or Asynchronous | ||||
| Control System | NovaStar | ||||
| Receiving Card | MRV336 | ||||
| Control Distance | 100M(Ethernet cable); 20KM(Optical fiber cable) | ||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||

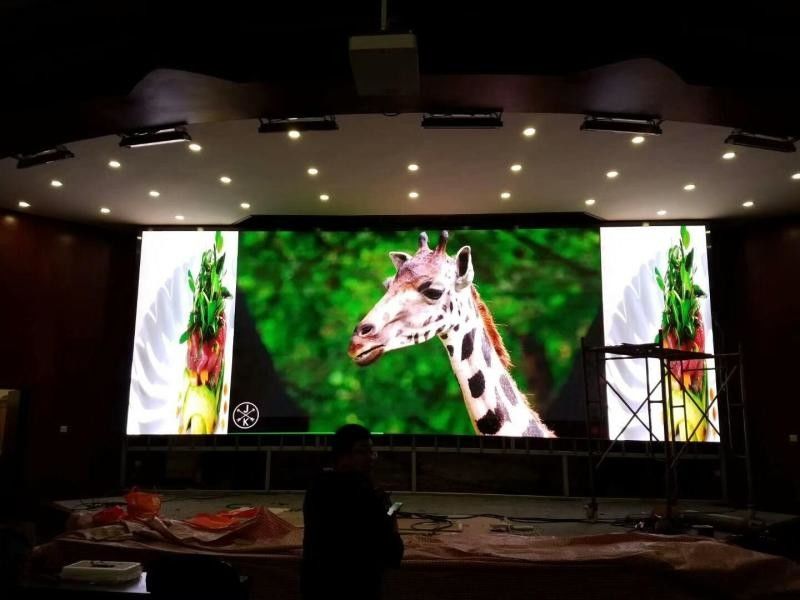

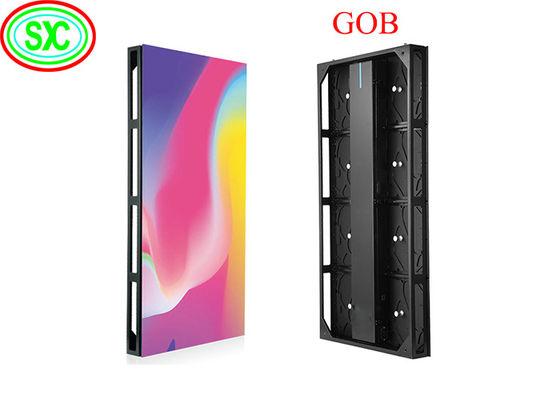

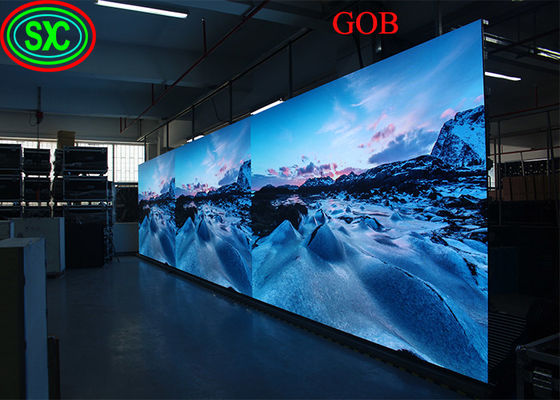

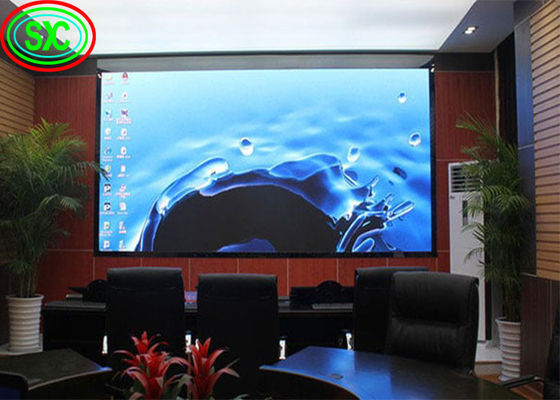

Detailed Picture
Our Service
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
