Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen

  • Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen
  • Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen
  • Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen
  • Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen
Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen
Product Details:
Place of Origin: China(Mainland)
Brand Name: SCXK
Certification: CE,ISO,FCC,UL
Model Number: SCXK-P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 5 sqms
Price: 900-1000USD/sqm
Packaging Details: Wooden and flight cases,it's up to you.
Delivery Time: 12-15 working days after receiving your down payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000sqms/month
Contact Now
Detailed Product Description
Type: Full Color Led Display Application Place: Indoor
Pixel Pitch: 4.81MM Resolution: 52*52
Module Size: 250*250MM Pixel Density: 43222dots/sqm
Cabinet Size: 500*1000MM Brightness: 7500cd/sqm
Waterproof: IP65 Kind Of Cabinets: Iron/Die Casting Cabinet
Highlight:

P4.81 led stage panels

,

1/13 stage led video wall


High Definition P4.81 Stage LED Screens Video Display , 1/13 Scan Mode Indoor Outdoor CE ISO FCC UL

Introduction of the cabinets:

We have two kinds of cabinets, one is iron cabinet and the other is die-casting cabinet.

Iron cabinets are used for fixed installations, are relatively heavy and can be used both indoors and outdoors;

Die-cast cabinets are used for rental installations and are relatively lightweight,
Can also be used indoors and outdoors, such as wedding banquets, concerts and so on.

Therefore, when used indoors, attention should be paid to the brightness, resolution, especially the scanning mode,

Because the viewing distance is very close, the video needs to be vivid;

For outdoor use, waterproof performance is obviously important due to weather and some other uncertainties.
The place of application is also an important reference factor.
If used for concerts, the pitch needs to be relatively small, but not too small.
If used for concerts, the pitch needs to be relatively small, but not too small, about 5 mm.

Most importantly, there are three things you should know before you buy: indoor or outdoor, fixed or rental, and what kind of picture you want.
Thank you for your valuable time and we are waiting for your online consultation!



Specifications of product:

Indoor P4.81 LED screen Display
Resolution/mm 4.81
Pixel configuration 1R1G1B
Pixel density/pixels/m² 43222/square meter
Module resolution 52*52mm
Module size/mm 250*250mm
View distance 5-100m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/13
Fresh rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Waterproof IP65
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing)

storing:10-95%



Our Cases:

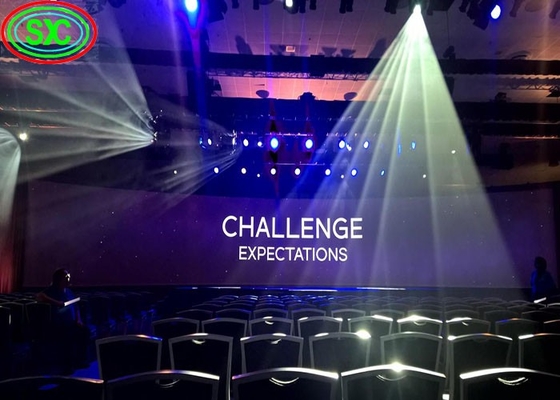

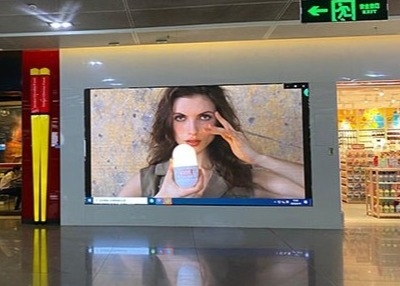

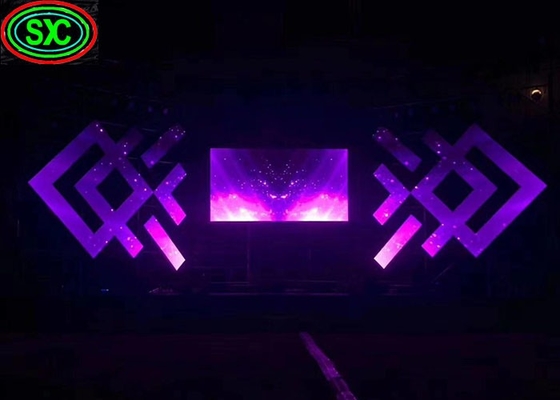

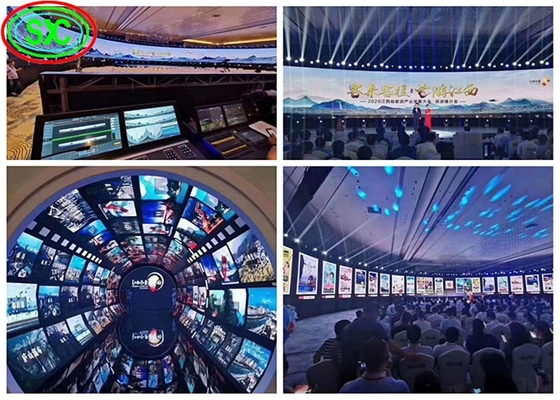

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 0

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 1



Our company:

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 2

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 3





Our Service:

1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your inquiries in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributor ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information.

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 4

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 5

Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 6


The payment details:
1.We can accept the T/T,Western Union,30% in advance,balance 70% paied before the delivery.
2.Delivery time(lead time): 12-15 working days after we receive down payment.
3.Warranty: Guaranty period for free maintenance within 2 years after delivery.
4..Free training: You can send engineers to our factory for training who have knowledge of electronics. We will provide free training about how to run, maintain and repair LED display.
5.Technical Support: We can send our engineer to your city for guidance,but you must help us to get visa and pay related cost such as round-trip fly ticket,hotel,food other cost when our engineer arrive at your city.You also pay our engineer USD100.00/day/person.
Waterproof Rental Display Programmable HD P4.81 1/13 Scanning Platform LED Screen 7


FAQ:

Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use ONBON or XIXUN control system.

Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you .


Welcome to visit our website and inquire us more info,waiting for you all the time!!!
