Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FC,SASO |
| Model Number: | P1.56 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sqm per month |
| Step Pixels: | 1.56mm | LED Shape & Size: | 1.56mm SMD 1010 |
|---|---|---|---|
| Module Dimension: | 200 Mm X 1520 Mm | Module Resolution: | 128 X 96 |
| Viewing Angle: | Horizontal 140° Vertical 120° | Driving Method: | 1/32 |
| Pixel Density: | 410914dots/m2 | Maintainance: | Front Service |
| Highlight: | P1.56 rental led display,3840HZ led scrolling display |
||

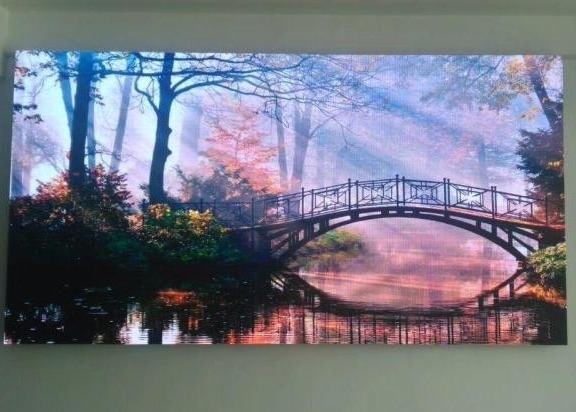

New 2020 GOB COB high refresh rate over 3840HZ Exhibition LED Screen P1.56 fixed led video panel HD Full Color
GOB Technology Introduction

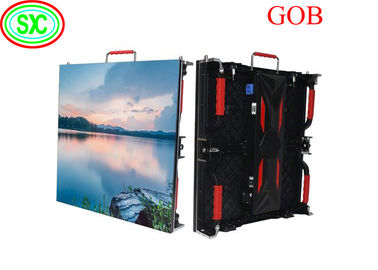

1) Adopt pure black 1010 led, good color consistency. 2) 400mm(W)*300mm(H) die-cast aluminum box design for fixed installation and front maintenance. 3) Lightweight (6kg) and easy to install, support front maintenance 4) Gob-board glue, extend the life of led lamp, anti-collision, dustproof, surface led waterproof, keep the surface flat and seamless. 5) Pure black led, display image color is richer, color is softer, no reflection. 6) High contrast 8000:1, 3840HZ refresh, can achieve 16:9 golden ratio perfect display.
Pamameter
| Pixel Pitch(mm) | 1.56mm |
| LED Type | GOB |
| LED Configuration | 1R1G1B |
| LEDs | SMD1010 |
| Refresh Rate(Hz) | ≥3840Hz |
| Module Resolution (PXxPX) | 128*96 |
| Module Size (mmxmm) | 200mm*150mm |
| Max Current | 6A |
| Input Voltage | 5V |
| Module max power consumption | 6.5W |
| Scanning mode | 1/32 |
| Horizontal Viewing Angle(Deg) | ≥170(+10/-10) |
| Vertical Viewing Angle(Deg) | ≥170(+10/-10) |
| Brightness | >1200 CD/m2 |
| Grey Scale | >14bit |
| Cabinet Resolution(PXxPX) | 384*216 |
| Cabinet Size | 400mm*300mm |
| Cabinet Density (dot/sqm) | 49152 Dots/m2 |
| Malfunction Dot Rate | <0.3% |
| Power Supply | DC 5V |
| Working Temperature(℃) | -40-60℃ |
| Working Humidity | 10%-90% RH |
| Lifespan(H) | ≥50,000 |
16:9 Golden Ratio Design, 2k 4k 8k Perfect Display
16:9 cabinet size design, point-to-point matching 2K/4K/8K standard resolution; front maintenance design, wall-mountable installation, easy installation and maintenance; automatic brightness adjustment technology, ensuring viewers in any environment to watch comfortably; support power and signal redundancy backup to meet the needs of high security applications.
FAQ
A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
A:Order less than 100 square meter led time take 15 working days
A: Low MOQ, 1 square meter or a moudle checking is available
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
