P2 GOB LED Display Full Color Indoor HD Video Wall 300x400mm Cabinet

P2 GOB LED Display Full Color Indoor HD Video Wall 300x400mm Cabinet

Brand Name: SCXK
Model Number: P2
MOQ: 6 sqm
Price: negotiation
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CB,CE,ROHS,FCC,SASO,UL
Application:
Rental/Fixed Installation Usage
Cabinet Size:
300*400mm
LED Chip:
Epistar
Pixel Density:
250000dots/sqm
ReFresh Rate:
1920Hz-3840Hz
Led Lamp:
Nationstar Or Kinglight
Scan Mode:
1/32 Scan
Control System:
LSN/NOVA
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

P2 led matrix display

,

GOB outdoor led display

Product Description
Small Pitch GOB P2 HD Indoor Full Color Fixed Installation Video Wall Screen
Product Attributes
Attribute Value
Application Rental/Fixed Installation Usage
Cabinet size 300*400mm
LED chip Epistar
Pixel density 250000dots/sqm
ReFresh rate 1920Hz-3840Hz
Led Lamp Nationstar or Kinglight
Scan mode 1/32 Scan
Control system LSN/NOVA
Product Description

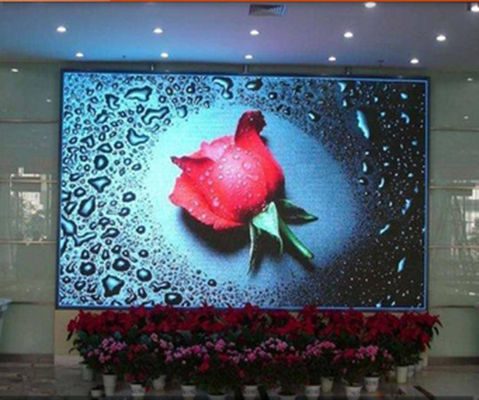

The Digital Small Pitch GOB P2 HD 4K Indoor Full Color Fixed Installation Video Wall Screen is designed for superior visual performance in indoor environments.
Applications
Ideal for malls, stages, chain stores, hotels, public buildings, bars, and restaurants. Its thin profile and lightweight design enable easy installation without occupying excessive space.
Key Features
  • Classical and stable structure with reliable performance
  • Dual patent-protected strong locks for enhanced security
  • Die-casting aluminum body for lightweight portability and precise installation
  • Compatible with existing controllers without screen anomalies
  • Supports multiple installation methods (hanging/ground mounting)
  • Tool-free assembly and disassembly
Product Specifications
Specification Value
Model Indoor SMD P2
Lamp size 2121
Resolution/mm 2
Pixel configuration RGB 3 in 1
Pixel density 250000/m²
Module resolution 128x64
Module size 320x160mm
View distance ≥2.5m
Brightness adjustment Single point adjustable
Color adjustment Single point adjustable
White balance brightness >1000cd/㎡
Color temperature 6500K-9500K
Viewing angles 120° horizontal, 60° vertical
Signal processing 10 or 14 bit
Grey scale 1024x1024x1024 to 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/13
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjustment range 255 steps with no grey loss
Out of control point <1/10000
Working hours ≥72hours continuous operation
MTBF >5000hours
Lifetime 100,000hours
Operating temperature -20°C to 45°C
Power consumption Max: 1100W/㎡, Avg: 280W/㎡
System protection Moistureproof, dustproof, anti-corrosion, anti-static, anti-vibration
Enhanced Features
Waterproof, dustproof, moisture proof, anti-collision, anti-UV, and secure LED mounting to prevent falling.

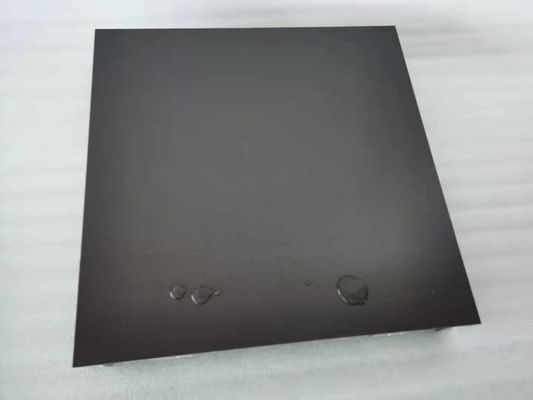

Waterproof Design
P2 GOB LED Display Full Color Indoor HD Video Wall 300x400mm Cabinet 0
Production Process
  1. Incoming Inspection
  2. SMD
  3. Plug-in
  4. Wave Soldering
  5. After Welding
  6. Testing
  7. Semi Finished Aging
  8. Module Assembly
  9. Gluing
  10. Finished Aging
  11. Detection Finishing Warehousing
Packaging and Shipping
Available in wooden cases or flight cases. Shipping options include sea, air, or DHL express.
P2 GOB LED Display Full Color Indoor HD Video Wall 300x400mm Cabinet 1
Why Choose Us
Continues Quality: Over 10 years of LED display manufacturing experience with regularly updated equipment and standardized production.
Competitive Price: Large-scale production capacity and efficient modular production enable cost-effective solutions.
Fast Delivery: Committed to promised delivery dates with emergency inventory procedures when needed.
Perfect Service: Comprehensive pre-sales consultation and dedicated after-sales support with product usage tracking.
About Us
Established in 2005, we serve clients in over 50 countries worldwide. As a high-tech enterprise, we combine scientific research, design, production, and system integration with a professional team of engineers and 24/7 support services.
