P8 SMD3535 LED Display All-Weather Full-Color High-Definition Energy-Saving LED Screen



Hot sales Customized waterproof Outdoor P8 256 x128mm SMD3535 LED Display Panel /LED display screen





Feature:



1) High and adjustable intensity, can meet customer requirements according to the environment.

2) Best equality, excellent solution to mosaic problem, excellent light consistency

3) Graphic and text, clear, delicate and real display effect.

LED curtain

4) Horizontal line viewing angle up to 110 degrees, vertical line viewing angle up to 60 degrees

5) Each LED light can be repaired, low maintenance cost, easy maintenance.

6) Usually used in sports, advertisement, bank, stock exchange, station, harbor, indoor P6 display screen, etc.

outdoor SMD P8
Resolution/mm	8
Pixel configuration	1R1G1B
Pixel density/pixels/m²	15625/m²
Module resolution	32x16
Module size/mm	256x128
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/4SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

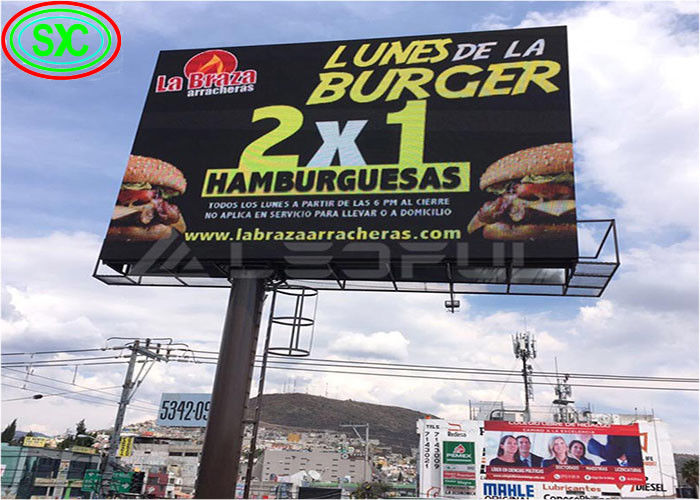

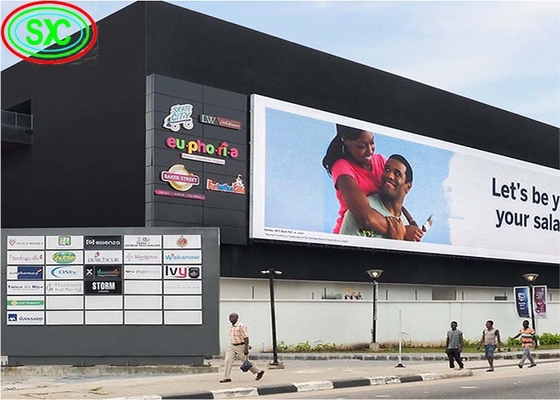

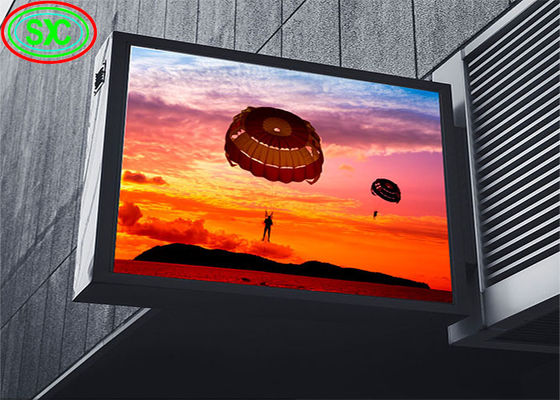

Our Cases:





Other products:

Indoor fixed LED display: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED display: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED display: P5, P6, P8, P10
Outdoor rental LED display: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED display: P1.6, P1.9
Front service maintenance LED display: P6.67, P8, P10
Stadium perimeter LED display: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10





Spare parts warranty period Configuration Guidelines:



(1) Adequacy: For specific equipment, we have sufficient spare parts to ensure that the equipment can be replaced as soon as possible when it fails;

(2) Necessity: Based on previous maintenance experience, the spare parts we configure are all key parts of the equipment to ensure economic configuration;

(3) Economical and practical: In order to handle faults in the shortest time, the spare parts we configure are all complete modules or units. Through our training, owners can easily replace spare parts to ensure the normal operation of the system.



Packaing and Delivery:





Buying Guides:

In order to provide you with a suitable solution, please follow the guide below:



1,Starlight effect or video effect you need.



2,Size (width and height)



3,Installation location. (preferably with pictures)



4,Usage. (What you want to do with the LED Drapery).





After-Sale Service:

1. Three year warranty , Lifetime free maintenance.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on

6. Special service for big project, such as stadium, exhibitions, squares and so on.





Certificate:



____________________________________FAQ_________________________________________

1.Except this model, are there any other models?

---yes, For indoor led screen we have p1.25,p1.56,p1.67,p1.87,p2, p2.5 p3 ,p3.91, p4 ,p4.81, p5 ,p6,p8,p10

For outdoor led screen we have p3,p3.91,p4,p4.81,p5, p5.95,p6,p6.67,p8, p10



2.Are you factory? and your warranty?

yes we are 10 years factory, 2 years warranty and lifetime maintenance



3.What's the function of your led screen?

It supports videos, flash, WAV/MIDI, PPT, images and so on



4.What's your delivery time?

Wthin 15-25 days after receiving deposit



5.What's your package and shipping way?

Goods are packed with wooden case or flight case; delivered by air or sea





Welcome to visit our website and inquire us more info,waiting for you all the time!!!
