Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Model Number: | SCXK-P6 |
| Minimum Order Quantity: | customized |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight case ,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Brand Name: | Statium LED Display | Material Cabinet: | Aluminum |
|---|---|---|---|
| Pitch: | 6mm | Module Size: | 192*192mm |
| Control System: | LSN | Pixel Density: | 27778dots/sq |
| Working Voltage: | DC5V | Brightness: | ≥7500cd/sq |
| Warranty: | 3-5years | Application Place: | Dance Floor,stadium,airport,Shopping Mall Advertising |
| Certificate: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL | ||
| Highlight: | P6 sport perimeter led display,Brightness led board stadium |
||

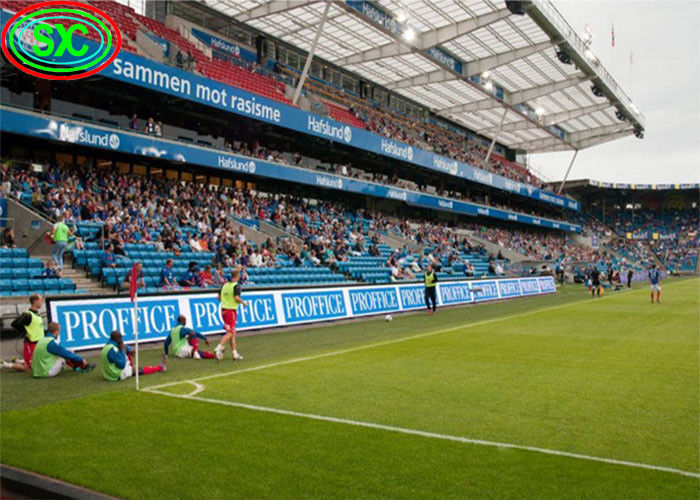

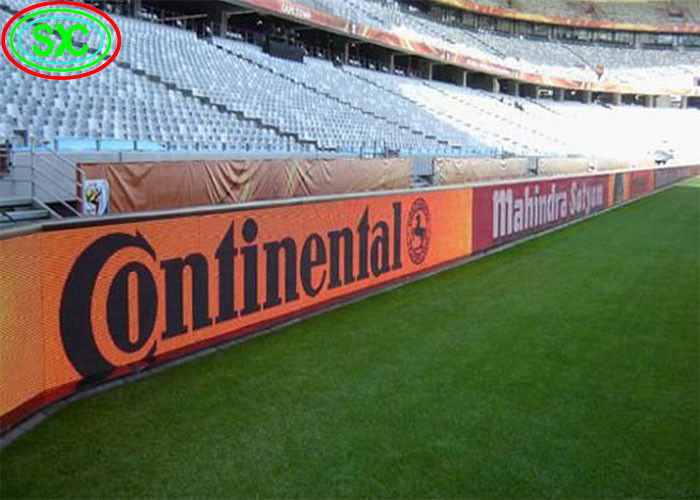

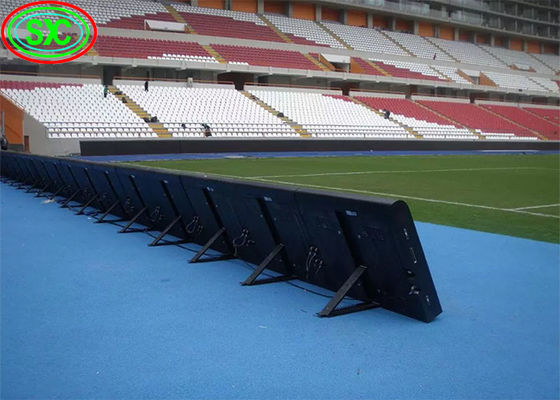

News Full Color High Brightness Outdoor P6 Football Stadium Perimeter LED Display Screen
Info about company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd has been specialized in LED field since 2005. We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
Specifications :
| P6 Full Color Statium LED Display | |||||
| Resolution/mm | 6 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 27778/square meter | ||||
| Module resolution | 32x32 | ||||
| Module size/mm | 192x192MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >600Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Applications:
Airport indoor full-color LED display
Railway station indoor full-color LED display
Entertainment bar indoor full-color LED screen
Stadium indoor full-color LED display
Museum indoor full-color LED display
Auto exhibition LED display
Meeting room indoor full-color LED video display
Shopping mall indoor full-color LED display
