Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P5 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | 544-657USD/sqm |
| Packaging Details: | Woodenn and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Color: | 1R1G1B | Pixel Pitch: | 5mm |
|---|---|---|---|
| Cabinet Size: | 640*640mm | Module Size: | 160*160mm |
| Cabinet Marerial: | Aluminum | Brightness: | 5000cd/sqm |
| Waterproof: | IP65 | Application Place: | Outdoor |
| Warranty: | 2 Years | Application: | Live Events Led Display,public Security,wall Advertising,wedding Entertainment,Outdoor Advertising Led |
| Certificate: | CE,ISO,FCC,UL | ||
| Highlight: | 320*160mm led stage panels,P5 led backdrop screen rental |
||
Hotselling P5 Indoor Stage Background 320*160mm Rental LED Screen Display For Wedding
Stage LED large screen can cut a screen into multiple video screens.
Display screen can be independent, combination, any combination of playback related to the big background.
Large screen can be partitioned according to the requirements of the performance, and can realize the graphic overlay, background screen.
Can be played or synthesized by the video signal processor, can play the character close-up and action details.
Text scrolling playback, or interpolation playback, can move the video screen horizontally.
It can also be upgraded and downgraded to text, personalised video screens, brighten and beautify stage backdrops and stage floors.
Additional requirements and advantages for the owner can be met through software design and system control.
Frame structure design is available.
Convenient and reliable disassembly and easy maintenance.
Suitable for all kinds of large-scale entertainment venues and large-scale events.
Specifications :
| Stage P5 LED Display Screen | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160 | ||||
| View distance | 5-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >5000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

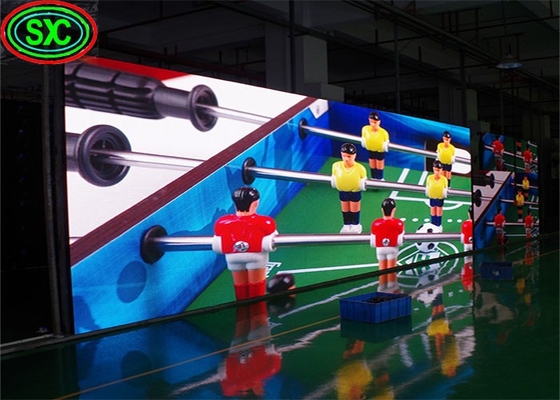

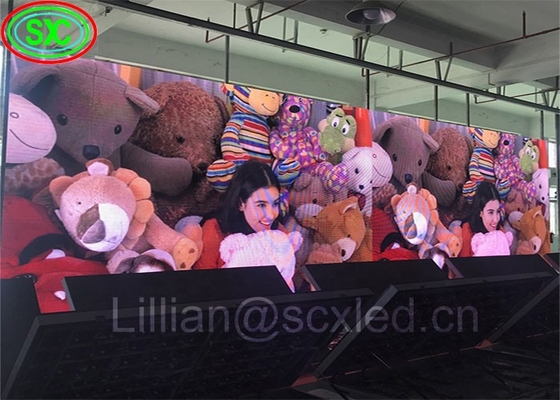

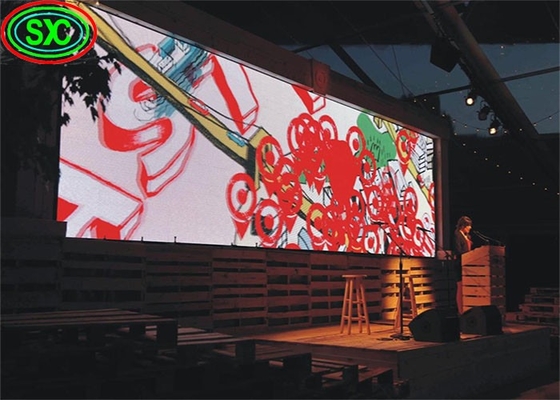

Our cases:
The Role of Stage LED Large Screen:
1. Enriching the content of the performance;
2. Create associations and invigorate the atmosphere;
3. Variety and flexibility;
Applications:
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
