Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P3.91 |
| Minimum Order Quantity: | 5m² |
|---|---|
| Price: | 900-1100USD/m² |
| Packaging Details: | Wooden and fligt cases,it's all up to you. |
| Delivery Time: | 7 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000M²/Month |
| Color: | Full Color | Application Place: | Outdoor |
|---|---|---|---|
| Pixel Pitch: | 3.91mm | Module Size: | 250*250mm |
| Cabinet Size: | 500*500mm | Module Resolution: | 64*64 |
| Brightness: | ≥5000cd/m² | Pixel Density: | 65410dots/m² |
| Waterproof: | IP65 | Control System: | Nova |
| Highlight: | P4.81 indoor led display board,P3.91 indoor led display screen |
||

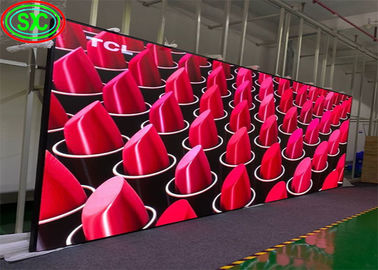

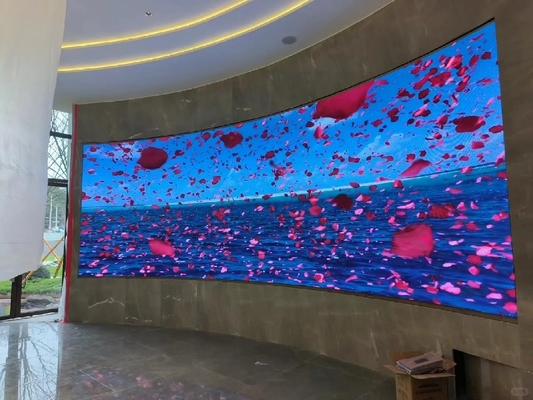

P3.91 Curved FULL COLOR LED screen 500*1000mm aluminum cabinet SCX Led display P4.81 indoor and outdoor
This is an indoor range and can also be used semi-outdoors, we have a wide range of types to provide you with plenty of choice.
Abundant choices.
Indoor series are P1.667, P1.923, P2, P2.5, P3, P3.91, P4, P5, P6, P10.
The outdoor series are P3.91, P4, P4.81, P5, P5.95, P6, P6.67, P8, P10, P12, P16, P20.
At present, in addition to these tips, we have other products, such as poster screen, transparent screen and so on.
If you are interested, please contact us and we will reply you within 24 hours.
Thank you for your support and welcome to send us your inquiry!!!!
Specifications:
| Resolution/mm | 3.91 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 65410/square meter |
| Module resolution | 64*64 |
| Module size/mm | 250*250 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/16) |
| Frame rate | 60Hz |
| Refresh frequency | >1000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <700W |
| Average power:/square meter | <220W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Waterproof | IP34 |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC220V/60HZ |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) |
storing:10-95% |
Features:
1) High refresh rate, high brightness, high contrast, no delay or smearing under direct sunlight.
2) Energy saving: low current, high brightness lamp, equipped with PFC switching power supply, saving 30% of electricity
3) Adjustable brightness to adapt to environmental changes
4) Wide viewing angle: wide horizontal and vertical viewing angle, suitable for wide horizontal
5) Environmental protection, anti-static, dustproof, good heat dissipation, high cost performance.
6) Error detection and monitoring: can monitor internal temperature, voltage, cooling fan, etc., and automatically detect errors.
7) High reliability: using distributed scanning technology and modular design technology, higher reliability and stability.
8) Stable and reliable system: strong anti-interference ability, long service life, can work continuously for more than 24 hours, and easy system operation.
9) Good effect: using point-to-point correction technology, the image is clearer and the sense of hierarchy is stronger.
10) The display module is easy to install and maintain.
Info about us:
SCXK has been specialized in LED field since 2005. We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year our products exported overseas and are popular among many foreign countries,also in our own country you can find the many application places.Such as station,airport,church,shopping mall,commercial centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics provide a wide range of eye-catching and energy saving LED screen solutions to industrial,commercial and governmental markets worldwide.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
