Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color

Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color

  • Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color
  • Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color
  • Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color
  • Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color
Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P5
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 3-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6200 sqm month
Contact Now
Detailed Product Description
Pixel Density:: 40000 Dot/ M2 Pixel Configuration:: 3-in-1 1R1G1Bscreen Size:
Screen Size:: 960*320mm Brightness:: 5500nits
Scan Mode:: 1/8 Scan Max Consumption:: 450W
Useful: LED Display For Taxi Use Display Function:: Video
Pixels:: 5mm Warranty: 5 Years
LED Chip:: Epistar
High Light:

P2.5 led car message sign

,

P3 car led display screen

Taxi Top P5 P3 P2.5 LED Digital Display Full Color 3G WIFI GPS Outdoor Taxi Top Moving Advertising Billboard





♦ Our Production Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Humanized operating interface with breakdown indicator lights, easy to maintain.

3. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.



Our Service:

Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.

After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.



1.High Resolution 2.5,3,5 mm pixel Spacing
2.Intensity >=5000 nit
3.Intelligent Power Supply Management
4.Quick installation and maintenance
5.Multiple control Options
6.Made of high quality LEDs
7.Lower Power Consumption
8.IP65 grade

Product Description

Taxi top led display has different pixel pitch for your choose, P2.5 P3 P3.33, and P5. P2.5

Outdoor Digital Wireless Car Roof Sign Advertising Screen Taxi Top LED Display



It's outdoor waterproof advertising sign, double side 2 face full color car roof advertising screen. Slim cabinet with size 960x320mm, We also can do custom size, large size or mini size depends on your requirement.

Function & Feature



1. Car battery protection

With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.


2. Overvoltage and over current protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.


3. Low power consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.



4. High brightness

Above 5000nits, it is visible under sunlight.

5. Cooling system design



6. 100% vibration Testing

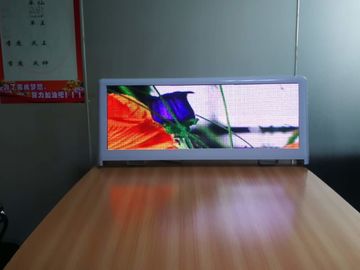

Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color 1



2.Specifications:

Model Type: P2.5 P3 P5
Pixel Pitch 2.5 mm 3mm 5mm
LED Type SMD 2121 SMD1921 SMD 2727
Pixel Density 160,000 dot/ m2 111,111 dots 40000 dot/ m2
Module Size 160*160mm 192*96 160*160mm
Frame Size 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) 820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top) 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top)
Frame Materials Aluminum Aluminum Aluminum
Screen Size 960mm*320mm 768mm*288mm 960mm*320mm
Screen Resolution 384*128 dot 256*96 dots 192*64 dot
Brightness >=5000 nit >=3500 nit >=5500 nit
Contrast >8000:1 >8000:1 >8000:1
View Angle 150°(H)/150°(V) 150°(H)/150°(V) 150°(H)/150°(V)
Scan Mode 1/32 scan 1/32 scan 1/8 scan
Power Supply Input DC9--24V DC9--24V DC9--24V
Max Consumption 420w 270w 450w
Average Consumption 130w 90w 150w
Optimal Viewing Distance 1--20M 3--20M 5--50M
Driving ICs: ICN2038 ICN2038 ICN2038
MTBF 10,000 Hours 10,000 Hours 10,000 Hours
Frame Frequency 60-85HZ 60-85HZ 60-85HZ
Fresh Frequency >1920HZ >1920HZ >1920HZ
Control Method Asynchronous Asynchronous Asynchronous
Control Mode 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB
Temperature Operating -40°~+70° -40°~+75° -40°~+75°
Working Humidity 10%-90%RH
Screen Protection Waterproof, rust-proof, dust-proof, anti-static, anti-mildew
Power Protection over-temperature/over-current/ over-voltage protection
Package Honeybox
Package Dimension 1100mm(L) X 500mm(H) X 270mm(W)
Screen Weight: 24 kg 15kg 23kg
Gross Weight: 31 kg 22Kg 30kg
Certificates CE. ROHS CE. ROHS CE. ROHS
Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card, the cost will more economic.
The disadvantage of the wifi controller is that you have to be close to the screen when you need to update the advertisements.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.

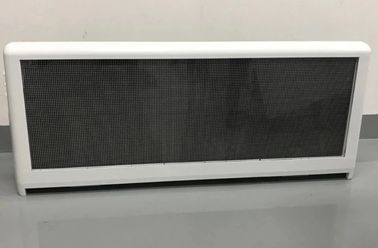

Car taxi roof led sign controlled by wireless 3G 4G WIFI, with high resolution, it can display HD digital advertising vidTaxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color 2eo.
taxi to dvertising led display screens with high brightness, we use outdoor SMD led module panels, 2 sides visible under sunlight.
led taxi car top ads billboard
Packaging & Shipping



Honeycomb box covered with eco-friendly paper and pearl cotton is placed inside, which protects every display.

During the transportation process, the display will not be damaged by collision.

Our Services

1. We have a professional engineers team

All of them have experienced more than 5 years in the LED display industry. They are specialists, try their best to make your dream come true.



2. OEM&ODM friendly

If you are just starting a business, you want to conduct small business with your own brand, we could help you that. Just let us know your specific requirements.



3. Anything could be customized

Most of our customers are always asking if they could add something from them, or just add their logo on somewhere, our responses are always yes. We could create the screen shape for you, some logo on your product, even could fit your products in it. How amazing that is!



4. Intimate services

Our sales will reply to every question every day, 7-24, even if you couldn't speak English so well, we also have other language support.



5. Detailed guidance

When you get your product, we have detail guidance inside of the boxes, guidance videos are provided too. But if you still couldn't figure out how to install it, we could also make the video call to help you understand it and make it.



6. Responsible after services

If the product is under the warranty, once it broke, you could replace it with some spare parts, and send the broken part back, we will fix it and resend it to you.

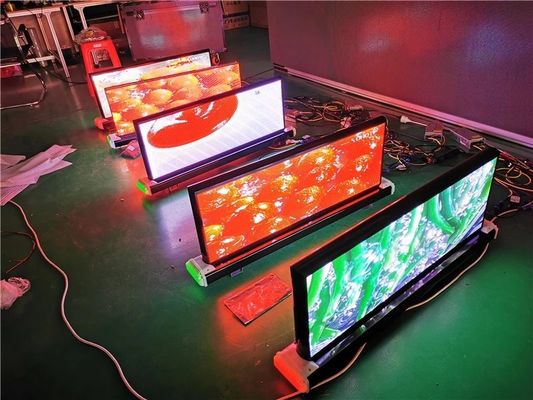

Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color 3



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Taxi Top 3G WIFI GPS P5 P3 P2.5 LED Digital Display Full Color 4

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ Frequently Asked Questions



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
