| Brand Name: | SCX |
| Model Number: | SCX-P10 |
| MOQ: | Negotiations |
| Price: | 412-578USD/sqm |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm/month |
Shopping Mall Waterproof Ads Outdoor LED Display HD Full Color P10 Wholesale Wifi Video Led Display Module
Products function introduction:
1) High brightness, adjustable, easy to install and remove, according to the environment to meet customer requirements.
2) Best uniformity, well solved mosaic and flicker problems, excellent light consistency
3) For images and text, with clear, complete and real display effect
LED Drapery Screen
4) Horizontal line viewing angle is large, up to 110 degrees, vertical line viewing angle is large, up to 60 degrees
5) Each LED light can be repaired, low maintenance cost, easy to repair, do not have to worry about after-sales problems.
6) Usually applied to sports, advertising, banks, stock exchanges, stations, harbors, indoor P6 display screens, etc.
Our service:
1.Your inquiry about our products or prices will be answered within 24 hours.
2.Well-trained and experienced staff with patience for details answer all your inquiries in fluent English.
3.OEM&ODM, any screen you customize, we can help you design and put into production.
4.Distributor service for your unique design and some of our existing models.
5.Protect your sales area, design ideas and all private information.
Sepcification:
| P10 Advertising LED Dislplay | |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/square meter |
| Module resolution | 32x16 |
| Module size/mm | 320x1601MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >600Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Iron Cabinet:
![]()
![]()
Aluminum Cabinet:
![]()
![]()

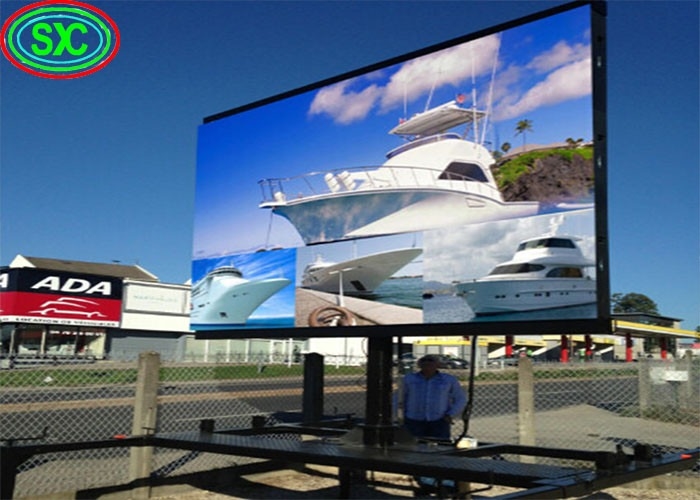

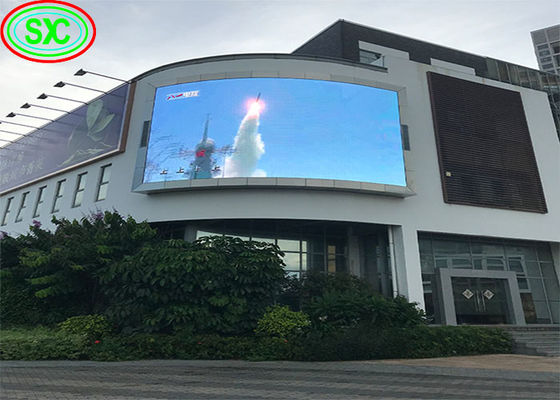

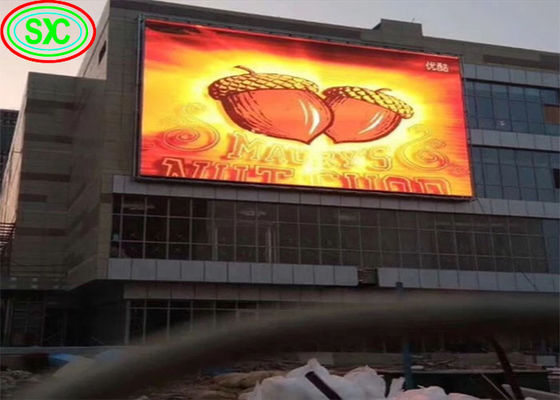

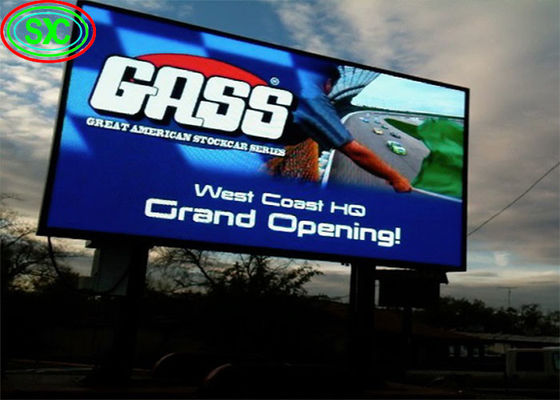

Our results:
![]()
![]()
![]()
![]()
![]()
![]()
Our company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.
We are also renowned for building custom LED Display that will meet your unique and specific need. More importantly, we are committed to providing quality products at competitive prices and superior customer services. With the quality management sustem ISO9001, the strong R&D and manufacturing group, SCXK became one of the leading companies or LED display industry in Shenzhen.
![]()
![]()
Normal questions:
Q1: Can you provide OEM or ODM service?
Yes, our company specializes in OEM and ODM services with excellent R&D team, perfect quality and lighting solutions, just tell us what you think.
Q2: What kind of packaging is usually used for this product?
Usually we provide air box packaging (wooden box and flight case are available)
Q3: Can I print my logo on the lamps?
A: Yes, we can print your logo on the lamps for free.
Q 4: Do you offer a warranty on your products?
A: We offer a three-year warranty. The defective rate of our products is less than 0.2%.
Q 5: How long does it take to produce after an order is placed?
A: It depends on the quantity of the order. Most online wholesale orders are shipped within 3-5 days after payment is received.
Q 6: What payment methods do you accept for full orders?
We offer a variety of payment methods including PayPal, Visa, MasterCard,Trade Assurance, Western Union, and Wire Transfer (T/T).
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
