Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P6 |
| Minimum Order Quantity: | 1 sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm per month |
| Pitch: | 6mm | Tube Chip Color: | 1R1G1B |
|---|---|---|---|
| Module Size: | 192x192mm | Pixel Density: | 27777/m2 |
| Pixels: | 32x32dots | Cabinet Dimension: | 576x576mm |
| Driving Mode: | 1/16 Scan | Cabinet Material: | Die Casting Aluminum |
| High Light: | P5 rental led display,P4 led display screen rental |
||
Pixel density 32x32 Dots P3/P6 Indoor Led Screen Die casting aluminum 576*576 cabinet
LED display features:
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance.
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.
Module Parameter:
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3528 |
| Module size | 192x192mm |
| Module resolution | 32*32dots |
Cabinet Parameter:
| Cabinet size | 576x576mm |
| Cabinet material | die casting aluminum |
| Cabinet weight | 6.5kg |
| Ingress protection | IP43 |
Whole Screen Parameter
| Pixel density | 27778 dots/m² |
| Brightness | ≥1500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 6m |
| Max.power consumption | 750W/m² |
| Avg.power consumption | 320W/m² |
| Working voltage | 110~220V |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | >1000frames |
| Refresh rate | >1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Operating temperature | -10℃ ~ +40℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

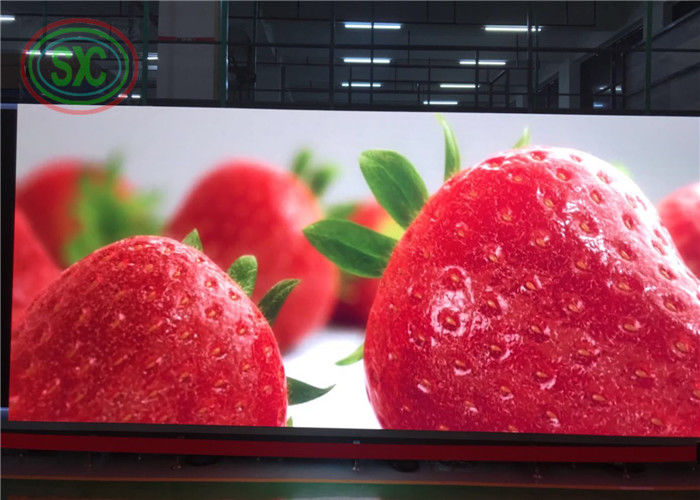

Cabinet photo
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Contact details
Sales representatives: Andy
Skype: Andy liu
Wechat:liu15179028073
Tel:+86-15797878183 (whatsapp)
E-mail:andy_he@scxled.cn
Web: www.scxled.cn
Contact Person: jack liu
Tel: +8615797878183
