Outdoor P10 IP65 Football Stadium LED Display Full Color 10000dots/Sqm

Outdoor P10 IP65 Football Stadium LED Display Full Color 10000dots/Sqm

Brand Name:	SCXK
Model Number:	P10
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/CB

LED Chip::

Nationstar

Pixel Dots:

10000dots/sqm

Module Size:

320x160mm

Brightness:

5000-7000cd/sqm

Warranty:

3 Years

Cabinet Size:

960*960mm

Control System:

Novastar

LED Arrangement:

3 In 1 1R1G1B

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

P10 stadium led signs

Outdoor football stadium led display

Product Description

Die-Casting Aluminum Cabinet Outdoor Full Color IP65 LED Display Screen Football Stadium Perimeter

Product Specifications

Attribute	Value
LED chip	Nationstar
Pixel dots	10000dots/sqm
Module size	320x160mm
Brightness	5000-7000cd/sqm
Warranty	3 years
Cabinet size	960*960mm
Control system	Novastar
LED arrangement	3 in 1 1R1G1B

Outdoor Football Stadium Ground LED Screen P10 Advertising Perimeter Display

Stadium LED Display Features

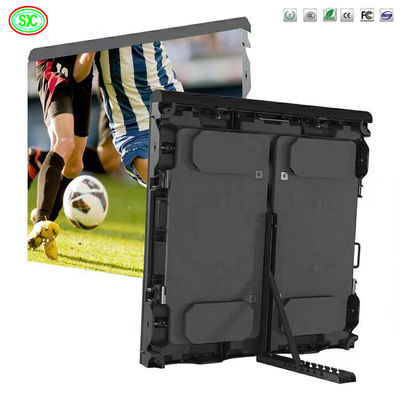

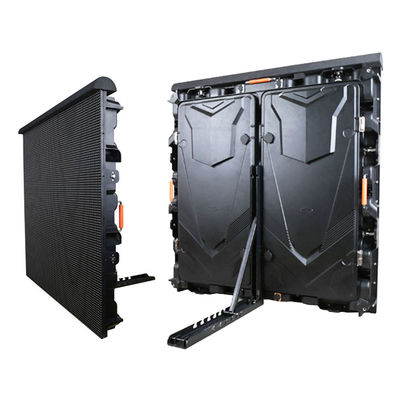

The SMD Sport Field LED Screen features integrated pull-down rear back support brackets enabling easy transportation in flight cases and simple installation. Simply pull down the brackets to the floor and the sport field LED screen is securely supported.

Premium Quality Construction

All chips are sourced from leading global suppliers. We maintain strict quality control with LED chips provided by Epistar and quality ICs from MBI, TMS, PWM and Mingyang.

Advanced Control System

The display features Novastar control system ensuring high-quality output, excellent resolution, fast loading times and high refresh rates. Known for its stability and reliability, it's ideal for various advertising applications.

Technical Specifications

Specification	Details
Model	Outdoor SMD P10
Resolution	10mm
Pixel configuration	1R1G1B
Pixel density	10000/m²
Module resolution	16x16
Module size	160x160mm
View distance	10-500m
White balance brightness	>8000cd/㎡
Color temperature	6500K-9500K
Viewing angles	Horizontal: 120°, Vertical: 60°
Frame rate	60Hz
Refresh frequency	>4200Hz
Working temperature	-20°C to 45°C
Power consumption	Max: <950W/㎡, Avg: <350W/㎡
Lifespan	100,000 hours
System protection	Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration

Production Process

Packaging & Shipping

Available in wooden cases or flight cases. Shipping options include sea, air or DHL transport.

Certifications

Our professional team provides comprehensive support for all your LED display needs.
