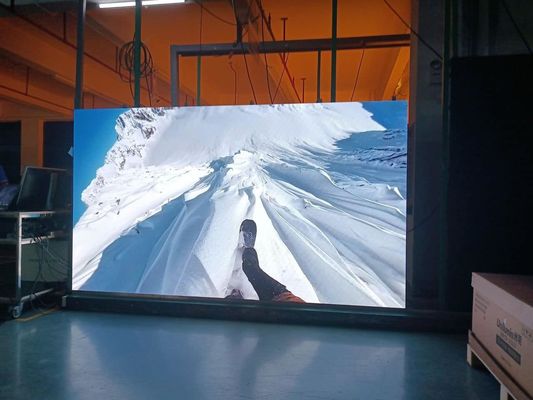

Fine Pixel Pitch High Refresh Rate P2.5 3840hz Advertising LED Screen led screen outdoor advertising

Brand Name:	SCX
Model Number:	P3
MOQ:	1Square Meter/Square Meters
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FC/CB/IECEE/SASO

Module Size:

192*192mm

Module Resolution:

64*64

Led Lamp:

Kinglight/NationStar

Refresh Rate:

3840hz

Pixel Density:

111111 Dots /sqm

Life Span:

100000Hours

Brightness:

≥1200cd/㎡

Driving Method:

1/32 Scan

Surface Evenness:

GAP< 1mm

Color Temperature Condition:

3500K～9500K,(can Be Adjustable)

Number Of Colors:

16.7 Trillion

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

P2.5 Advertising LED Screens

3840hz Advertising LED Screens

3840hz led advertising billboards

Product Description

Factory Hot Sale High Refresh Rate over 3840hz High Definition Front Installation Indoor Advertising P2.5 LED Screens

Our Advantages

1. OEM service, no minimum order quantity

2. Easy installation, regular products in stock

3. Free design drawings available upon request.

4. Remote control and adjustment available.

5. Wooden box or flight box, you decide.

6. Your reply will be responded to within 24 hours.

7. Fast delivery: usually 6-8 working days

8. Excellent R&D team, factory price, guaranteed product quality.

Advertising Led Screens Specification

Item	Technical parameter
Led Parameters	Luminous Intensity	R:620-630, G:520-535, B:465-475
	Wavelength	R:400-500mcd, G:1800-2200mcd, B:350-450mcd
	Test Condition	R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
Panel	Dimension	(W)192mm*192mm(H)
	Pixel pitch	3mm
	Pixel Density	111111 dots/M2
	Pixel configuration	1R1G1B
	LED specification	SMD 2020
	Pixel resolution	(W)64*64(H)
	Average power	18W
	Panel weight	0.5KG
Cabinet&Bracket	Bracket size	576mm576mm80mm
	Quantity of panel	3*3=9PCS
	Weight for bracket	1KG/M2
	Best viewing distance	120/90
	Best viewing angle	6-20M
	Working temperature	-20-+65
	Panel power supply	5V40A
	Screen power supply	AC220V—AC250V
	Max power	1000W/M2
	Average power	500W/M2
Technical parameter	Driving device	5024/16126 Constant current drive
	Drive type	1/16 Scanning
	Refresh frequency	300HZ/S
	Display color	409640964096
	Brightness	1100cd/M2
	Life span	100000Hours
	Communication distance	<100M

Advertising Led Screens Connection

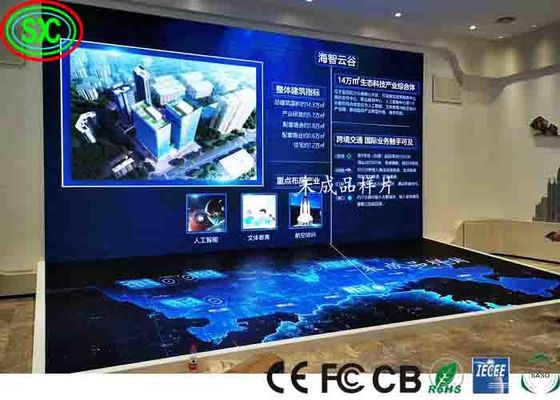

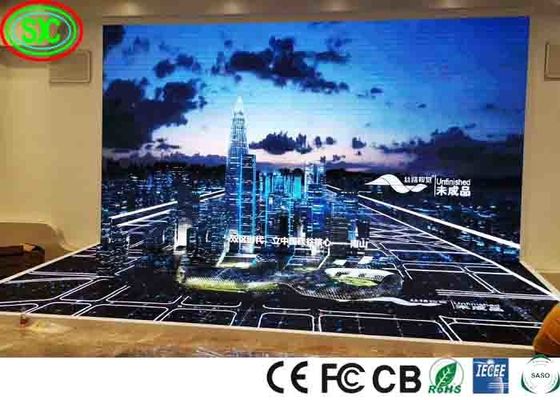

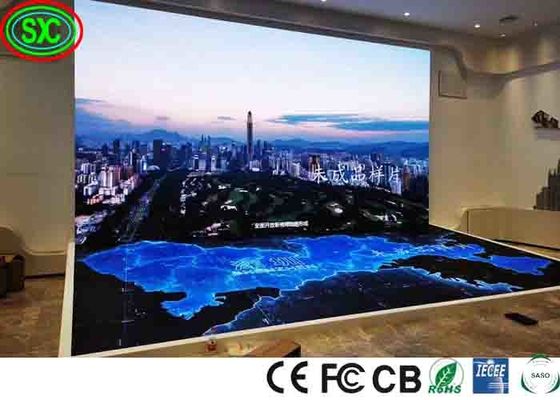

Fine Pixel Pitch High Refresh Rate P2.5 3840hz Advertising LED Screen led screen outdoor advertising 0

Fine Pixel Pitch High Refresh Rate P2.5 3840hz Advertising LED Screen led screen outdoor advertising 1

Production process

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

FAQ

What kind of payment terms you can accept ?

We can accept T/T and Western Union.

What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the

quality of our products continuity.

What is your delivery time ?

Within 7-35 days according to your area and quantity.

Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production

ensure

our led display’s competitiveness.
