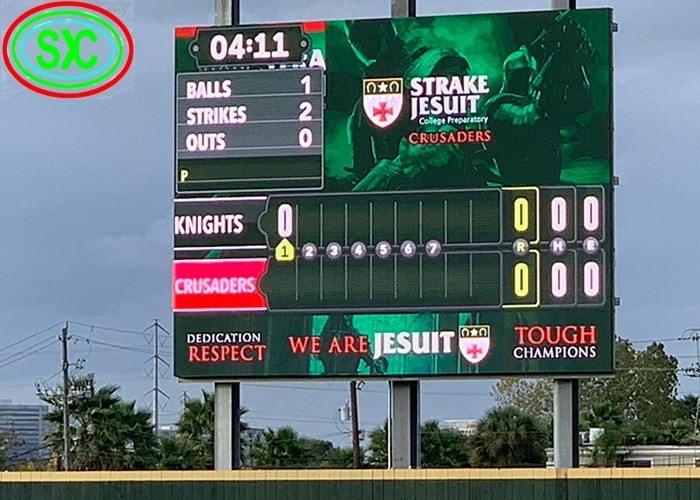

Smart outdoor P8 Stadium LED Display Fixed Installation

Smart outdoor P8 Stadium LED Display Fixed Installation

Smart outdoor P8 Stadium LED Display Fixed Installation
Smart outdoor P8 Stadium LED Display Fixed Installation
Smart outdoor P8 Stadium LED Display Fixed Installation
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Led Perimeter System Solution P8 Stadium Led Display Pixels: 8mm
Resolution: 15625 Dots Per Sqm Module Resolution: 32x16
Life Span: 100000 Hours Warranty: 3 Years
High Light:

P8 Stadium LED Display

,

P10 Stadium LED Display

,

P10 outdoor smd led display

Smart Outdoor P8 Stadium LED Display Fixed Installation

Smart outdoor P8 Stadium LED Display Fixed Installation 0



♦ Quick Detail

1. High refresh rate, High contrast ratio, High gray scale, bring you excellent display performance and camera shooting effect, effectively avoids the flickering phenomenon during shooting.

2. Die casting aluminum radiator design, super slim, cooling effect is better.

The design of the top roof protection, the selection of a soft mask and a soft material on the upper cover, can protect the LED lights without causing obvious injuries due to the collision of athletes.





♦ Product specification

outdoor P8
Resolution/mm 8mm
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 9-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <750W
Average power:/㎡ <250W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%





Smart outdoor P8 Stadium LED Display Fixed Installation 1



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



Smart outdoor P8 Stadium LED Display Fixed Installation 2







Our team will be forever here to offer you full supports !!!
