Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | 5mm | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Density: | 111111dots/m2 | Module Size: | 192x192mm |
| Driving Mode: | 1/16 Scan | Brightness: | ≥1500cd/m2 |
| Cabinet Size: | 576x576mm | Cabinet Material: | Die Casting Aluminum Cabinet |
| Warranty: | 3 Year | ||
| High Light: | 1R1G1B Stage LED Screens,3mm Stage LED Screens,1R1G1B led screen stage |
||

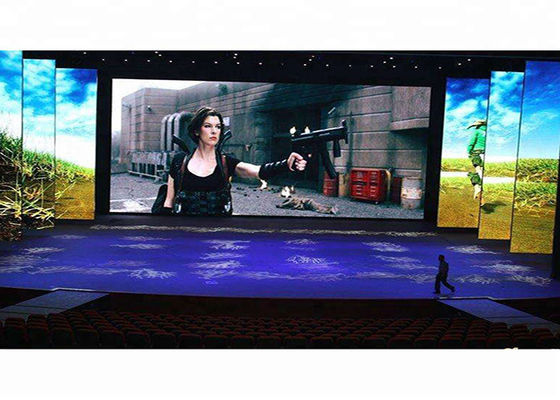

1R1G1B Flexible Led Screen Display Indoor Conference Stage 3mm Pixel Pitch
Product description
As we all know our human is an visual creature ,everyone enjoy this beautiful and colorfu world l, and led display screen can provide pelope much more Visual enjoyment,then p4 led display is one high density and quality product of it,let’s start a visual feast together!
Shenzhen ShiChuangXinKe Electronics Co.,Ltd, as a professional led display manufacturer, we provide personalized led display solutions for your case with reasonable price and guaranteed quality ! Our website: www.scxled.cn We are ready all the time, Enjoying your visiting and welcome to contact us !
Product specificaton
| Unit Module Specifications | |
| Item | P3 |
| Pixel Pitch | 3 mm |
| Pixel Configuration | 3in1 (1R1PG1B) |
| Module Size(MM) | 192*192 |
| Module Resolution(Dots) | 64*64 |
| Module Weight(Kg) | 0.3 |
| Package LED Mode | SMD2121 |
| Max Power(Watt) | 21 |
| Pixel Density(Dots/SQM) | 111'111 |
| Driving Method | Constant Current Driving |
| Scan Method(Scan) | 1/32 |
| Interface Way | HUB 75 |
| Brightness(CD/SQM) | ≥ 1500 |
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS..... |
| Unit Cabinet Specifications | |
| Cabinet Size(MM) | 576*576 |
| Cabinet Composing(PCS) | 9 |
| Power Supply Mode(Per Cabinet) | 5V60A |
| Cabinet Resolution(Dots) | 192*192 |
| Optimal Viewing Distance(M) | 3-300 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree |
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree |
| Relative Humidity | 10% ~ 95% |
| Power Supply Specifications | |
| Operating Voltage | AC:100V~120V AC:220~240V |
| Average Power(W/SQM) | 150-350 |
| Max Power Consumption(W/SQM) | ≤ 800 |
| Current | ≤ 20mA (single LED) |
| Control System Specifications | |
| Computer | Pentium4 or above P4 or above |
| Operate System | Win7-11/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main Technical Parameter Specifications | |
| Driving Device | Constant Current Driving |
| Refresh Rate | ≥ 1900-3840Hz |
| Gray/Color | RGB each 256 grade, can display 16.7color |
| Lifespan | ≥ 100000hours |
| Power Switch | RGX Automatic Switch |
| Display Mode | 2048*10241024*7681280*960mm |
| For more information please contact our sales. | |
Die Casting Aluminum Cabinet Details, This Cabinet Is Light, Thin And Is Easy To Intall For
Different Events.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Contact details
Project Manger: Andy
Skype: Andy liu Wechat:liu15179028073
Tel:+86-15797878183
E-mail:Andy_he@scxled.cn
Web: www.scxled.com
Contact Person: jack liu
Tel: +8615797878183
