Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen

Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen

  • Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen
  • Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen
  • Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen
  • Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen
Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen
Product Details:
Place of Origin: SHENZHEN
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000sqm per month
Contact Now
Detailed Product Description
Module Size: 250*250mm Module Resolution: 128*64
Module Weight: 0.3kg Life Time: >100000 Hours
Refresh Frequency: >1920Hz Brightness: ≥1200 Cd
Driving Method: 1/16 Contrast Ratio: ≥3000:1
Operating Temp.: - 10° —+55° Celcius Degree Cabinet Size: 500*500mm / 500*1000mm
Number Of Colors: 16.7 Trillion
Highlight:

P4.8mm SMD LED Display

,

P3.91 SMD LED Display

,

P2.604 led video display

SMD Indoor Full Color LED Display P2.604 P3.91 P4.8mm Fixed Installation Super Market Video Wall Slim Hotel Lobby Screen





Indoor Full Color Led Display Description



1. The density of ultra-light die-cast magnesium alloy is 2/3 of alloy and 1/4 of steel, which makes the cabinet lighter than steel and aluminum cabinets of the same size. Its specific strength and stiffness are also better than steel and aluminum alloys.
2. Ultra-thin magnesium alloy is easy to form, and can be used to manufacture high-end and thin products, making the cabinet thinner
3. Excellent shock absorption For example, at a stress level of 35MPa, the attenuation coefficient of magnesium alloy AZ91D is 25%, and that of aluminum alloy is only 1%. At a stress level of 100MPa, magnesium alloys AZ91D, AM60, and AS41 are 53%, 72%, and 70%, respectively, and aluminum alloy A380 is only 4%. Magnesium alloy is conducive to reducing noise.
4. Dimensional stability Temperature and time changes have little effect on the instability of magnesium alloy die-casting products, and the precision is higher after CNC processing. 5. Good heat dissipation performance Rapid cooling--good heat dissipation performance, protect module circuit 6. Good thermal performance Compared with other materials, magnesium alloy has better radiation protection and anti-interference ability, ensuring the normal operation of the screen. 7. Strong versatility. It can be processed according to the module drawings and used for outdoor and indoor use.




Indoor Full Color Led Display Speicification



Item
Parameter
Parameter
Parameter
Pixel Pitch
2.604mm-indoor
2.976mm-indoor
3.91mm-indoor
Pixel Configuration
1R1G1B / R:G:B=3:6:1
1R1G1B / R:G:B=3:6:1
1R1G1B / R:G:B=3:6:1
LED Lamp
Full color
Full color
Full color
Density
147456dot/m2
112896dot/m2
65536dot/m2
Module Size
250*250mm
250*250mm
250*250mm
Module Pixel
96*96=9216dot
84*84=7056dot
64*64=4096dot
Module Thickness
15mm
15mm
15mm
Module Weight
576g
576g
576g
Module Power
≤40W
≤40W
≤40W
Drive Valtage
DC5V
DC5V
DC5V
Module Electric Current
7.64A
7.64A
7.64A
Standard Caninet Size
500mm*500mm*65mm
500mm*500mm*65mm
500mm*500mm*65mm
Cabinet Weight
6.5KG
6.5KG
6.5KG
Brightness/Adjustment
≥1200cd/m2, Level 16- Automatic / Level 100-Manual operation
≥1300cd/m2, Level 16- Automatic / Level 100-Manual operation
≥1300cd/m2, Level 16- Automatic / Level 100-Manual operation
View Angle
≥160°(Vertical),≥160°(Horizontal)
≥160°(Vertical),≥160°(Horizontal)
≥160°(Vertical),≥160°(Horizontal)
Best View Distance
5-20m
5-20m
5-20m

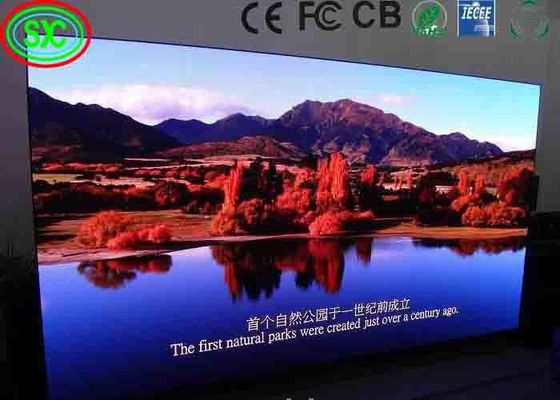

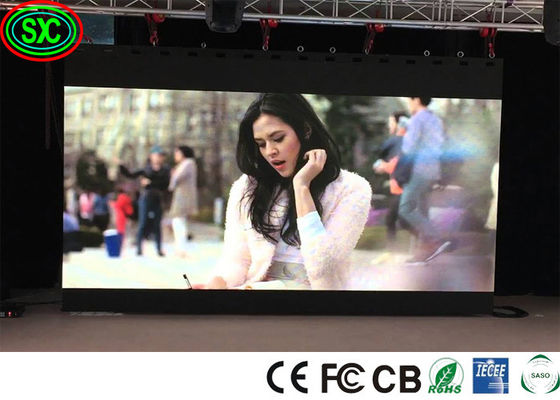

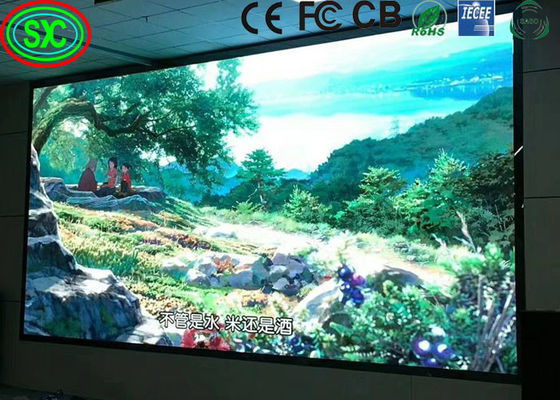

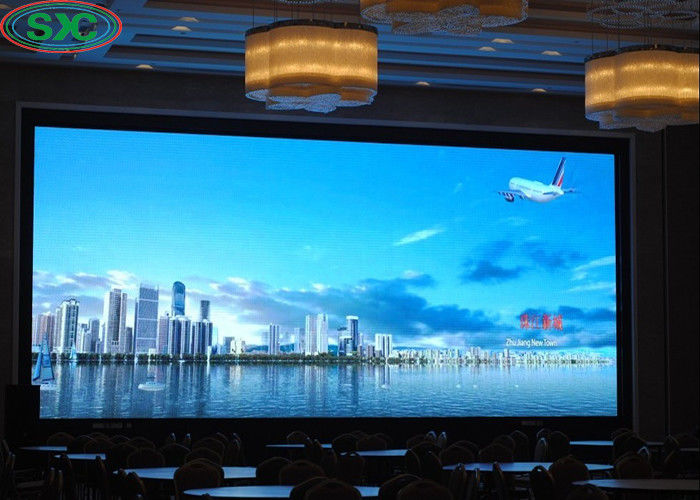

Indoor Full Color Led Display Pictures



Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen 0





Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen 1







Large No-Smear Fixed Ultra-Thin P2.604 P3.91 P4.8mm SMD LED Display indoor full color led display screen 2















Shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.







 Why choose us



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.

What’s more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have  built effective modular production.We always stick to promote the technical innovation and  reduce cost to benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as  emergency inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable  products to you.After-sales:We will track the products usage and then constantly perfect our  products.
