Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case. |
| Delivery Time: | 3-12 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 5200 sqm per month |
| Application:: | Outdoor | Model Number:: | P10 1R1G1B |
|---|---|---|---|
| Display Function:: | Picture;Text;Message;Number;Image;Animation;Graphics;Digital;Video | Screen Dimension:: | The Size Of Billboard Can Be Customized |
| Cabinet Material:: | Standard Water-proofed Steel | Cabinet Components:: | Module, Power Supply, Cable & Control Card |
| Suitable Viewing Distance::: | Above 10m | Brightness::: | >5500cd/sqm |
| Driving IC:: | MBI Driver | LED Chip:: | Epistar Chip |
| High Light: | 6000cd/sqm Advertising LED Panels,1R1G1B Advertising LED Panels,350W/M2 Outdoor Led Video Display |
||
O
Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 DIP 346 |
| Module size | 160x160mm |
| Module resolution | 16x16dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | ironed steel cabinet |
| Cabinet weight | 39.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥7000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 850W/m² |
| Avg.power consumption | 350 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥500,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

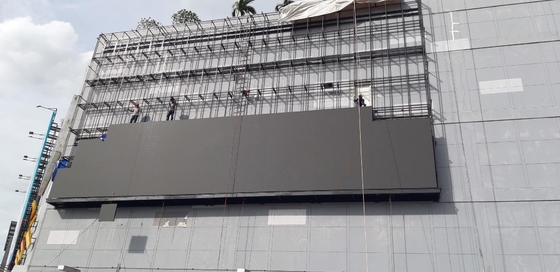

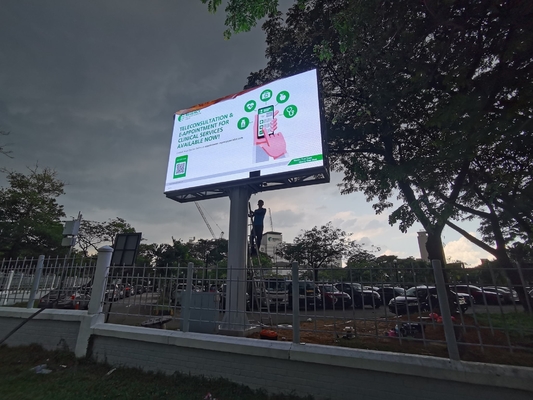

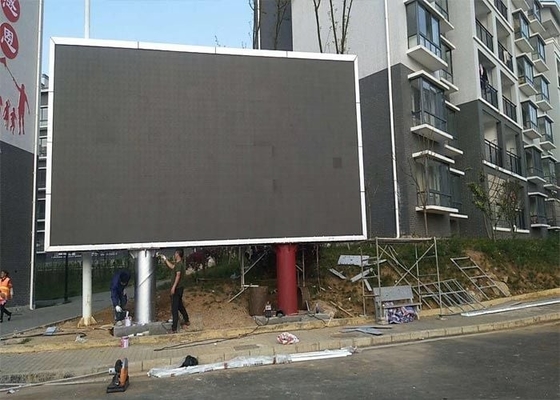

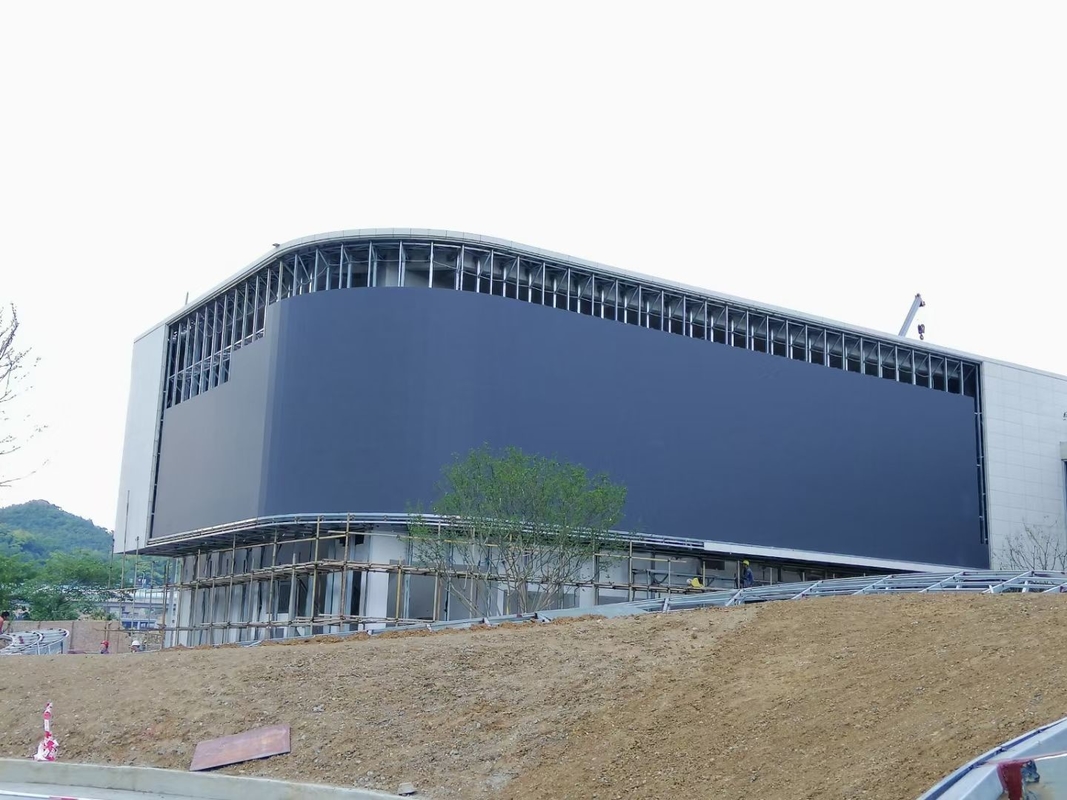

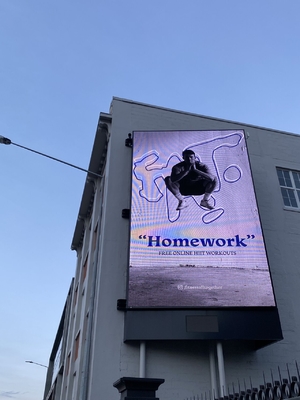

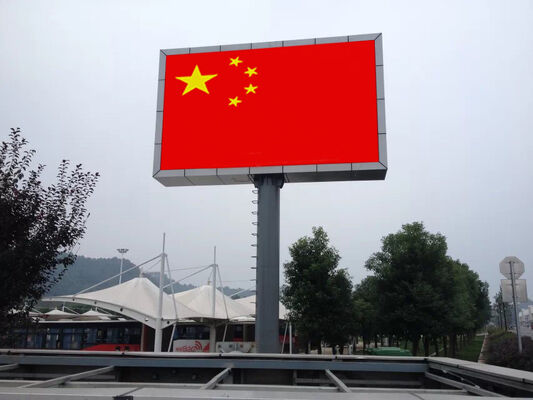

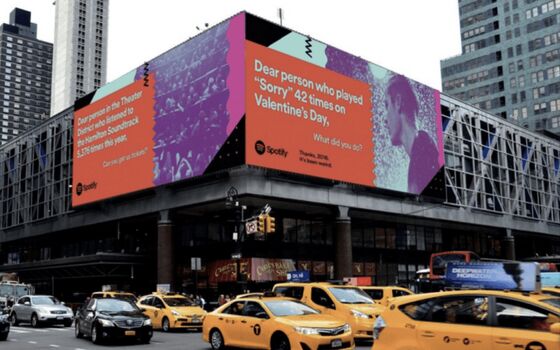

Our case
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
