Outdoor p6 Full Color LED Display with ironed steel cabinet construction offering sturdy support for fixed video wall installations

Outdoor p6 Full Color LED Display with ironed steel cabinet construction offering sturdy support for fixed video wall installations

Brand Name:	SCXK
Model Number:	P6
MOQ:	6 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5200 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/UL

Application::

Outdoor Advertising, Outdoor Advertising

Panel Size::

192*192 Mm

Brightness:

6000 Cd/sqm

Use Voltage::

AC 220V/110V±10%

Refresh Rate::

3840 Hz

Service:

Back Service

Lifespan:

≥100,000 Hours

Displaytype:

Full Color LED

Pixel Density:

27777 Dots/sqm

Cabinet Size:

960x960mm

Gray Grade:

16bit

Certificates:

CE RoHS FCC CCC UL

Brightness Adjustment:

0-100% 8 Levels

Installationtype:

Wall-mounted, Hanging, Or Fixed Installation

Packaging Details:

wooden case or flight case are available.

Highlight:

290W/M2 Led Advertising Board

SMD3535 Led Advertising Board

6500cd/Sqm Outdoor Led Display Screen

Product Description

P6 P8 P10 Front Service Outdoor Fixed Video Wall Display Billboard Sign Board Signage Advertising Screen

Pixel pitch	6mm
Pixel configuration	1R1G1B
LED type	3-in-1 SMD 3535
Module size	192x192mm
LED lamp	KingLight or Nationstar
Module resolution	32x32dots

Cabinet Parameter

Cabinet size	960x960mm
Cabinet material	Ironed steel cabinet
Cabinet weight	32.5kg
Ingress protection	Front/Rear IP65/IP54

Whole Screen Parameter

Pixel density	27777 dots/m²
Brightness	≥6000 cd/m²
Viewing angle	H≥120° V≥120°
Min.viewing distance	10m
Max.power consumption	750W/m²
Avg.power consumption	290 W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7millon colors
Gray level	65536
Refresh rate	≥1920Hz
MTBF	≥100,000 hours
Lifespan	≥50000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc.
Operating temperature	-10℃ ~ +60℃
Storage temperature	-20℃ ~ +60℃

Control System Parameter

Video signal (with video processor)	AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet etc.

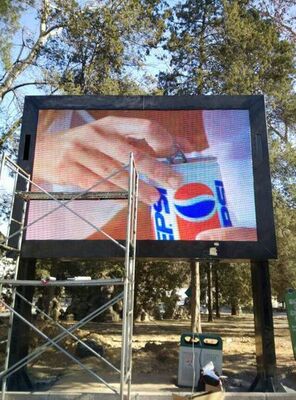

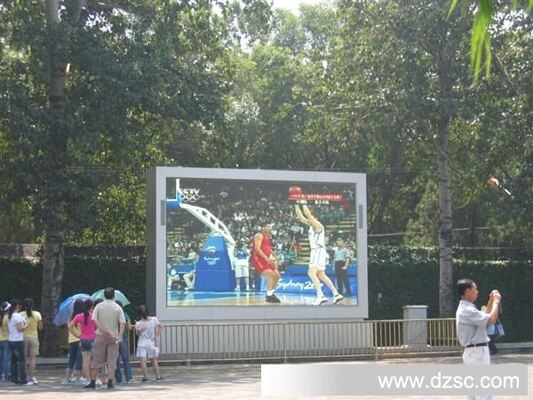

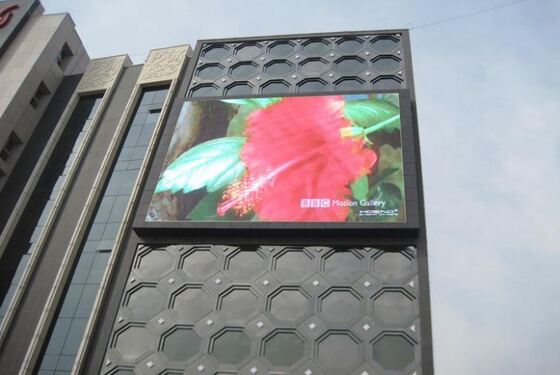

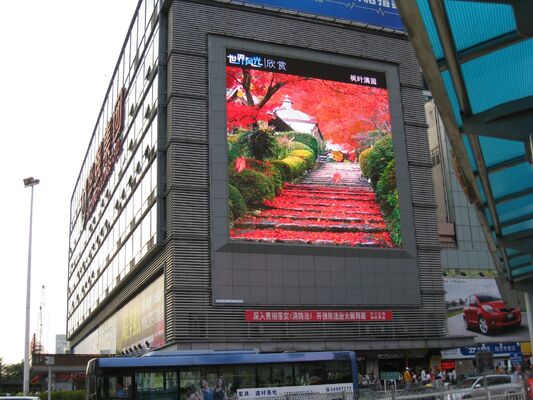

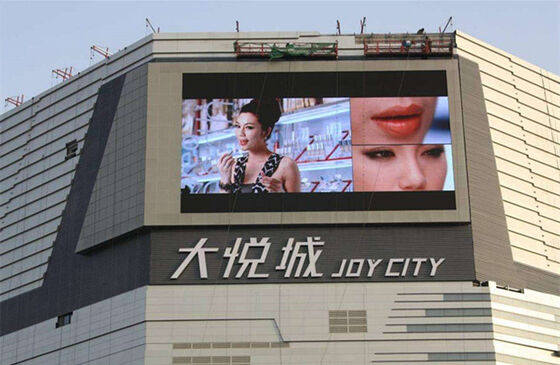

Our case

Outdoor p6 Full Color LED Display with ironed steel cabinet construction offering sturdy support for fixed video wall installations 0

Certificate
Outdoor p6 Full Color LED Display with ironed steel cabinet construction offering sturdy support for fixed video wall installations 2

Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

FAQ

Q1. Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, and average Production time is 7-15 working days after receiving the deposit.

Q3. Do you have any MOQ limit for led screen order?

A: Yes. Led module: 1 pcs; Led screen: 1 m2.

Q4. What's your payment term?

A: We accept T/T, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.

Q5. Is it OK to print my logo on led screen product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products. During the warranty period, we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
