Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P3.91 |
Minimum Order Quantity: | 1 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case or flight case. |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Pitch: | 3.91mm | IC&lamp: | MBI5124 SMD2121 |
---|---|---|---|
Pixel Density: | 65410dots/m2 | Module Size: | 250x250mm |
Cabinet Size: | 500x500mm Or 500x1000mm | Warrant: | 3years |
Brightness: | >1200cd | Power Supply: | G-energy |
High Light: | P3.91 Indoor Advertising Led Display,SMD2121 Indoor Advertising Led Display,1200cd/M2 Indoor Led Display Screen |
Standard panel P3.91 Indoor Advertising Led Display die casting aluminum 500*500/500*1000 mm
Product specifications
1. Same cabinet design for indoor & outdoor, rental & fixed installation application
2. Tthere are flat & curve LED Screen, and Rear & Front maintenance for choice
3. Two cabinet size: 500mmx500mm and 500mm*1000mm
4. Super high quality with popular design, stable long efficient working time,quality guranteed!
5. Its very easily replace the model & board in time; Avoiding more trouble and saving much time for after-salesmaintenance.
Module Parameter:
Pixel pitch | 3.91mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 2121 |
Module size | 250x250mm |
Module weight | 0.4kg |
Module resolution | 64x64dots |
Module quantity per cabinet | 4pcs |
Cabinet Parameter:
Cabinet size | 500x500mm,500x1000mm |
Cabinet material | die- casting aluminum |
Cabinet weight | 6.4kg |
Cabinet resolution | 128:128 dots |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 65410 dots/m² |
Brightness | ≥1200 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 4m |
Max.power consumption | 800W/m² |
Avg.power consumption | 280 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥60frames/s |
Refresh rate | ≥480Hz |
MTBF | ≥10000 hours |
Lifespan | ≥50000 hours |
Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +60℃ |
Operating humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Control System Parameter:
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

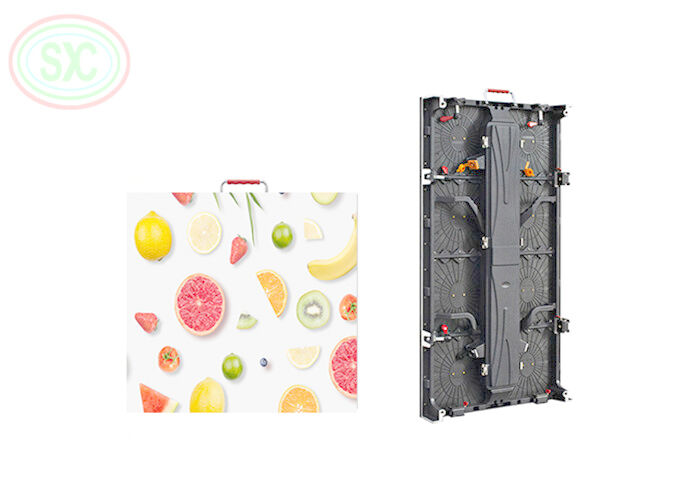

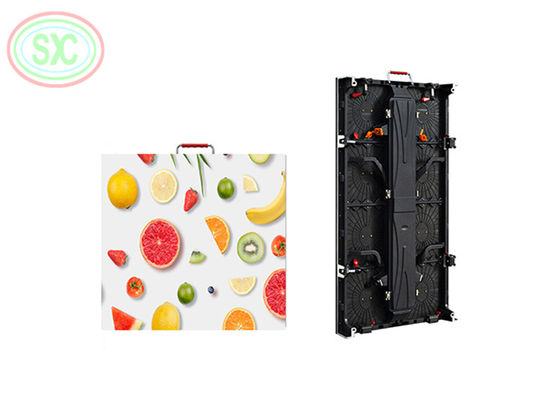

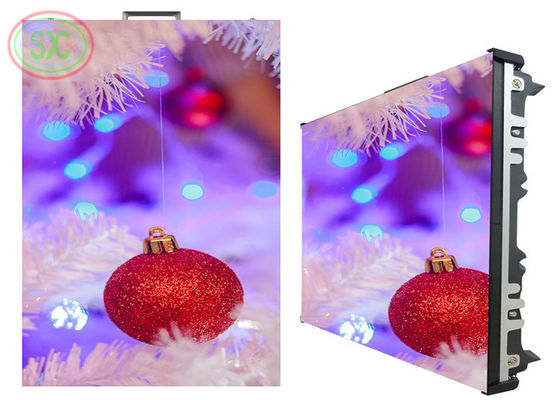

Cabinet details
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Flexible design and concepts according to your project requirements and cost budget Professional solution that supports your special business requirements.
Pre-sale Service
Providing pre-service instructions and product knowledge training.
Providing competitive products and sales consultation.
Providing instructions on designing and decorating exhibition halls.
Providing regional distribution guarantee.
In-sale Service
Developing customized products.
Providing product documents and qualification certification.
Assisting in business negotiation in projects according to specific conditions.
Assisting in on-site measurement.
After-sale Service
Providing perfect logistics system to guarantee punctual delivery.
Providing training and support for installation staff and after-sale service staff.
Providing training on product features, operation, repair, maintain of products.
Providing support for debugging and problem checking.
Providing two-year quality guarantee.
Tracking Service
Inspecting and re-checking the quality of the pre-sale service, in-sale service, and after-sale service
Quality Guarantee
Quality Guarantee: High standard, precision and zero defects
Seeking Perfection
Quality supervision involves each procedure with scientific arrangement and production scheduling, which facilitates the long-run development of the company. Both the ISO9001 quality certification standard and the ERP system are strictly implemented on procurement and production of raw materials, as well as package and storage of semi-finished products and finished products. The purpose is to comply with the international standard and make products and services better. Strict quality control is the key for TEKVISION’s continuous development, and is the strong power for expansion.
Constant Perfection
Striving for perfection is the guarantee for our high-quality products. TEKVISION combines process management and attention to details for continuous innovation management and professional dedication, and incessantly guides all staff to explore new and creative quality management methods. Our Mission: Starting with meeting new challenges one at a time.
Three-Years Quality Guarantee
During the three-years warranty period, if the product is damaged under normal operating conditions, TEKVISION promises to take corrective measures to maintain consumers' interests.
