Outdoor p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs

Outdoor p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs

Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 6 sqm
Price: negotiation
Packaging Details: wooden case or flight case are available
Delivery Time: 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3600 sqm per month
Contact Now
Detailed Product Description
Pixel Pitch:: 5mm Refresh Rate:: ≥3840Hz
Brightness:: ≥6000 Cd/sqm Cabinet: Steel Or Aluminum For Options
Protection Level: IP65 Or Higher Gray Scale: 16bit
Certifications: CB, CE, FCC, ISO, CB Mode Driving: 1/8 Scan
Cabinet Type: Fixed And Rental Voltage: DC5V
Application: Outdoor, Outdoor Fixed, Outdoor Rental Function: Advertisement|Video
Highlight:

6000nit Outdoor Advertising Led Display

,

SMD2727 Outdoor Advertising Led Display

,

40000dot/M2 Outdoor Led Video Display



High definition roadside advertising p5 led display outdoor



1.Clear picture without flicker and distortion

2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

3. Low consumption, stable performance, highly durable

4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually

5. 2 years warranty, easy to install & maintenance

6. CE, ROHS, FCC

7. MORE SPECIFICATIONS :



Module Parameter:

Pixel pitch 5mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2727
Module size 320x160mm
Module weight 0.4kg
Module resolution 64*32dots


Cabinet Parameter:

Cabinet size 960x960mm
Cabinet material iron or aluminum cabinet
Cabinet weight 28.5kg+/-0.05kg
Cabinet resolution 96:96 dots
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 40000dots/m²
Brightness ≥7000 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 10m
Max.power consumption 800W/m²
Avg.power consumption 300 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥600Hz
MTBF ≥10000 hours
Lifespan ≥50000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

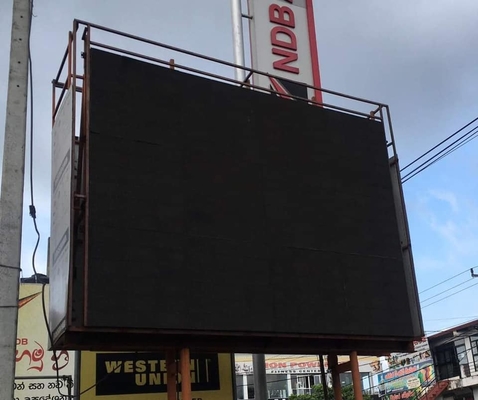

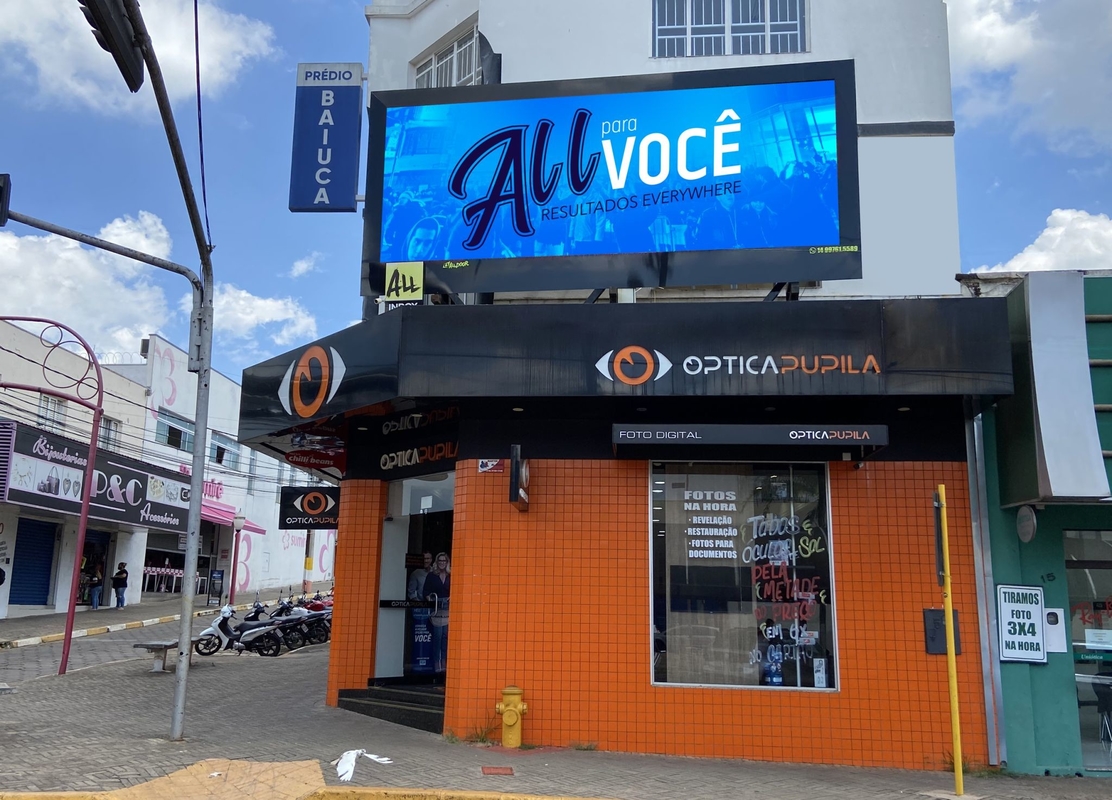

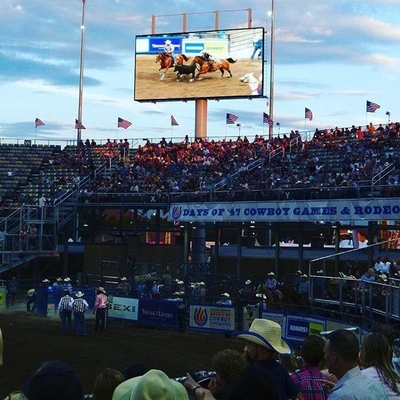

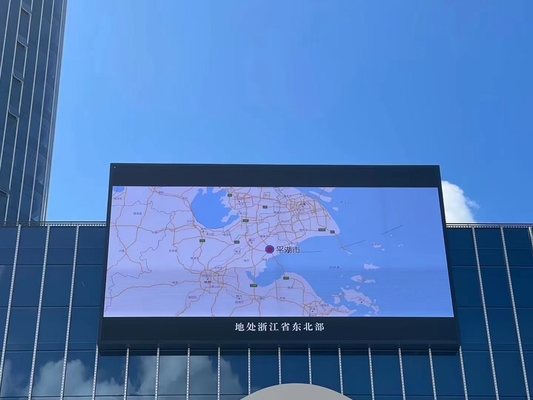

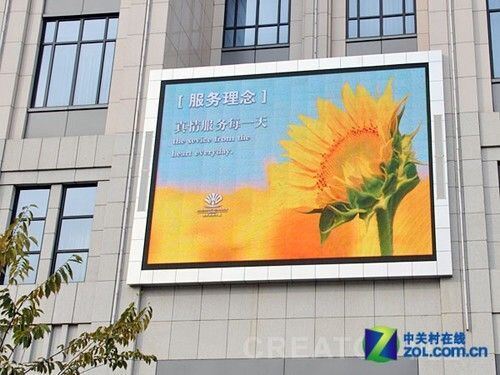

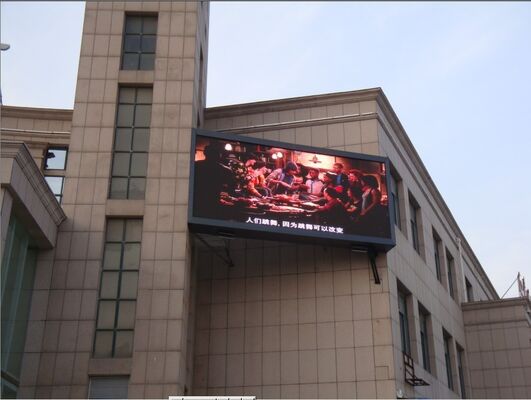

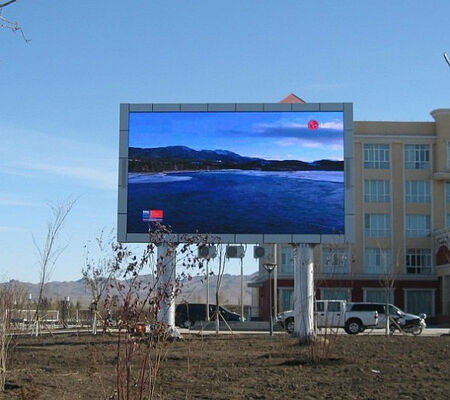

Our  case

Outdoor  p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs 0Outdoor  p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs 1

Video processor
Outdoor  p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs 2




Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led single dual color display, led indoor full color display; led outdoor full color display, led wireless car used screen etc. It can be used on the shopping more, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on.. We adapt many methods and very good after-sell service to sell our product all over the word. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to provide perfect product and service for our customers.



Outdoor  p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs 3



Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.




Outdoor  p5 Full Color LED Display Designed for Low Average Power Consumption of 300 Watts per Square Meter Reducing Operational Costs 4


FAQ

1. How long could I receive reply ?
You will get a reply by email within 24 hours and can give us phone call anytime.

2.How long do you provide warranty time ?
Different product offer different time frame warranty, but all product here we offer 2 year at least warranty

3.How long will it take to deliver goods ?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.



4.What about your pre-sale service and post-sale service?
For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!



5. How can you ensure the led display product quality?
Our led display screen quality is our core competence, for 7 years, what we rely on.We have each stardard process to make quality products.
If any quality failures within warranty time, we will refund you on alibaba.
