Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | plywood case or flight case. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 4300 sqm per month |
| Panel Size:: | 320*160MM | Use:: | Advertising Publish, Shopping Mall |
|---|---|---|---|
| Product Name:: | P10 Outdoor Led Screen | Display Function:: | Video Picture Graphic Text Message |
| Certificate: | CE/CCC/FCC/ROHS/ISO9001 | Refresh Rate:: | 1920-3840Hz/s HD |
| Life Span:: | 110000 Hrs | Certificate:: | CE/CCC/FCC/ROHS/ISO9001 |
| High Light: | advertising P10 outdoor led display,RGB P10 outdoor led display,HD P10 outdoor led display |
||
SCX LED High brightness 7500nits Outdoor P10 LED Display Giant Advertising Screens Fixed Installation p10
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 DIP 346 |
| Module size | 160x160mm |
| Module resolution | 16x16dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | ironed steel cabinet |
| Cabinet weight | 39.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥7000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 850W/m² |
| Avg.power consumption | 350 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥500,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

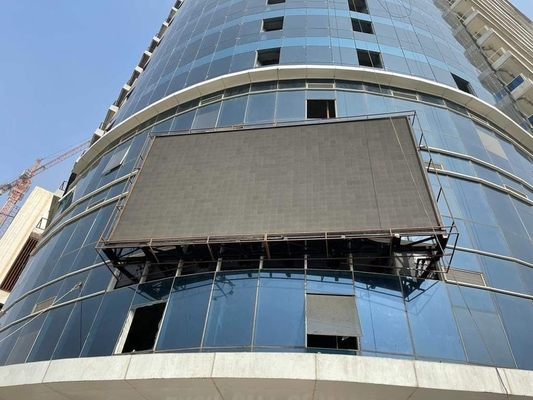

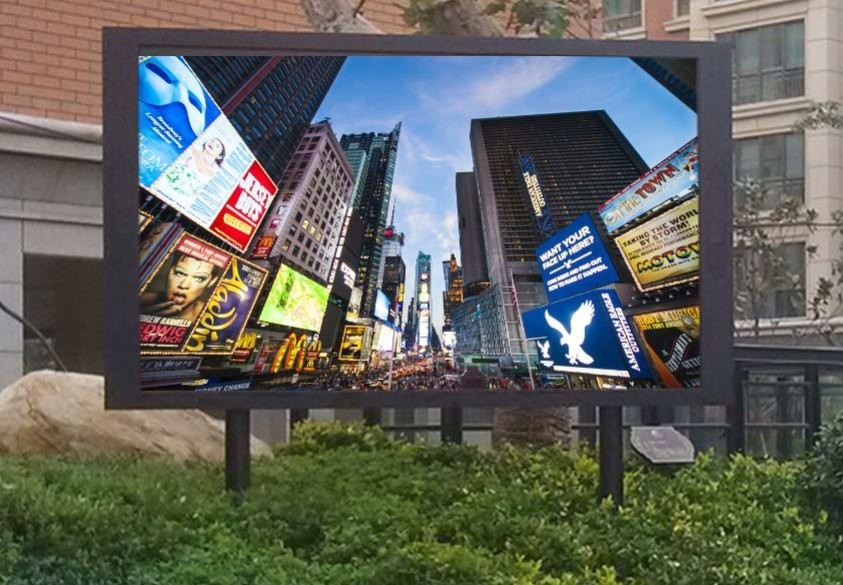

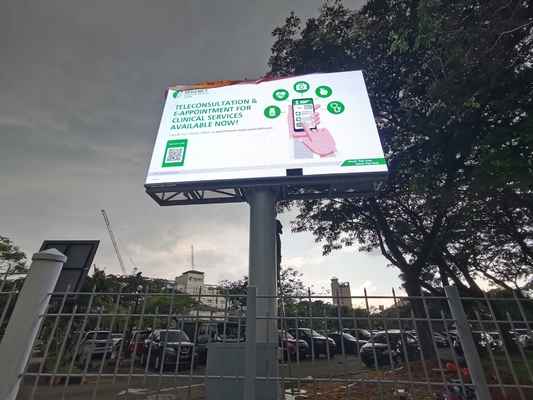

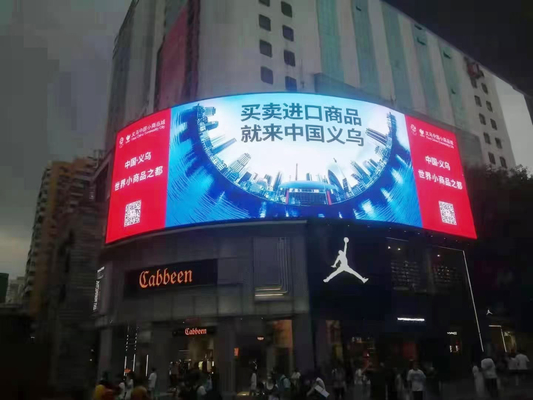

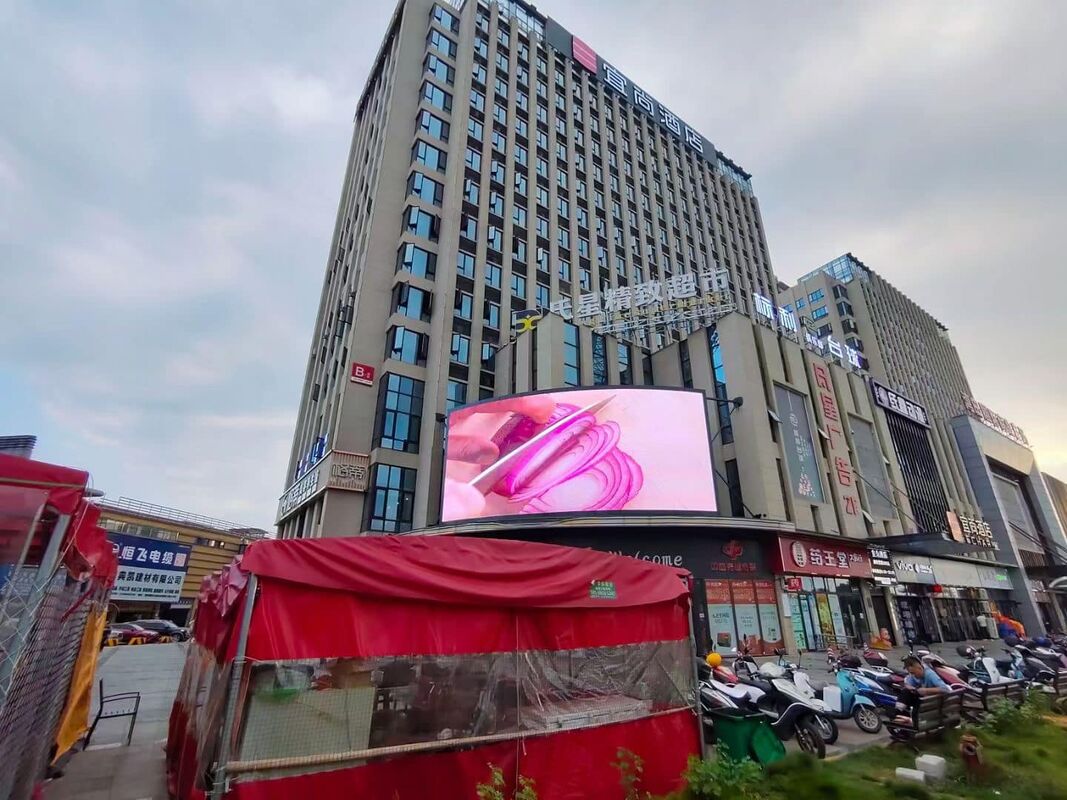

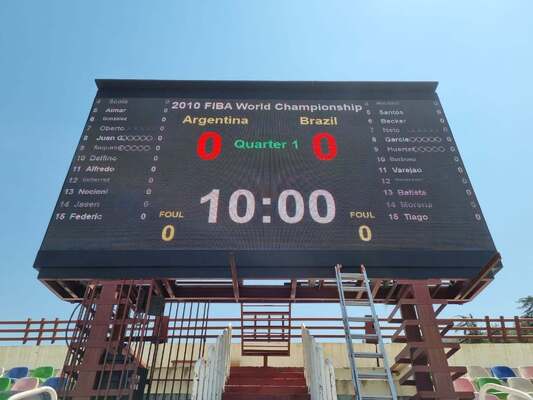

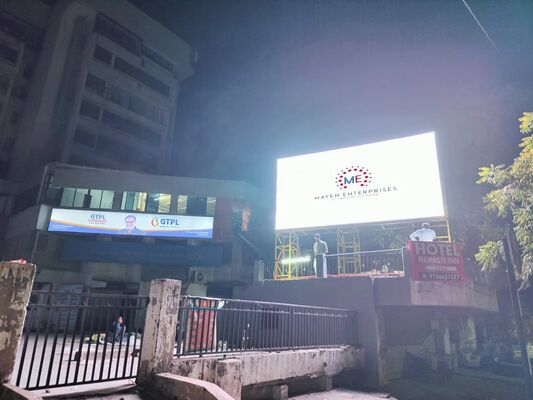

Our case
Why choose us
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
A: OEM/ODM is welcome,we have R&D team,UV printer /laser machine to meet you need.
⭐Q2:How about the quality of your products?
A:CE ROHS FCC MSDS approval,for more ;ocal certificates,please contact us for confirmation.
⭐Q3:What is the quality control method in your factory?
A: Quality first. QC department has professional quality assurance, experts always attach great importance to quality control.Each
product will be tested more than 3 times.
⭐Q4:When will the goods ship?
A: We have enough stock to ship out within 48hours,lead,time by express is 3-8days,by EMS is 15-35 days.Normally we ship by
Alibaba logistics,it is expensive,but safe,reliable,efficient and fast,if you need to send by other express,please contact us.
⭐Q5:How to place an order?
A: “Start Order “
“choose the quantity,colors”
“Filling your address”(remember to put your Phone Number&Post Code )”
Or you could "Send inquiry"to us,we will fast reply within 2 hours of work time.
⭐Q6:I'd like to visit your latest products and quotations, how can I get them?
A:Welcome to contact us directly by online messenger, Trademanager or Whatsapp for latest catalogues. Send us inquiry or direct
email is welcome too.
⭐Q7:Can you accept small orders?
A:Yes, small orders are accepted. Just let us know how many pieces you need.
⭐Q8:Can you supply me samples?
A:Yes, we can. Welcome to contact us for further information.
⭐Q9:If your product does not arrive within your delivery time, please let us know.
A: This has never happened in our company, because we have professional management personnel to comprehensively manage and control
every link of production, and we also train every employee.
⭐Q10:What will your company do with the defective product?
A: All of our productscome with a one-year warranty. If there are any problems during this period, we will take full
responsibility. You can return itany time you like.
We care about our valued cutomers, if you have any question, please feel free to contact us by Trademanger, Skype, QQ, MSN, Mob,or E-mail.
