Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P6 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case or wooden case are available. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | L/C, Western Union, MoneyGram |
| Supply Ability: | 5500sqm per month |
| Product Name:: | Outdoor P6 Led Display For Rental | Module Size:: | 192*192mm |
|---|---|---|---|
| Pixel Pitch:: | 6mm | Pixel Density:: | 27777dots/sqm |
| Brightness:: | 6500cd/sqm | Cabinet Size:: | 576*576mm |
| Material:: | Die-casting Aluminum | Life Span:: | 100000hours |
| Warranty:: | 2years | Certificate: | CE ROHS FCC |
| High Light: | p6 led video wall,27778 dots/m² outdoor rental led display |
||
SCX LED P6 led display screens full color outdoor waterproof large video wall led display
1.Direct view LED video wall technology is becoming increasingly popular due to its ability to deliver seamless images,
scalability to any size or shape, and excellent optimal characteristics that make video wall content look great from any angle.
2.Recent LED is a market leader in fine pitch LED Display Wall solutions with many marquee installations around the globe.
We provide a wide range of LED displays from high resolution indoor video walls to solutions for the biggest outdoor public
and sporting venues.
3.Product is high brightness, high refresh, high IP rating, applicable to outdoor media and advertisement occassions.
We have more products for you :
P2.5 outdoor/indoor led wall
P2.976 outdoor/indoor led wall
P3 outdoor/indoor led wall
P3.91 outdoor/indoor led wall
P4 outdoor/indoor led wall
P4.81 outdoor/indoor led wall
P5 outdoor/indoor led wall
P5.95 outdoor/indoor led wall
P6 outdoor /indoor led wall
P6.25 outdoor /indoor led wall
P8 outdoor /indoor led wall
P10 outdoor/indoor led wall
Module Parameter
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3528 |
| Module size | 192x192mm |
| LED lamp | KingLight or nationstar |
| Module resolution | 32x32dots |
| Module quantity per cabinet | 9pcs |
Cabinet Parameter
| Cabinet size | 576x576mm |
| Cabinet material | die casting aluminum |
| Cabinet weight | 10.4kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 27778 dots/m² |
| Brightness | ≥6000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 6m |
| Max.power consumption | 750W/m² |
| Avg.power consumption | 300 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥480frames/s |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100,000 hours |
| Operating temperature | -10℃ ~ +40℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

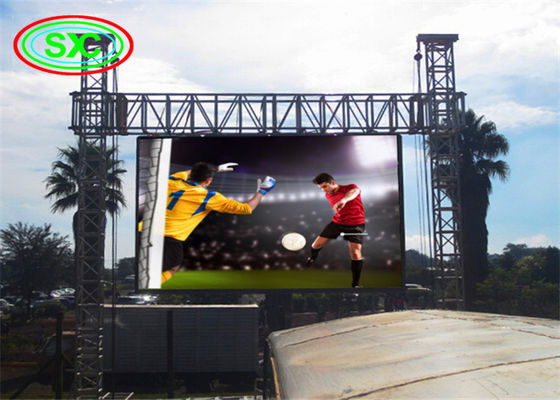

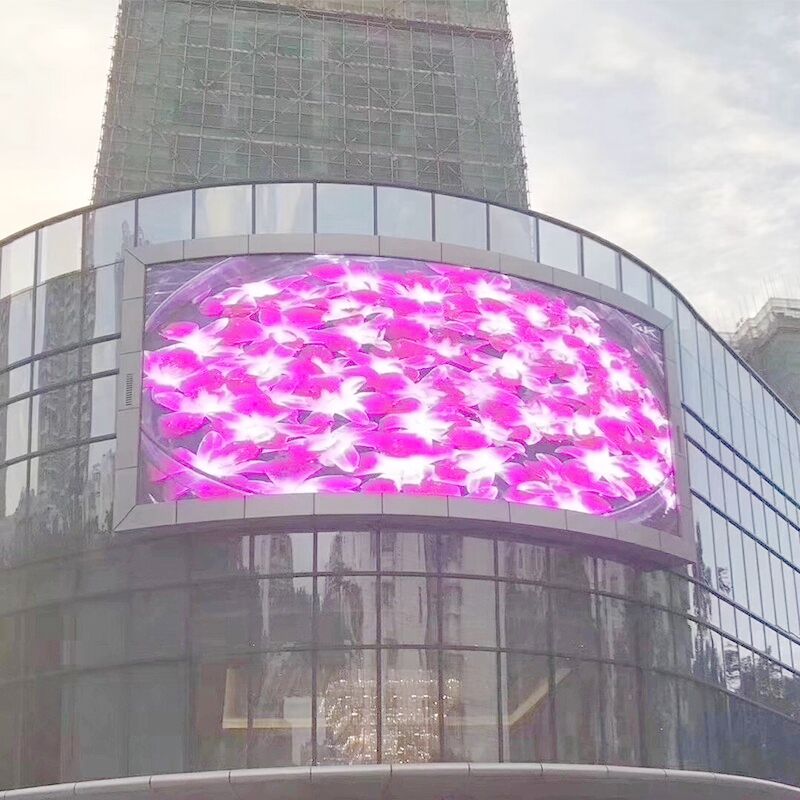

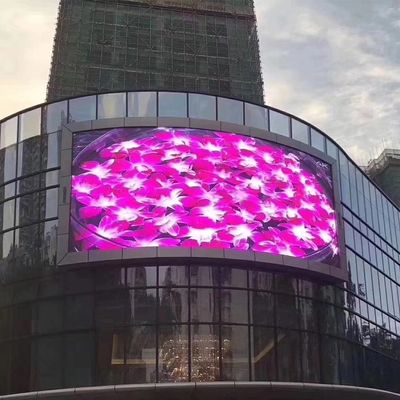

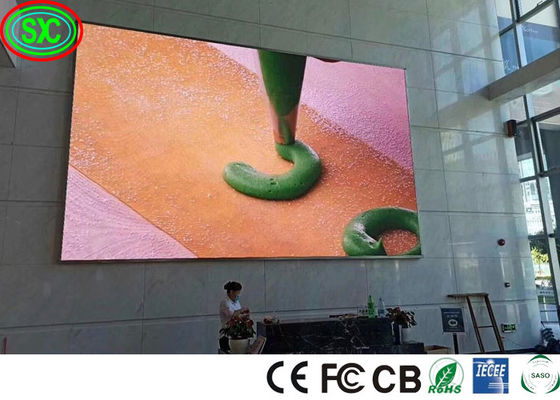

Our case
Cabinet detials
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
