Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P10 |
Minimum Order Quantity: | 13 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case or flight case are available. |
Delivery Time: | 3-12 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 4300 sqm per month |
Application:: | Outdoor Advertising | Color:: | Full Color RGB |
---|---|---|---|
Pixel Density:: | 10,000 Dots/m2 | LED Lights:: | SMD 3535 |
Module Size:: | 320mm*160mm | Cabinet Size:: | 960mm*960mm |
Cabinet Resolution:: | 96*96 | Brightness:: | 7000~7500cd/m2 |
Refresh Rate:: | 1920Hz | Display Function:: | Video, Animation, Graphics |
High Light: | p8 led video wall display,SMD3535 led video wall display,6500cd/Sqm outdoor led display screen |
(1) High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
(2) With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection with the connector added.
(5) High color uniformity and clear image can bring you a vivid audio visual effect.
(6) Both front and rear access are available.
(7) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
(8) Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
(9) The maintenance of pixel and single led has been realized.
(10) Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
Module Parameter
Pixel pitch | 10mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 3535 |
Module size | 320x160mm |
LED lamp | KingLight or Nationstar |
Module resolution | 32x16dots |
Cabinet Parameter
Cabinet size | 960x960mm |
Cabinet material | Ironed steel cabinet |
Cabinet weight | 32.5kg |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 10000 dots/m² |
Brightness | ≥5500 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 10m |
Max.power consumption | 900W/m² |
Avg.power consumption | 360 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥480frames/s |
Refresh rate | ≥2000Hz |
MTBF | ≥100,000 hours |
Lifespan | ≥50000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +60℃ |
Operating humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Control System Parameter
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

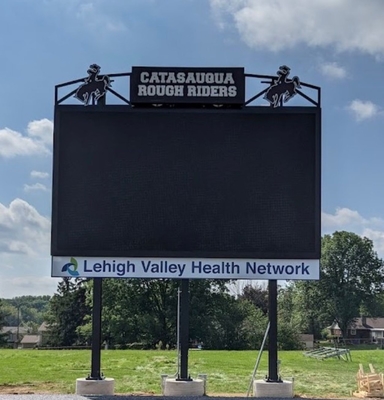

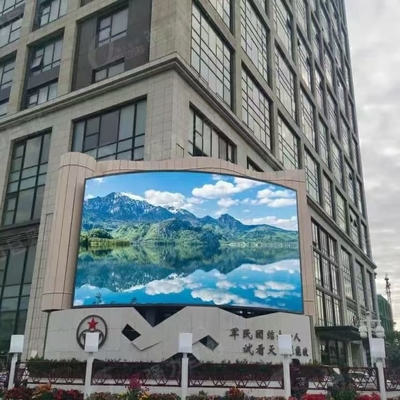

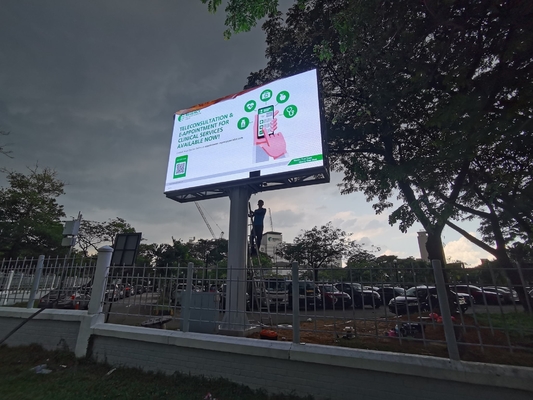

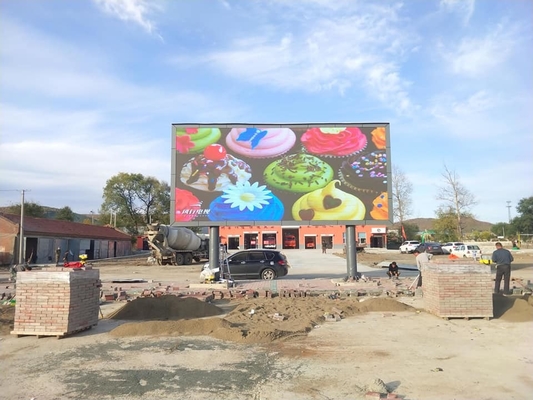

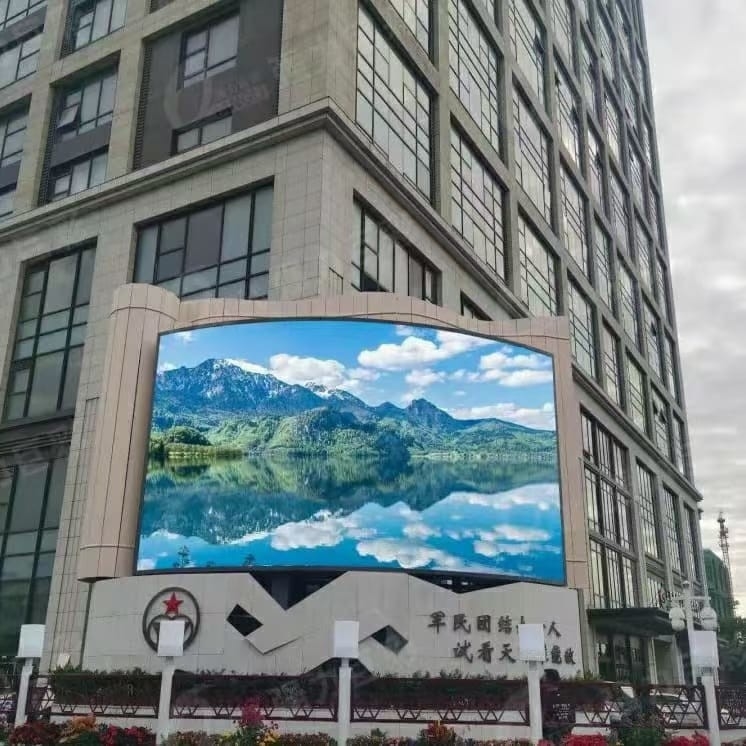

Our case
Certificate
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
EATURES
♦ Long lifetime: Adopting high quality LED lamps as core material and patent PCB design for the screen, it essentially ensures long lifetime fo the product.
♦Wide view angle: Highly wavelength consistency of LED lamp and 120°horizontal and vertical view angles guarantee viewers can see the playing miages from any direction in front.
♦ Stable performanve: we make a spceial treatment of anti-electromagnetic wave and adopt distribution scan and modular design for the screen and it works more reliable and stables.
♦ Exquisite images:Nonlinearity correction technology makes the images exquisite clear, video images vivid and fidelity.
♦ Excellent flatness: percision design of module frame parts controls the deviation of beighbouring modules within 0.1mm and it has an excellent flatness without mosaic..
♦ High contrast:consistend deep black patent masks and black face lamps make the contrast higher and the color fresher.
♦ Live broadcast: It can support DVI,HDMI, 3G/HD/SC with SDI high definition display mode, suit for TV programes VCDprogrames, DVDprogrames and live broadcasting indoor .
♦ Easy installation: Modular design makes the installation and maintance easier.
♦ Good material:Adopting same levels of imported LED chips from taiwan, USA or Japan, high quality driving IC, low nosie power supply, which can guarantee the screen works mooth in the environment of -20 degree to 40degree.
♦ Multiple formarts :Customers can choose any one of display formats for the screen, it can supports TXT, graphoc, picture animation and video programe.
♦ Lacquer coating: Lacquer coasting can protect the PCB and relevant components from erosion of environment, it has the good resistance performance of low and high temperature, and excellent features of insulation, moisture proof, anti-creeping ,dustprrof,anti-corrosin.
♦ High shockproof performance: The cabinets must be tested for shockprrof performance before shipment to avoid poor contact because of loose of screws and disconnection of cables after ling line -haul.
