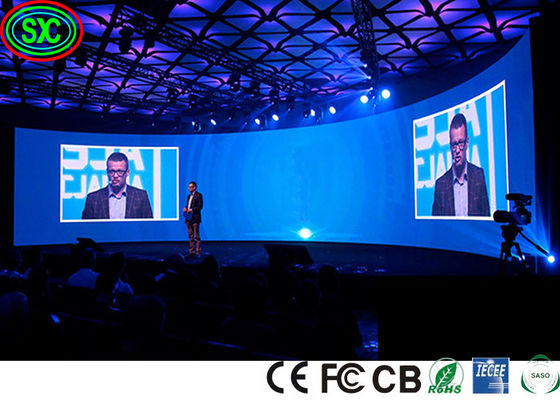

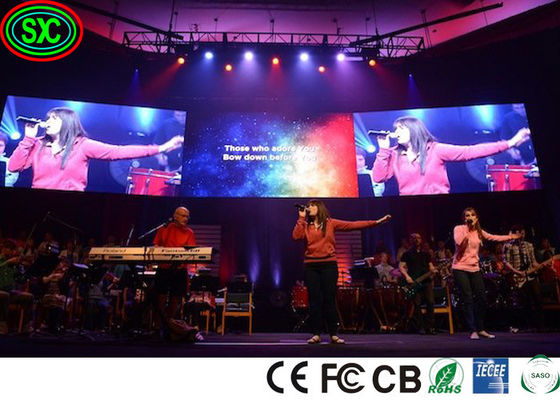

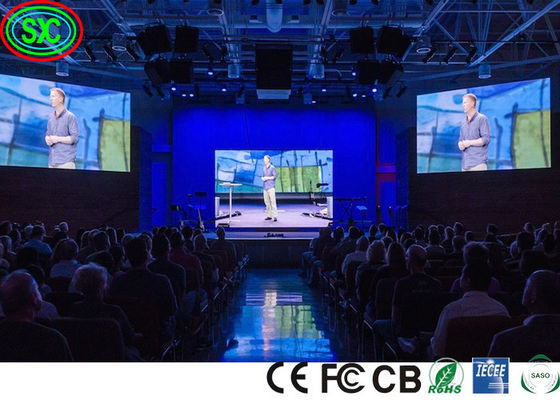

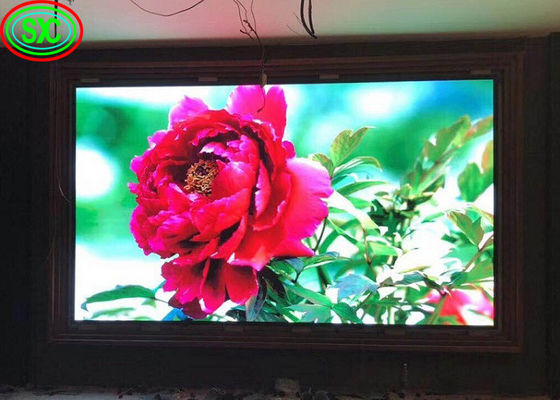

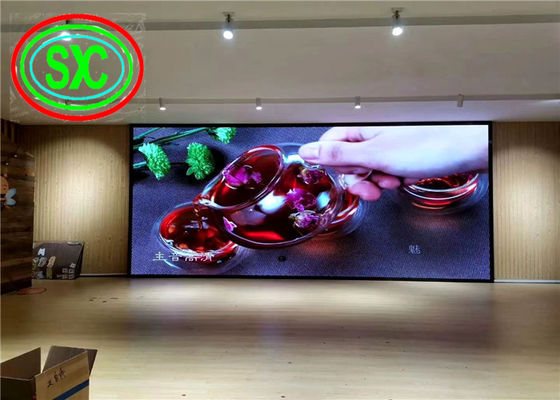

1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2

1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2

1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2
1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2

Product Details:

Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: plywood case,flight case, you choose what you like.
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Application:: Indoor, Indoor Stage &event Color:: Full Colour, Full-color
Panel Size:: 500*500mm Pixel Pitch:: 3.91mm
Screen Dimension:: Customized Size Certificate:: CE ROHS FCC
Warranty: 2 Years Brightness:: 1200cd/sqm
LED Chip:: 1921 Cabinet Size:: 500*500 &1000*500mm
High Light:

P3.91 Rental Led Advertising Display

,

1200cd/Sqm Rental Led Advertising Display

,

330W/M2 Indoor Led Video Wall

SCX LED  Rental Led Display HD Full Colour P3.91 Indoor with High Refresh 3840hz concert stage background led display


Features:

1.Double backup of the signal, and the flow-down backup is involved, Avoid the problems caused by network failure and Power Failure
2.Cabinet print position diameter can be reach at 6 cm, it is powerful for print client logo.
3.Two sets of quick locks on the left and right sides of the box to enhance the stability of the screen body
4.Axs Series card with 32 sets of data, standard (ic2038s) Refresh up to 4880.
5.Blind plug-in Constant Current plug-in 250 W power supply for charged operation
6.Full View mask, 0-180 degrees View angle
7.Cabinet thickness added stability, build long ultra-high screen body when screen body bottom stress area enlargement
8.Card Slot receiving card to instead of the needle, no longer feel trouble for the pin plug-in
9.A cabinet 4 pairs of quick locks, compared to the previous 3 pairs of locks, locked up more tightly,make real seamless connections Mechanical express lock, single hand operation
10. Two years warranty.


Module Parameter:

Pixel pitch 3.91mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 250x250mm
Module weight 0.35kg
Module resolution 64x64dots
Module quantity per cabinet 8pcs


Cabinet Parameter:

Cabinet size 500x1000mm
Cabinet material die- casting aluminum
Cabinet weight 11.5kg
Cabinet resolution 128x256 dots
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 65410dots/m²
Brightness ≥6500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 3.9m
Max.power consumption 890W/m²
Avg.power consumption 330W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥50000 hours
Lifespan ≥100000 hours
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, internet etc.

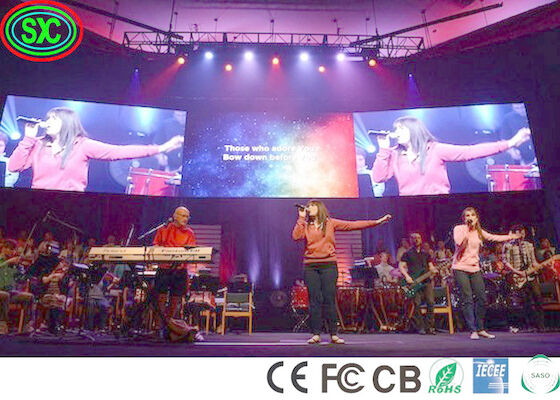

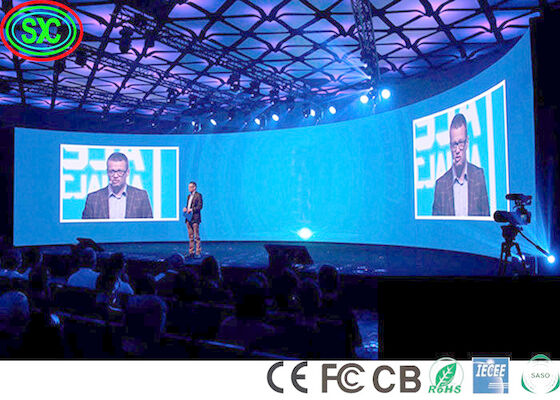

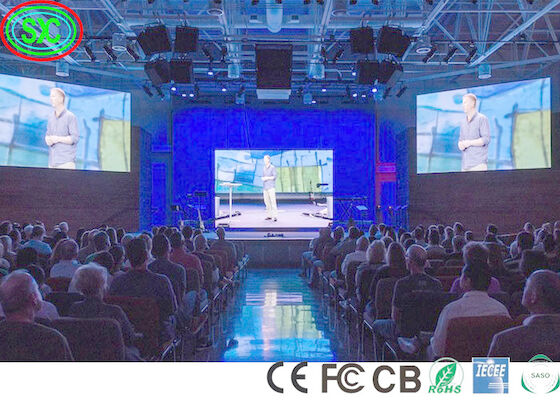

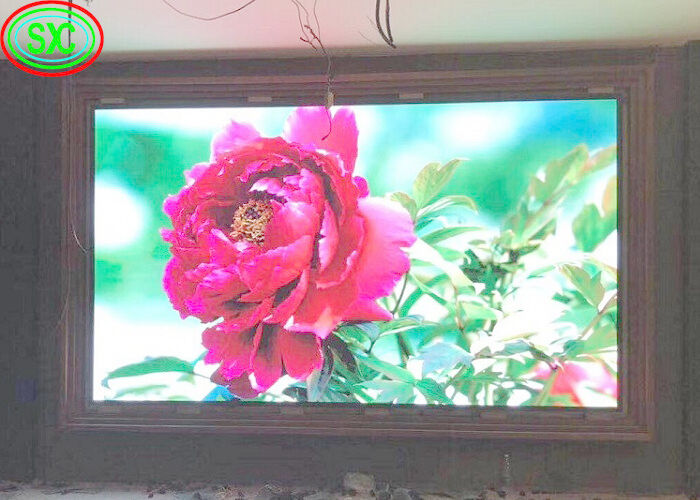

Our  case

1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2 01200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2 11200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2 21200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2 3


Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.



Certificate
1200cd/sqm P4.81 P3.91 Rental led Advertising Display 330W/m2 4
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.







Our service



Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
