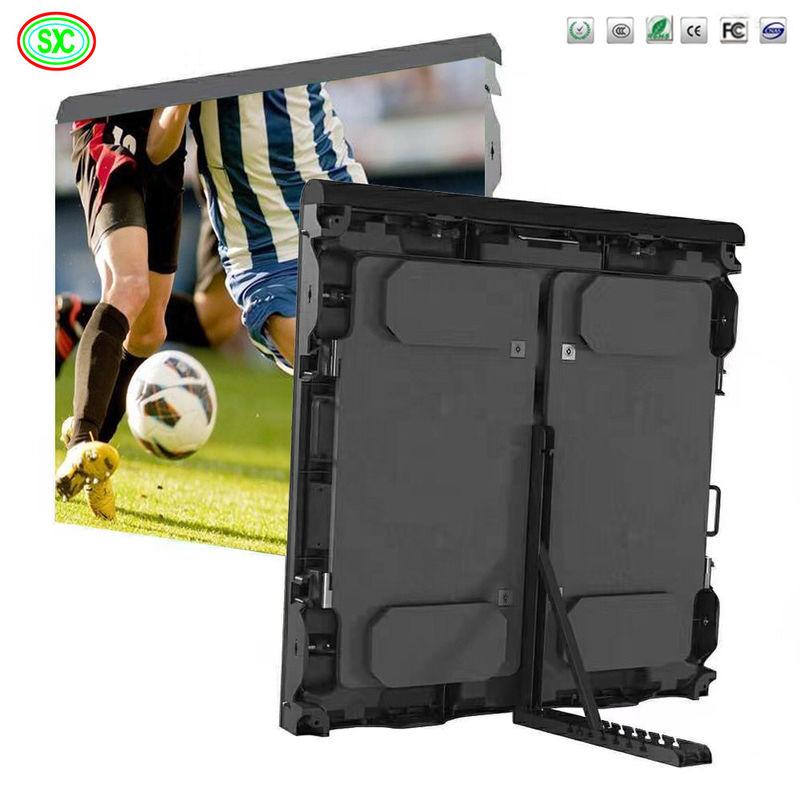

Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10

Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10

Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotation
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm per month
Contact Now
Detailed Product Description
Application: Advertising/footbal Match, Football Stadium Perimeter Color:: Full Color
Panel Size:: 960x960mm Pixel Pitch:: 10mm
Product Name:: Perimeter Led Display Brightness:: 7000cd/sqm
LED Chip:: Epistar NationStar Cree Nichia Cabinet Material:: Alumium
Pixel Configuration:: 1R/1G/1B
High Light:

7000cd/Sqm Stadium LED Display

,

900W/Sqm Stadium LED Display

,

P10 Stadium LED Advertising Billboard

SCX  LED  P10 outdoor football stadium perimeter led display with soft cover and mask

FAQ



Q1: What's the warranty of your LED Display Screen ?

A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your Pre-sale service and After-sale service?

A2: For Pre-sale service: We have a professional sales team and professional technical team who are     willing to answer your question 24 hours on line. We can offer a set of solution for your project!



For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.



Also, we can send engineers to your country if you need.



Q3: What’s your payment term? How long it takes to delivery?



A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.



Production time would be about 15-25 days according to your order quantity.

Q4: How can you ensure the led display product quality?

A4: We have nearly 10-year experience in producing Led Display with good reputation in this industry.

   We would do 24 hours ageing to promise 100% non-dead chips before shipment.



Parameter specification

model P10
Pixel unit module Pixel pitch(mm) 10
Pixel density (dots/sqm) 10000
LED type SMD
Module size(mm) W320×H160
Pixel composing RGB full color
Pixel unit screen screen size(mm) 960*960mm
module Resolution (nits) 32*16
Cabinet structure Water-proof
installation fixed on the back
screen material magnesium alloy
Protect degree IP65 front ,IP54 rear
  Viewing distance(m) 10~100m
Brightness(cd/sqm) 7000 cd/sqm or 7000 nits or more
Power consumption (w/sqm) Max 900W/sqm ,can be custom make 500W max
Driving IC 1/4 scan MBI Brand Driver
Refresh rate(HZ) ≥2000- 3000
Viewing angel(c) H120 V110
Other parameter Image adjustment contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processing Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformity The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray 65536
Color temperature/contrast Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting Distance The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input Signal RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control System PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time 20000 hours
Life span 100,000 hours
Out-of Control rate 0.0001
To floor drain current Less than 3.5MA
Control system Synchronized
Operating Environment Temperature -20°C—65°C Optional

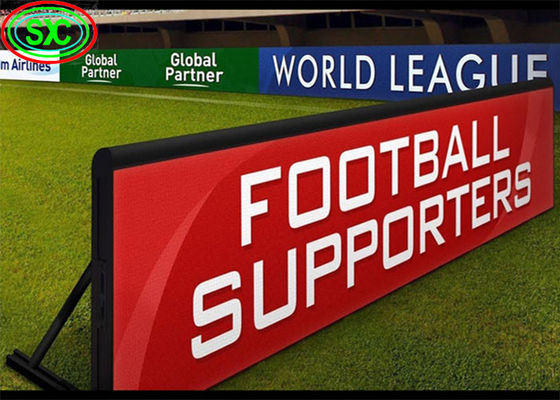

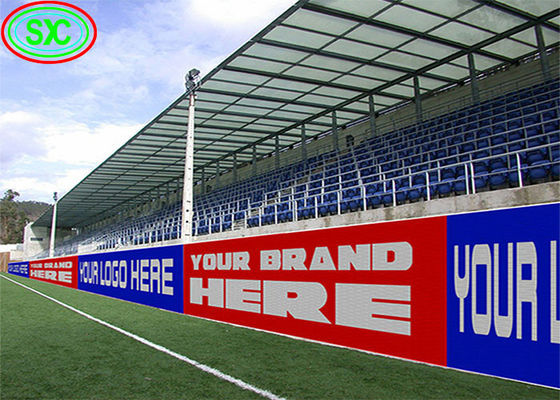

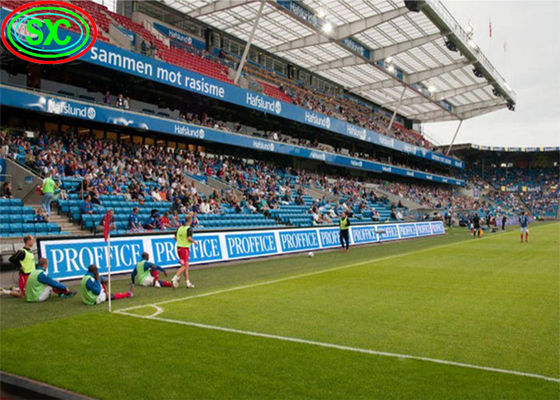

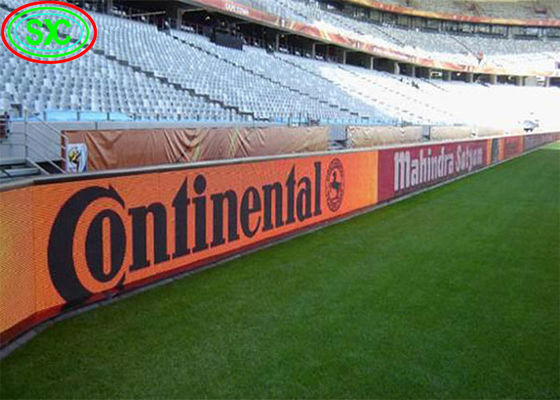

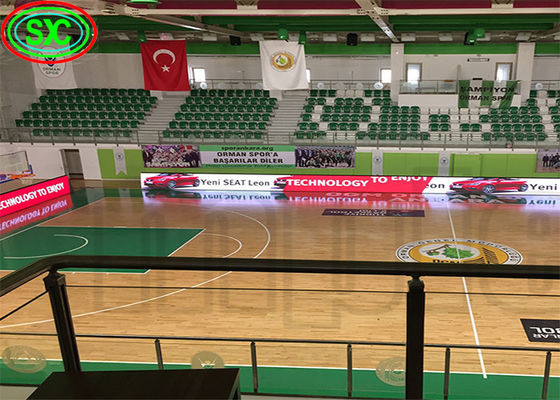

Our case

Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 0Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 1









Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)} outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led module/display.
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 2
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 3



Company profile

Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 4





Certificate
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 5


Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Football 900W/sqm 7000cd/sqm Stadium LED Display P5 P8 P10 6





Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
